54 13 150 Removing and installing rear cross-member
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove glass slide/tilt sunroof. Refer to 54 13 080 REMOVING AND INSTALLING COMPLETE GLASS SLIDE/TILT SUNROOF .
- Remove control unit omitted.
- Remove drive omitted. Refer to 67 61 517 REPLACING DRIVE WITH GEAR (REAR) FOR ACTUATING SLIDE/TILT SUNROOF (PANORAMIC GLASS SUNROOF) .

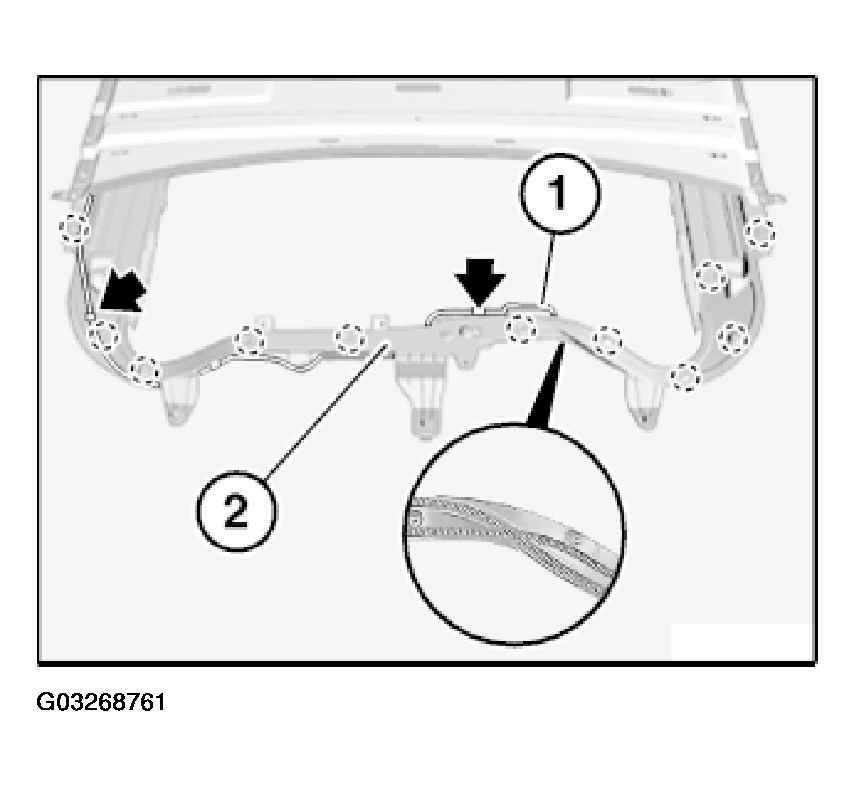

Release screws in marked area.
Feed cross-member (2) out of wiring harness (1) during removal.
Installation:
Pitch cables must be correctly laid diagonally in guide.
