54 10 030 Removing and installing mechanism for rear glass lid

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove complete glass slide/tilt sunroof. Refer to 54 13 080 REMOVING AND INSTALLING COMPLETE GLASS SLIDE/TILT SUNROOF .
Remove glass slide/tilt sunroof lid at rear. Refer to 54 10 175 REMOVING AND INSTALLING REAR GLASS SLIDE / TILT SUNROOF COVER .
Remove rear drip moulding. Refer to 54 13 105 REMOVING AND INSTALLING/REPLACING REAR DRIP MOULDING .
Remove drive with gearing. Refer to 67 61 515 REPLACING DRIVE WITH GEAR (FRONT) FOR ACTUATING SLIDE/TILT SUNROOF , or 67 61 515 REPLACING DRIVE WITH GEAR (FRONT) FOR ACTUATING SLIDE/TILT SUNROOF (PANORAMA GLASS SUNROOF) , or 67 61 517 REPLACING DRIVE WITH GEAR (REAR) FOR ACTUATING SLIDE/TILT SUNROOF (PANORAMIC GLASS SUNROOF) .

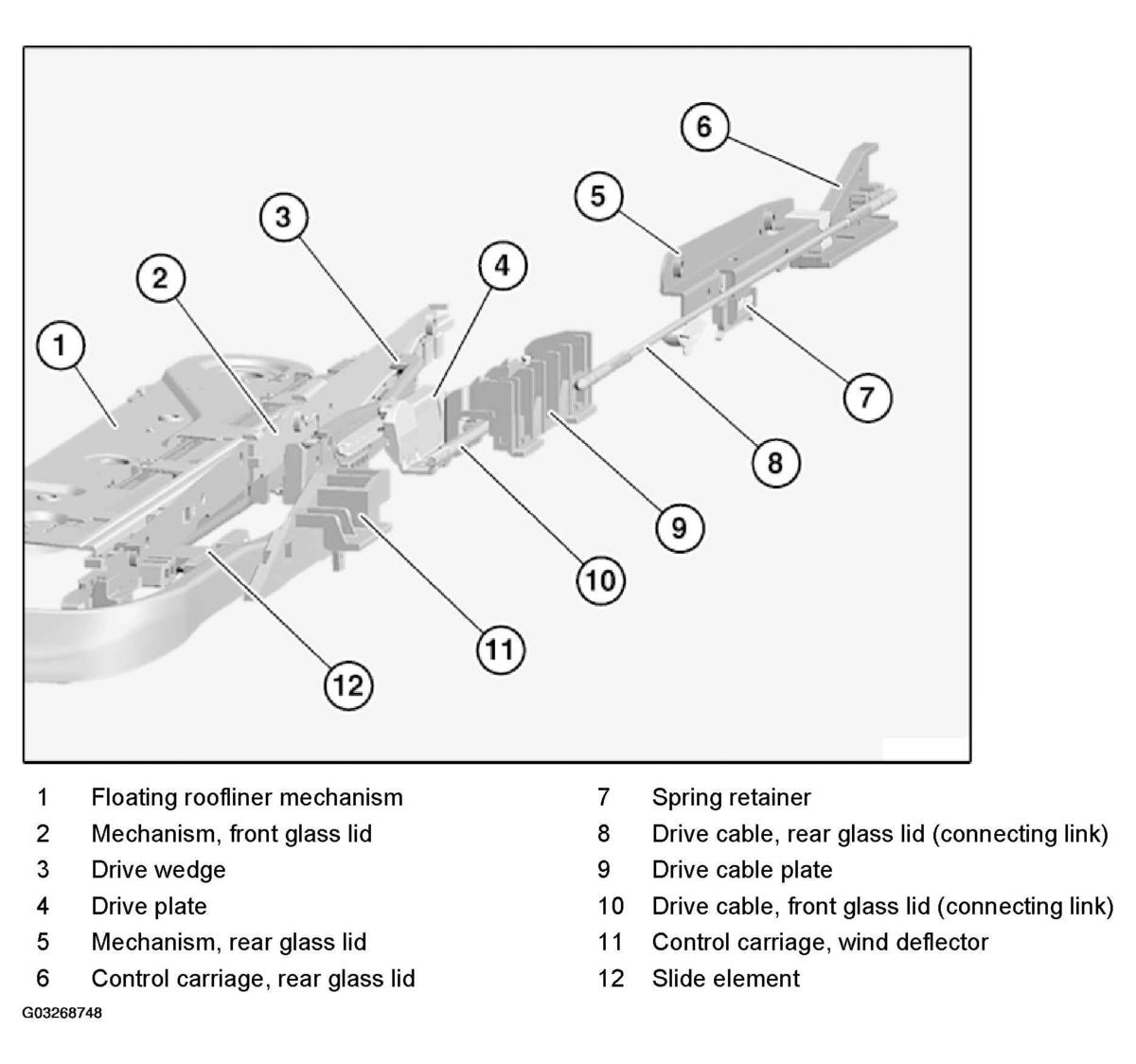

Overview Of Glass Lid Mechanism:

Fig 1: Removing Drive With Gearing

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Always replace mechanism for glass slide/tilt sunroof in pairs. If necessary, lightly grease guide channel.

NOTE: Drip moulding carrier cannot be removed without incurring damage.

Break out tabs with a screwdriver and lever out carrier.

Installation:

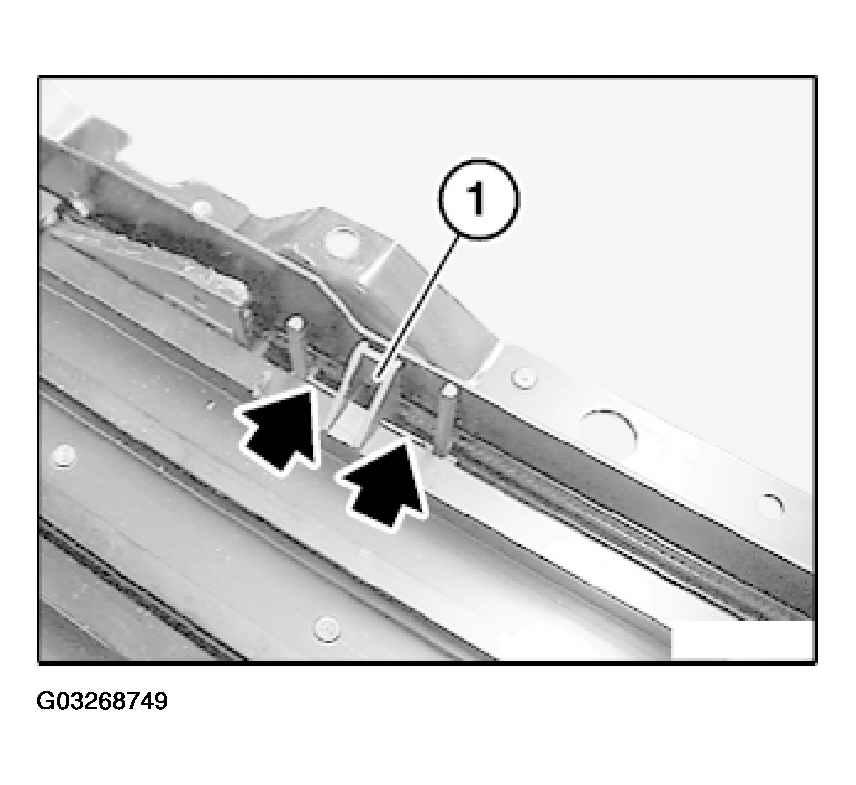

Replace drip moulding carrier and hook into place.

Fig 2: Replacing Drip Moulding Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

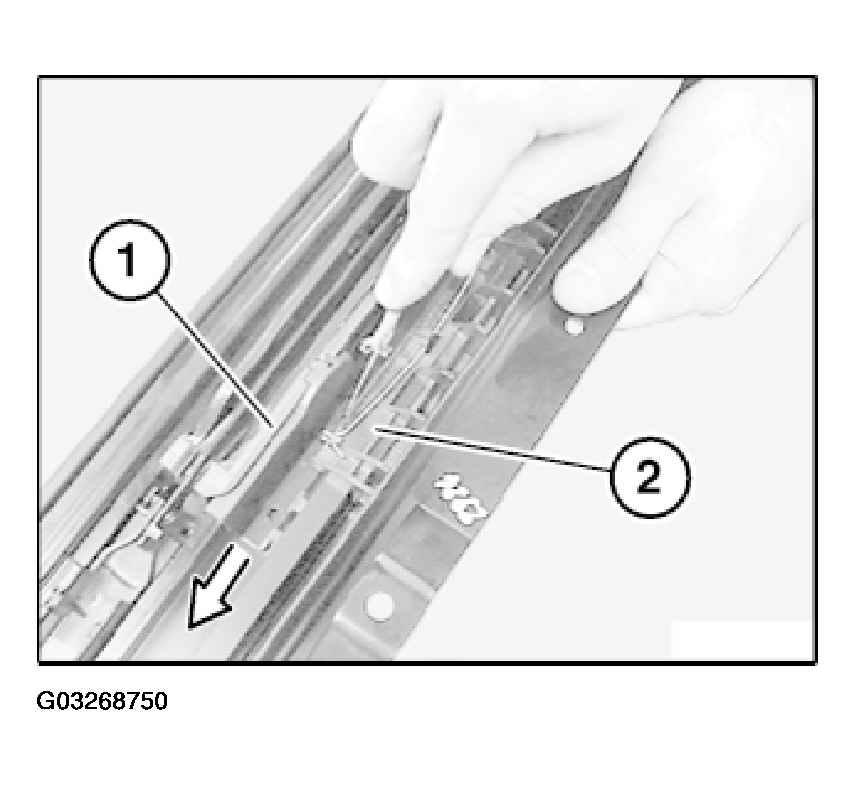

Slide front connecting link (1) towards rear past drive cable plate (2).

If front glass lid is installed, move mechanism with lid.

Fig 3: Aligning Front Connecting Link Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

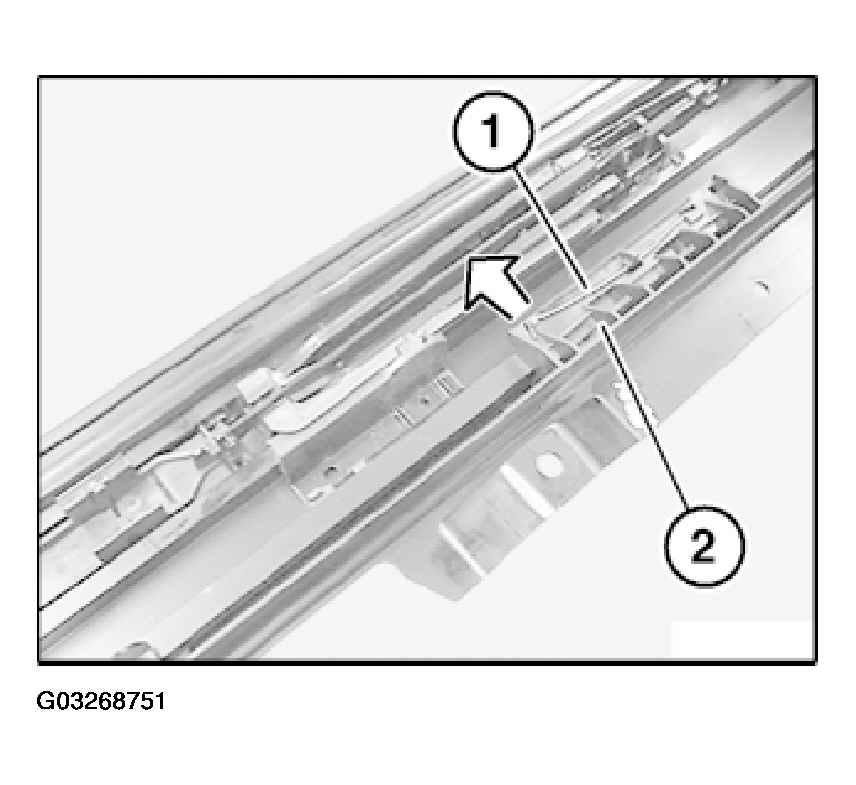

Lever out retaining bracket (1) from drive cable plate (2).

Fig 4: Removing Retaining Bracket From Drive Cable Plate

Courtesy of BMW OF NORTH AMERICA, INC.

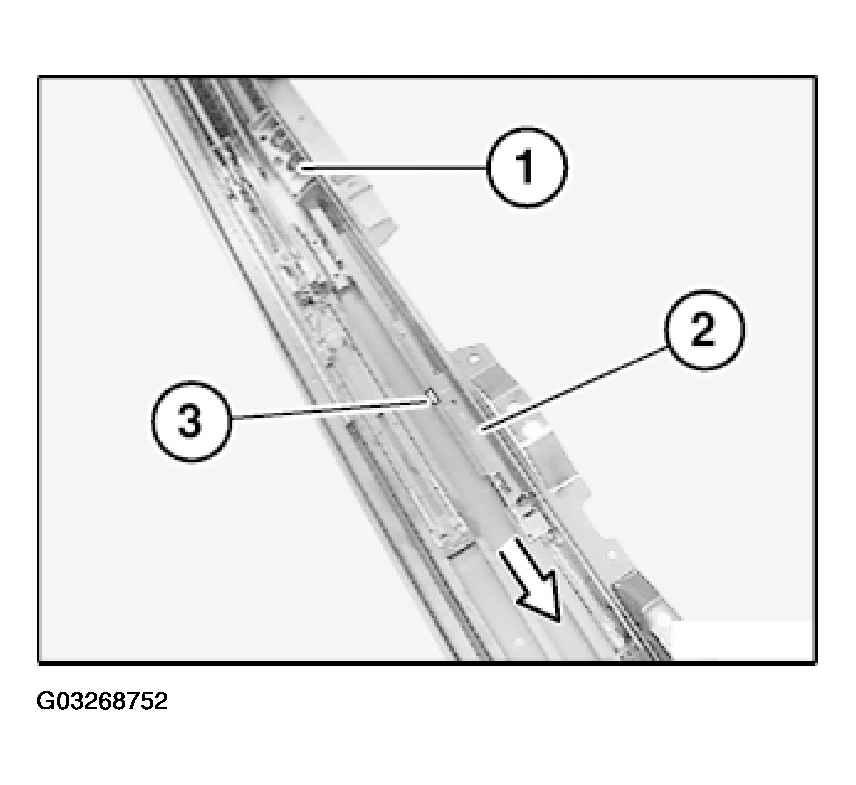

Slide rear connecting line (2) with drive cable plate (1) towards rear until spring retainer (3) is exposed.

NOTE: Spring retainer (3) cannot be removed without incurring damage.

Lever out spring retainer (3) with screwdriver.

Installation:

Replace faulty spring retainer.

Continue sliding rear connecting link (2) with drive cable plate (1) towards rear out of guide channel and remove in succession.

Fig 5: Removing Spring Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

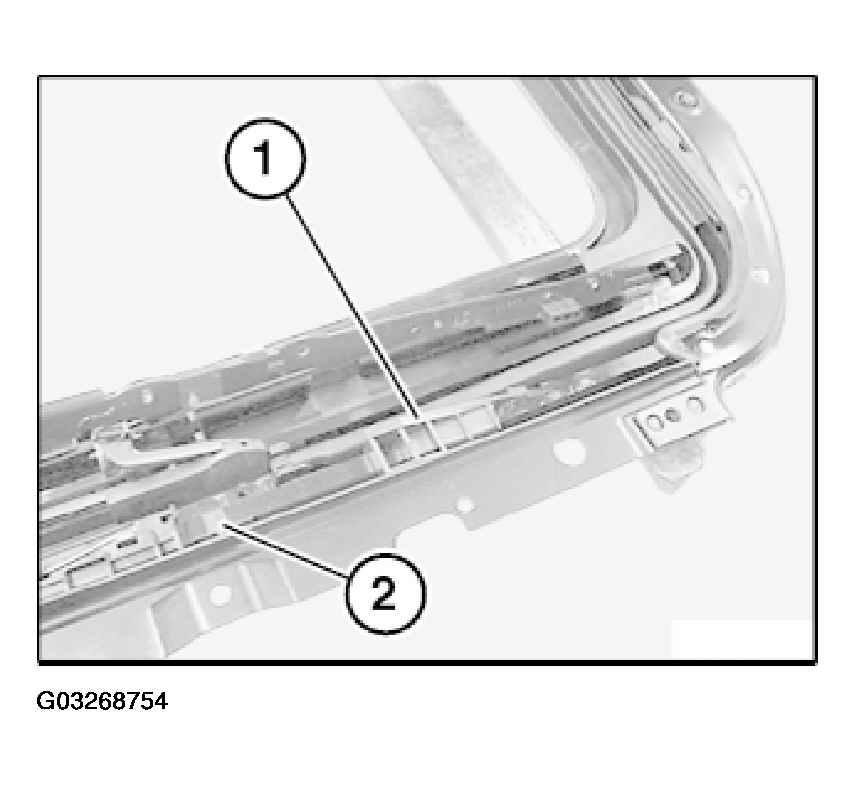

Slide drive cable plate (1) up against drive cable.

Install locking lever (2) and lock retaining bracket.

Fig 6: Installing Locking Lever And Lock Retaining Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Removing Control Carriage For Wind Deflector:

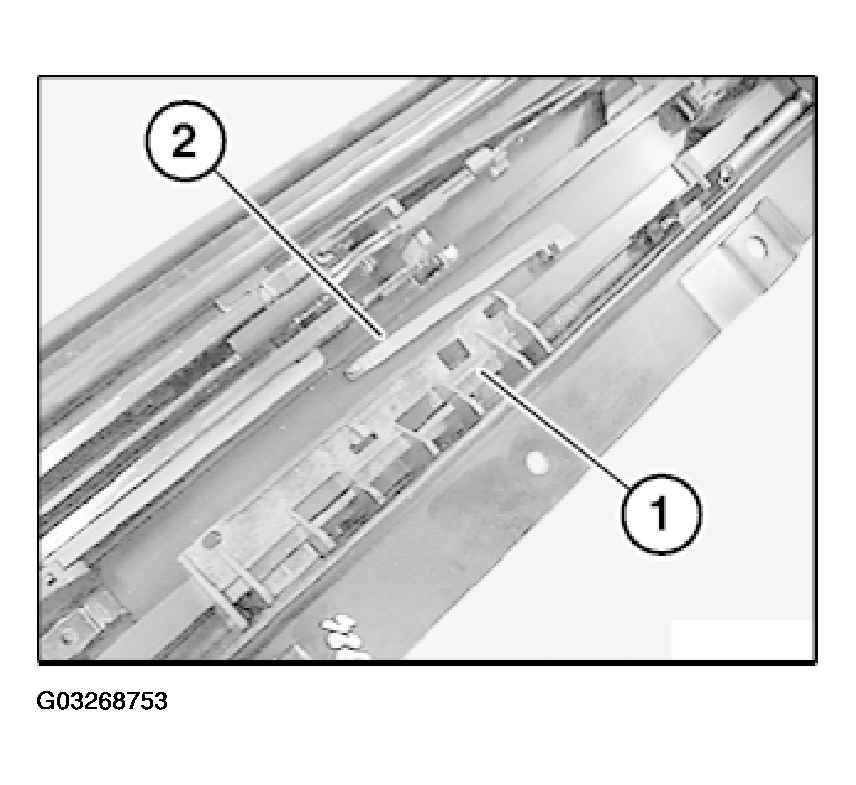

NOTE: Spring retainer (2) cannot be removed without incurring damage.

Lever out spring retainer (2) with screwdriver.

Installation:

Replace faulty spring retainer.

Pull control carriage (1) for wind deflector towards rear out of rail and remove.

Fig 7: Removing Control Carriage For Wind Deflector

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check smooth and noise-free running of kinematics. Check function.
