54 12 210 Removing and installing complete slide/tilt sunroof (frame)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove drive unit with transmission for slide/tilt sunroof actuation.

Remove headliner.

Remove water drain hoses (1) at front / rear.

Unfasten Omega clips (2).

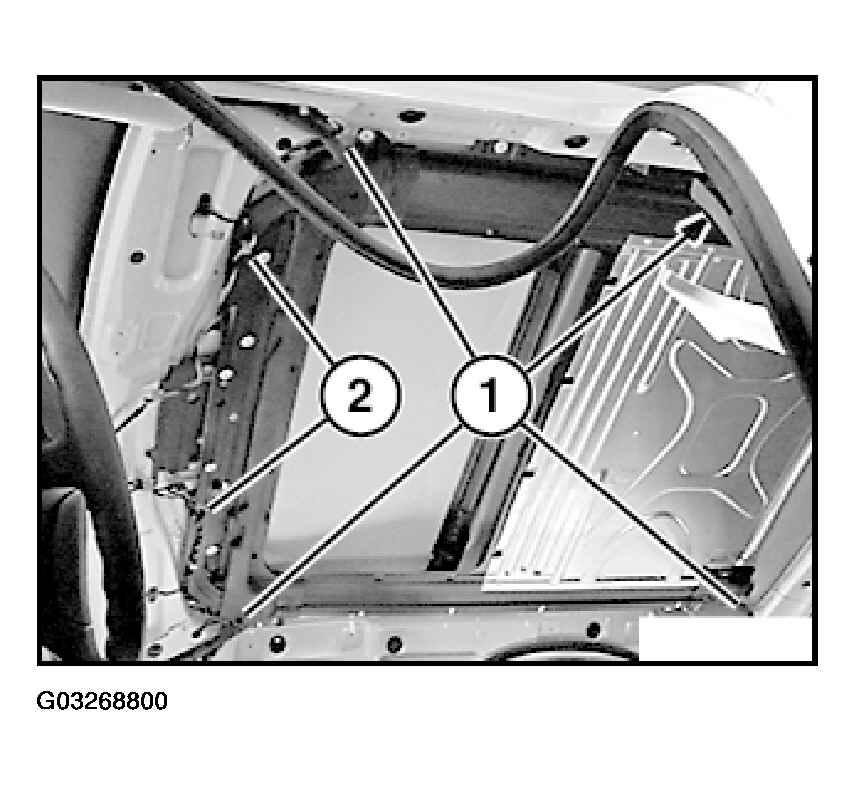

Fig 1: Removing Water Drain Hoses

G03268800

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) at front and (2) at left/right.

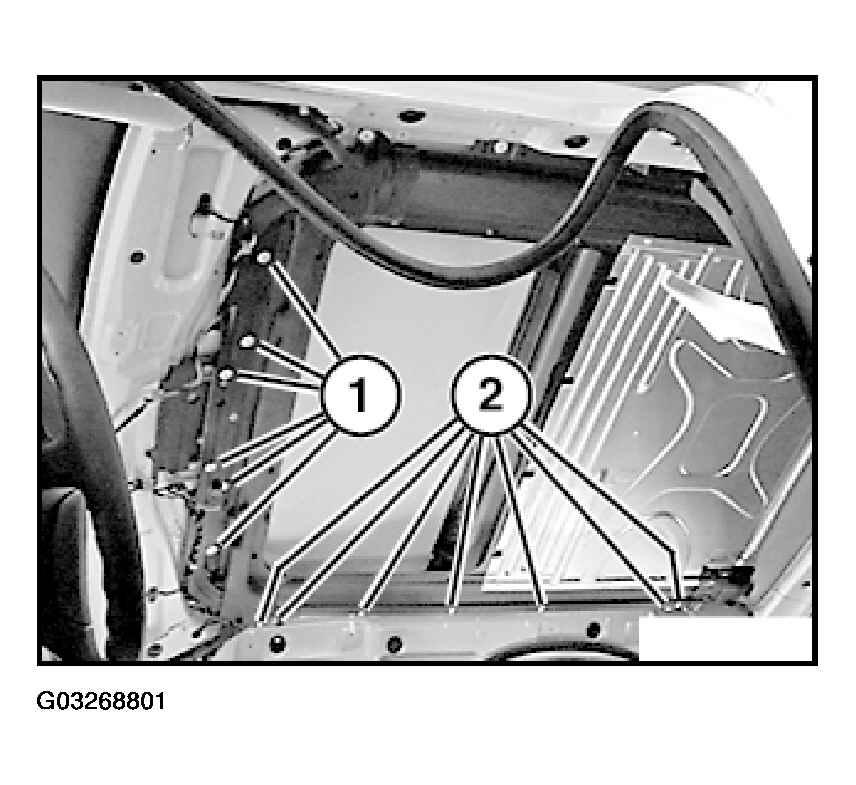

Fig 2: Removing Retaining Screws

G03268801

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook left/right clip and lower slide/tilt sunroof frame slightly.

Installation:

Fold up back of frame until rear clips can be unfastened.

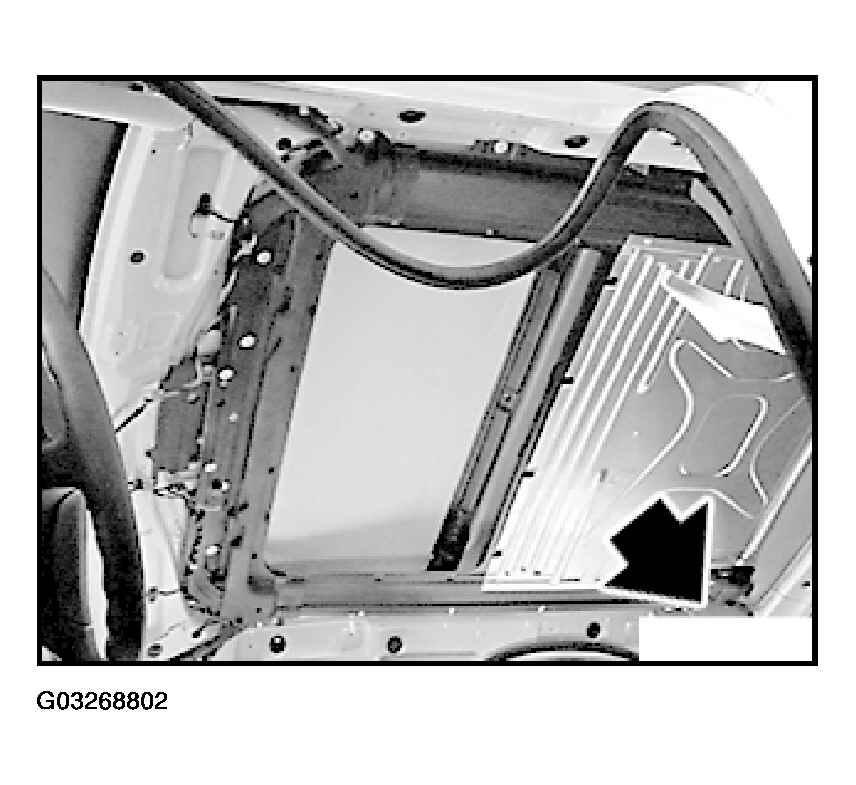

Fig 3: Removing Unhook Left/Right Clip

G03268802

Courtesy of BMW OF NORTH AMERICA, INC.

Slide slide/tilt sunroof frame backwards and lift out through right rear door.

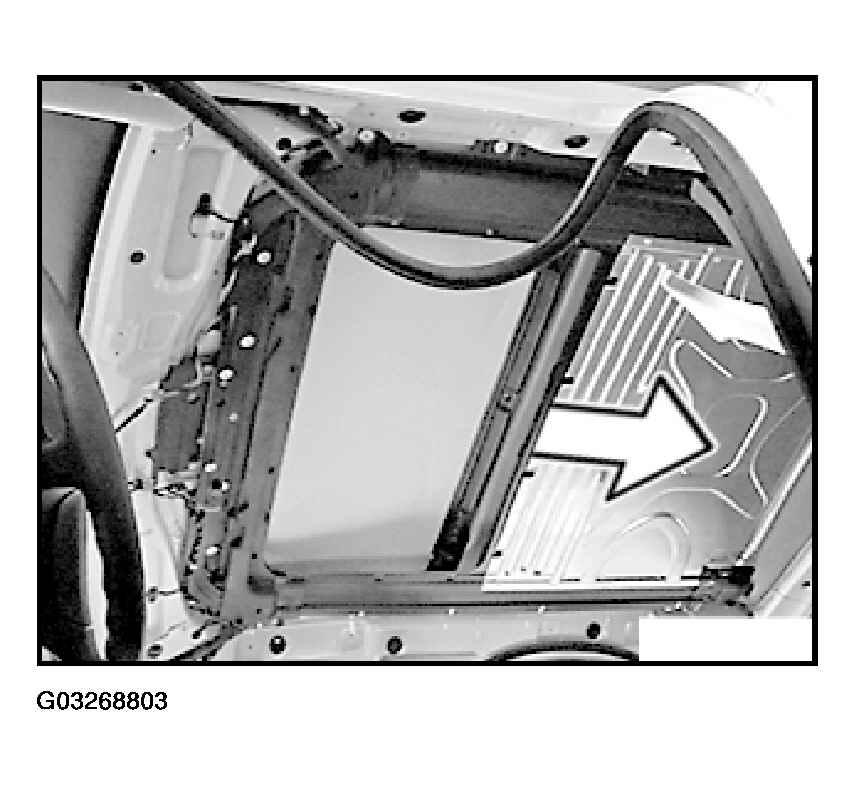

Fig 4: Sliding Slide/Tilt Sunroof Frame Backwards

G03268803

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert slide/tilt sunroof frame in sheet metal slot at front.

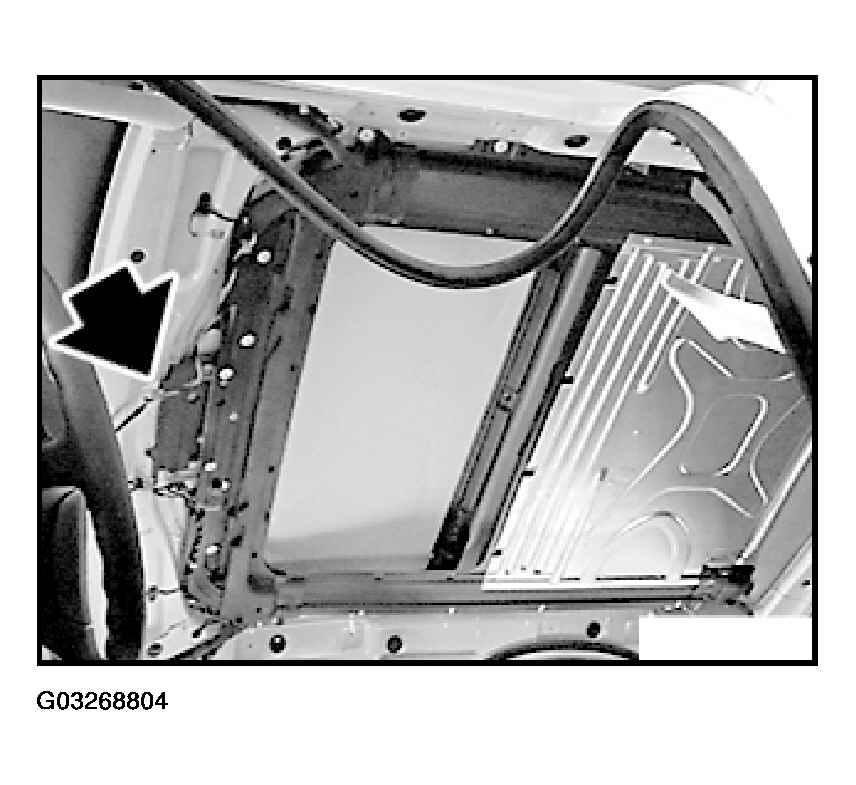

Fig 5: Inserting Slide/Tilt Sunroof Frame

G03268804

Courtesy of BMW OF NORTH AMERICA, INC.
