54 12 120 Replacing seal for slide/tilt sunroof lid
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Observe note on repairing bonded seals on slide/tilt sunroof. Refer to 54 0 ... REPAIR INSTRUCTIONS FOR BONDED SEALS
Open slide/tilt sunroof completely.

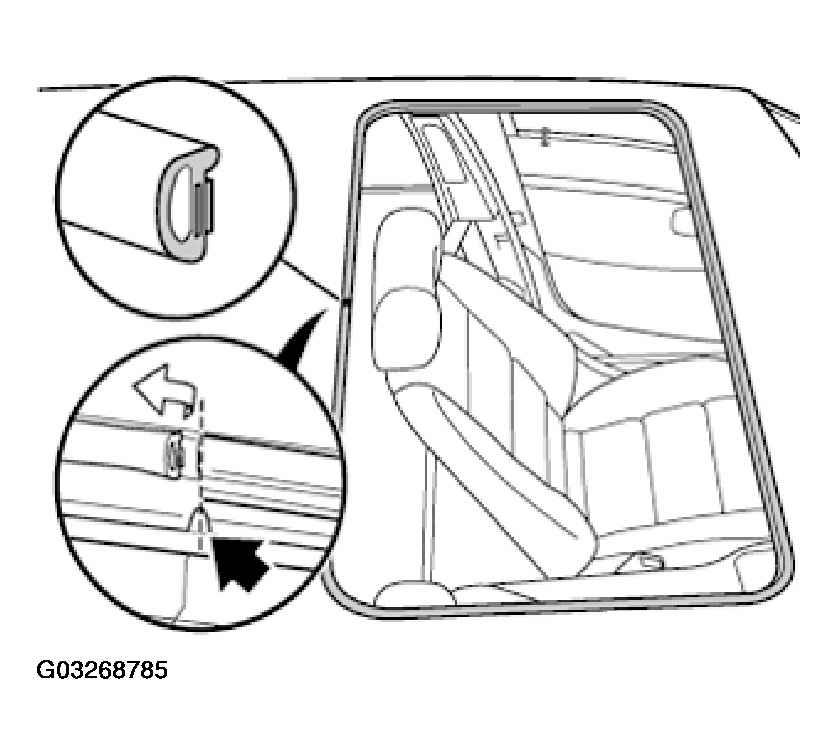

Begin removal at contact edge (mostly rear center):
- Peel off rubber seal.
- Clean bonded area.
Installation:
Also begin at specified point of contact edge for installation:
- Stick on rubber seal in sections.
- Establish seal joint.
- Press on seal.
