54 13 100 Removing and installing / replacing drip moulding

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove complete glass slide/tilt sunroof. Refer to 54 13 080 REMOVING AND INSTALLING COMPLETE GLASS SLIDE/TILT SUNROOF .
Remove glass slide/tilt sunroof lid at rear. Refer to 54 10 175 REMOVING AND INSTALLING REAR GLASS SLIDE / TILT SUNROOF COVER .
Remove glass slide/tilt sunroof lid at front. Refer to 54 10 170 REMOVING AND INSTALLING FRONT GLASS SLIDE/TILT SUNROOF COVER .

IMPORTANT: Risk of damage to inner water carrier. Reposition drip moulding (1) and carefully unclip upwards out of carrier (2).

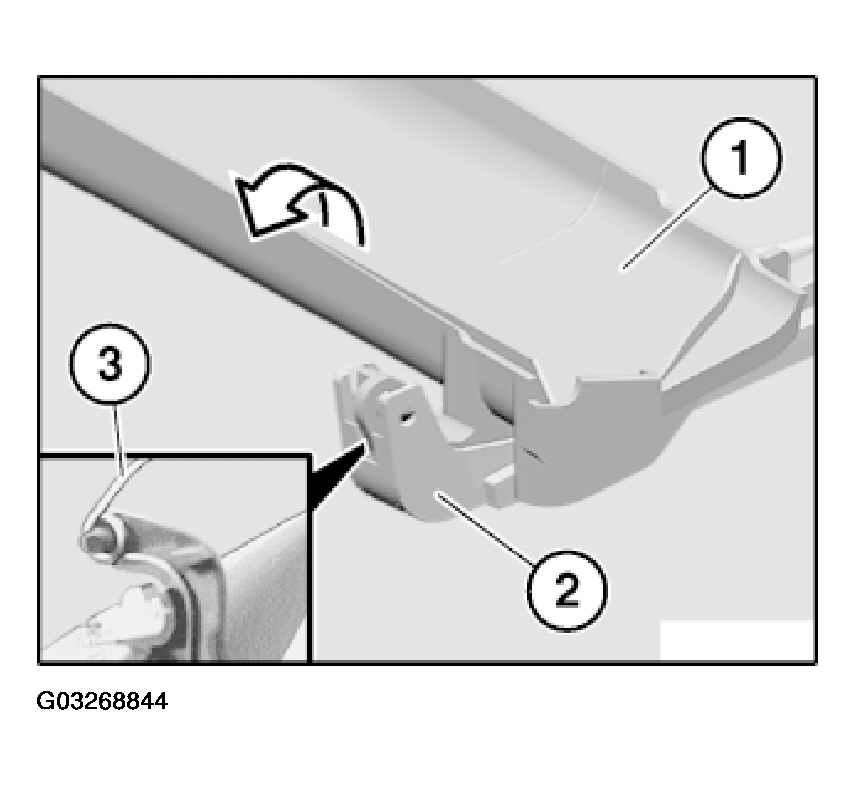

Fig 1: Identifying Drip Moulding

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach spring (3) to drip moulding pivot point.

Make sure spring is correctly positioned in drip moulding.

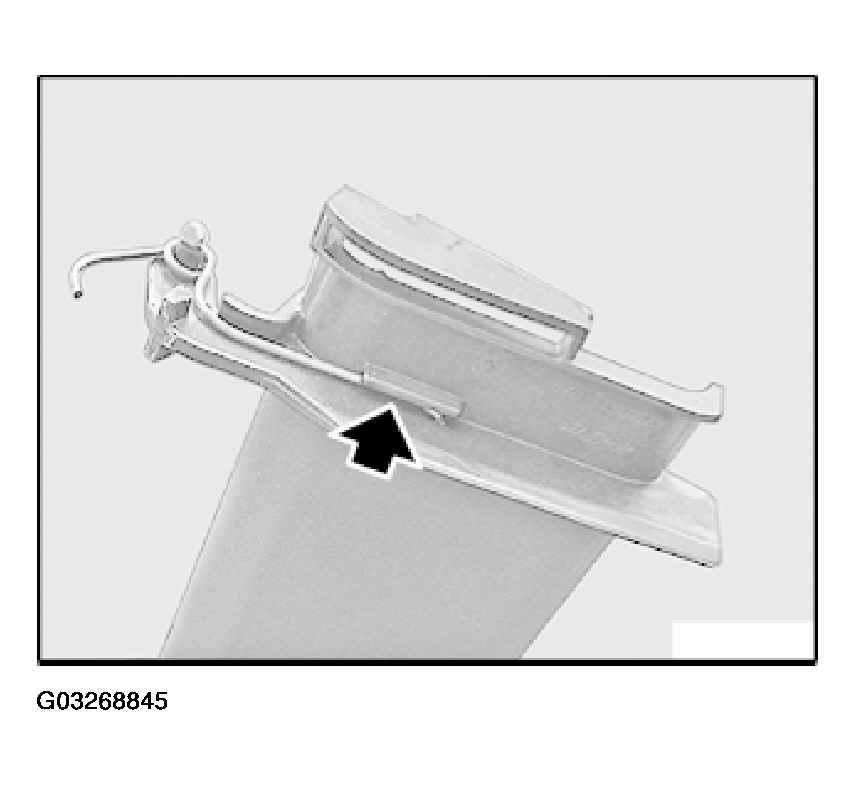

Fig 2: Attaching Spring To Drip Moulding Pivot Point

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe installation sequence:

Suspend spring in inner water carrier.
Press drip moulding onto glass slide/tilt sunroof.
Clip pivot point (bearing) of drip moulding into carrier.

Check drip moulding for spring tension.

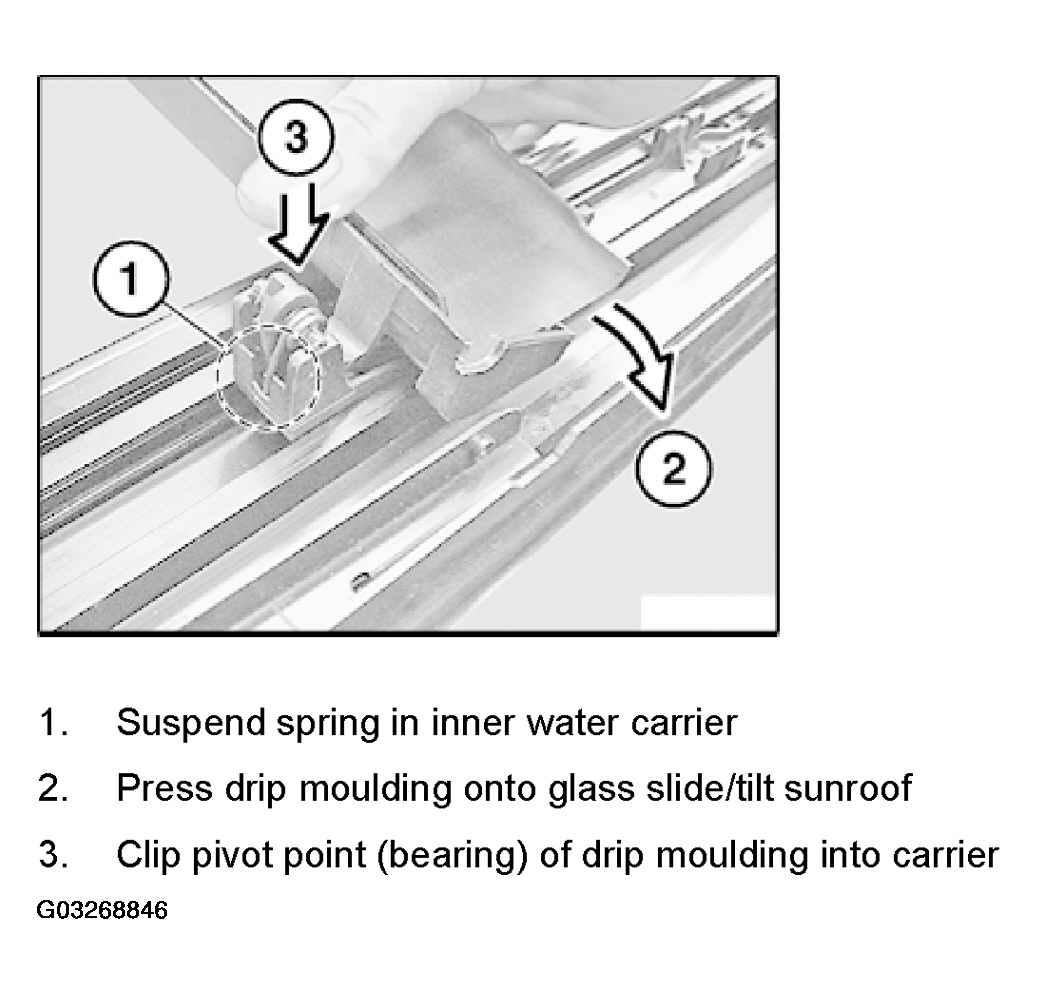

Fig 3: Installing Drip Moulding In Carrier
