54 13 070 Removing and installing/replacing both floating roofliners for glass slide/tilt sunroof

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove glass slide/tilt sunroof lid at front and rear. Refer to 54 10 170 REMOVING AND INSTALLING FRONT GLASS SLIDE/TILT SUNROOF COVER AND/OR 54 10 175 REMOVING AND INSTALLING REAR GLASS SLIDE / TILT SUNROOF COVER .

NOTE: Front and rear floating roofliners can be removed separately from each other. Make sure that grease on the rails does not come into contact with the floating roofliner.

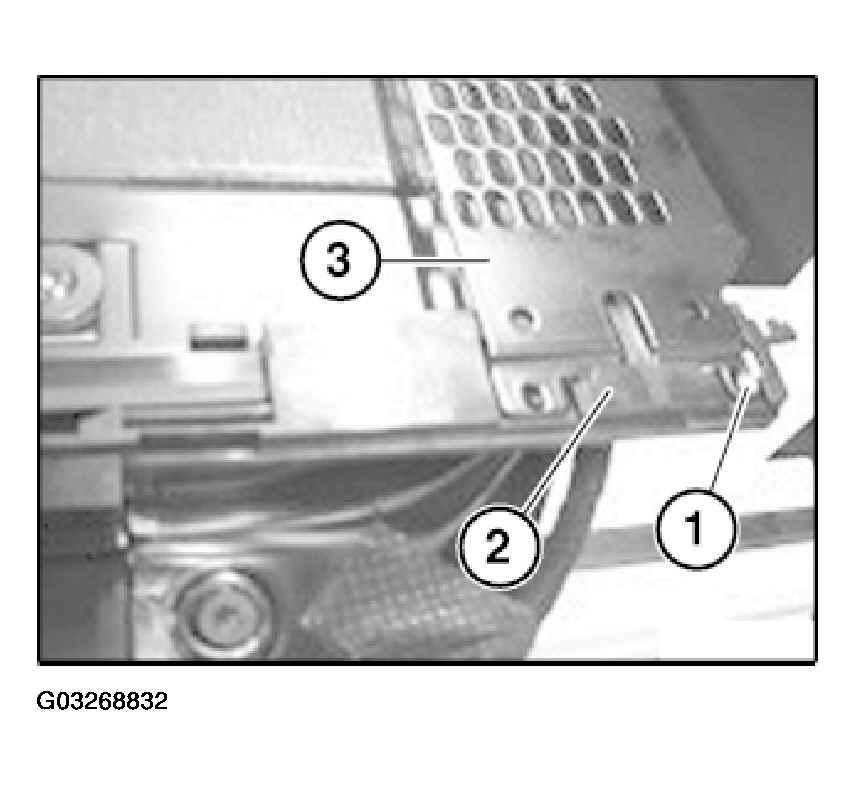

Release screw (1).

Release clips (2) with rotary block.

Remove fan plate (3).

Installation:

Do not tighten down screw (1), fan plate (3) should be able to move in Y-direction.

Fig 1: Removing Fan Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Front Floating Roofliner:

Open floating headliner approx. halfway.

Front rain channel must be situated between first and second screws.

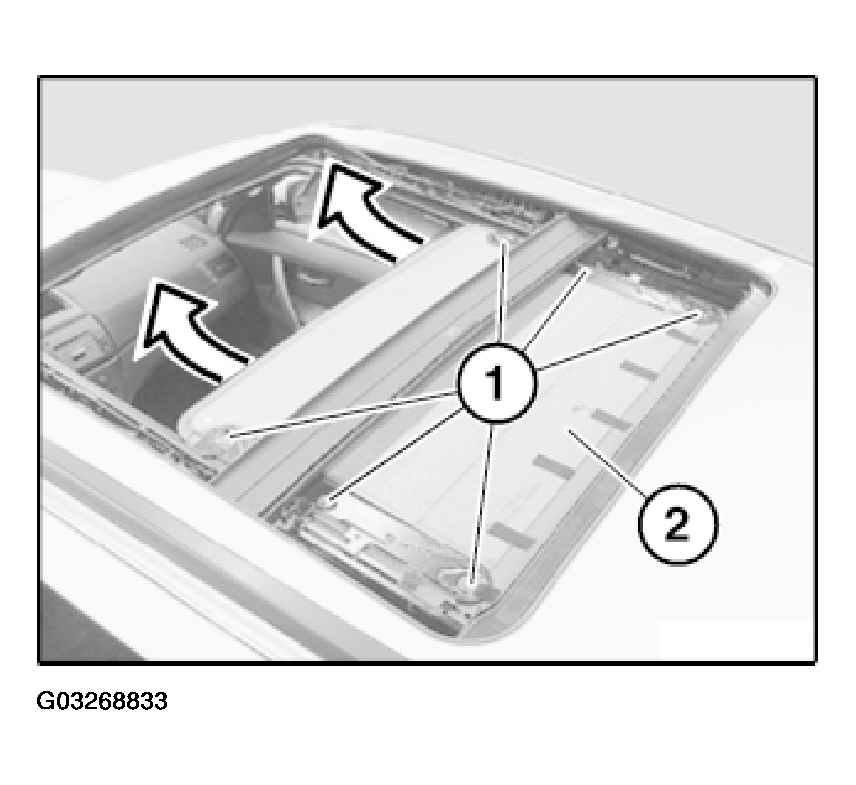

Release screws (1).

Tightening torque, refer to 54 12 10AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES .

Remove star shims.

Fig 2: Removing Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace microencapsulated screws and insert with Loctite.

Make sure star shims are correctly positioned.

Pull out floating roofliner (2) in direction of arrow.

If necessary, press wind deflector downwards.

Installation:

Carefully raise floating roofliner mechanism.

Fig 3: Removing Roofliner Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Rear Floating Roofliner:

Close roofliner completely but not in fan position.

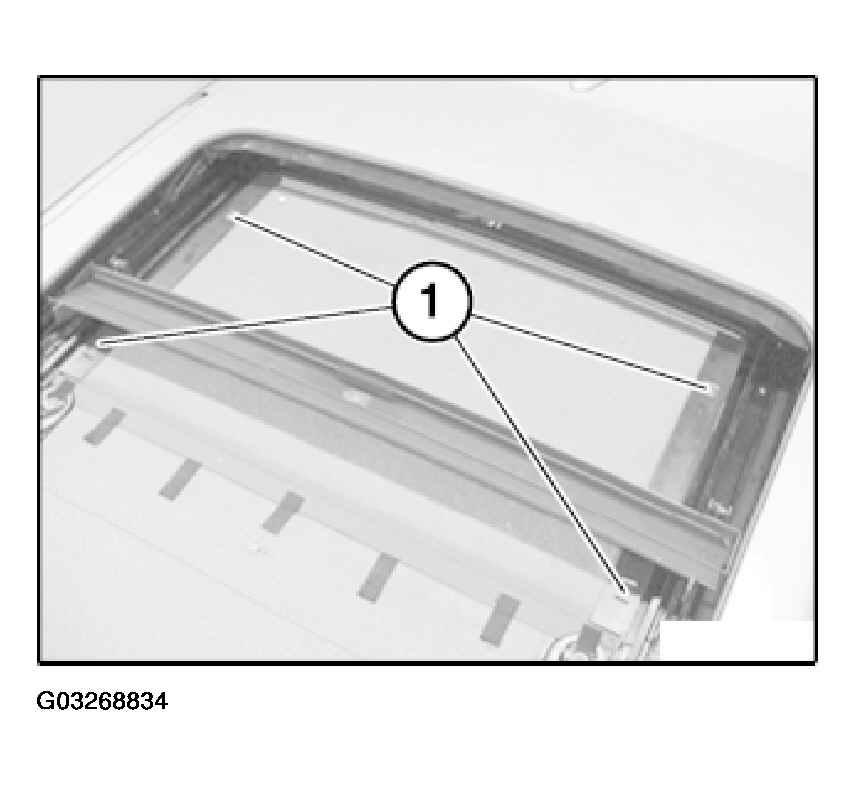

Release screws (1).

Remove tensioning springs (left side only) and washers.

Fig 4: Raising Floating Roofliner

Courtesy of BMW OF NORTH AMERICA, INC.

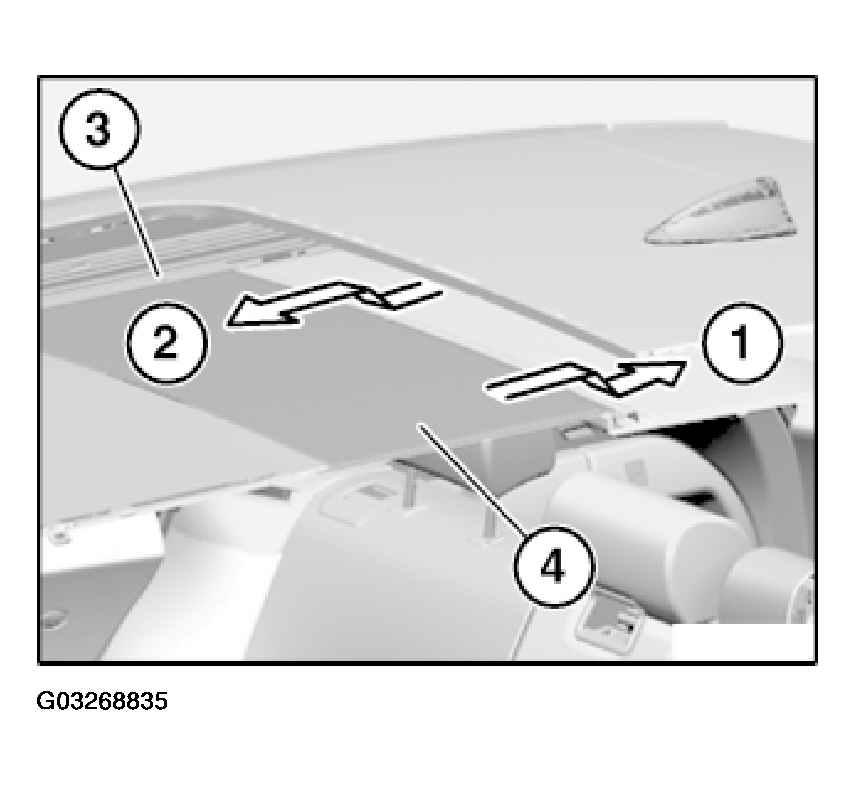

Slide floating roofliner (4) in direction of arrow (1) between outer body skin and roofliner.

Slide floating roofliner (4) up to end of control rail (3).

Raise floating roofliner (4) and remove over control rail (3) in direction of arrow (2).

Fig 5: Identifying Tensioning Springs

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

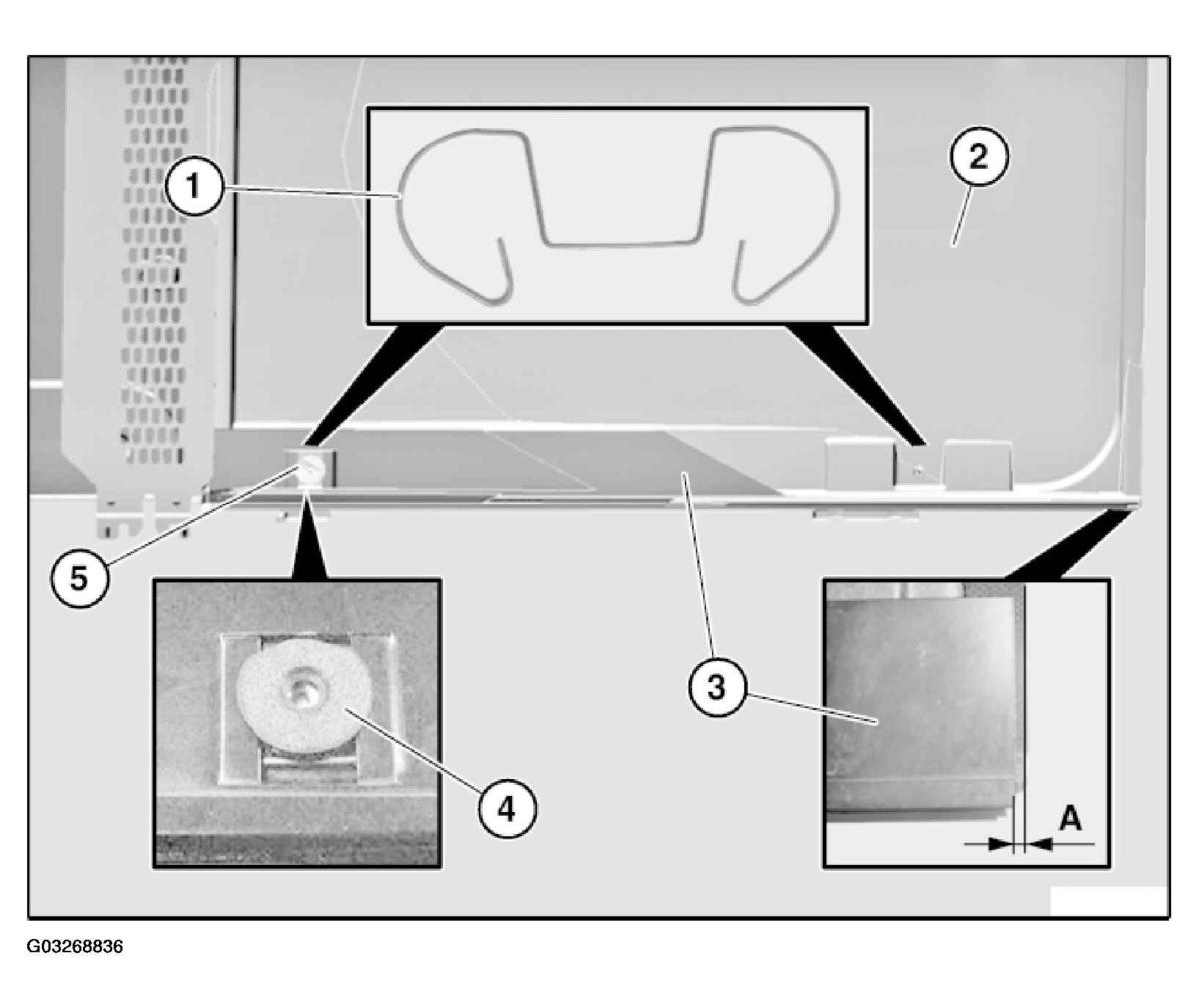

Tensioning springs (1) must rest correctly in recess of floating roofliner (2).
Adjust gap A = 3 +/- ^0.2 mm from control rail (3) to floating roofliner (2).
Make sure washer (4) is correctly positioned with turning lock.
Replace microencapsulated screws (5) and insert with Loctite.
Tightening torque, refer to 54 12 11AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES .

Performing Function Check:

Floating roofliner must be able to move in control rail in X-direction.
Floating roofliner is positioned on right and can be pressed towards left under spring tension.
Floating roofliner springs back towards right into initial position.
