52 26 015 Removing And Installing / Replacing Left Or Right Backrest For Rear Seat (Load Through System) (Touring)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Removing and installing armrest side section on left or right rear-seat backrest (load through system), refer to 52 26 008 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT SIDE SECTION OF REAR SEAT BACKREST (THROUGH-LOADING)

Unfasten screw (1) and remove center mount (2).

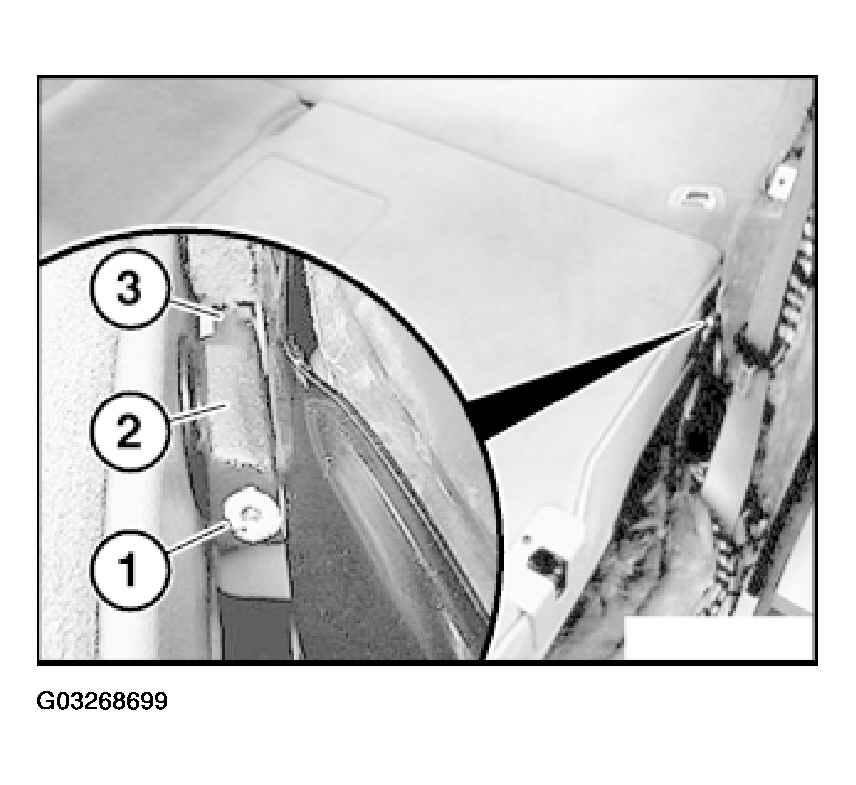

Fig 1: Removing Center Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install center mount (2) properly in guide (3).

Unfasten bolt and (1) take off outer mount (2).

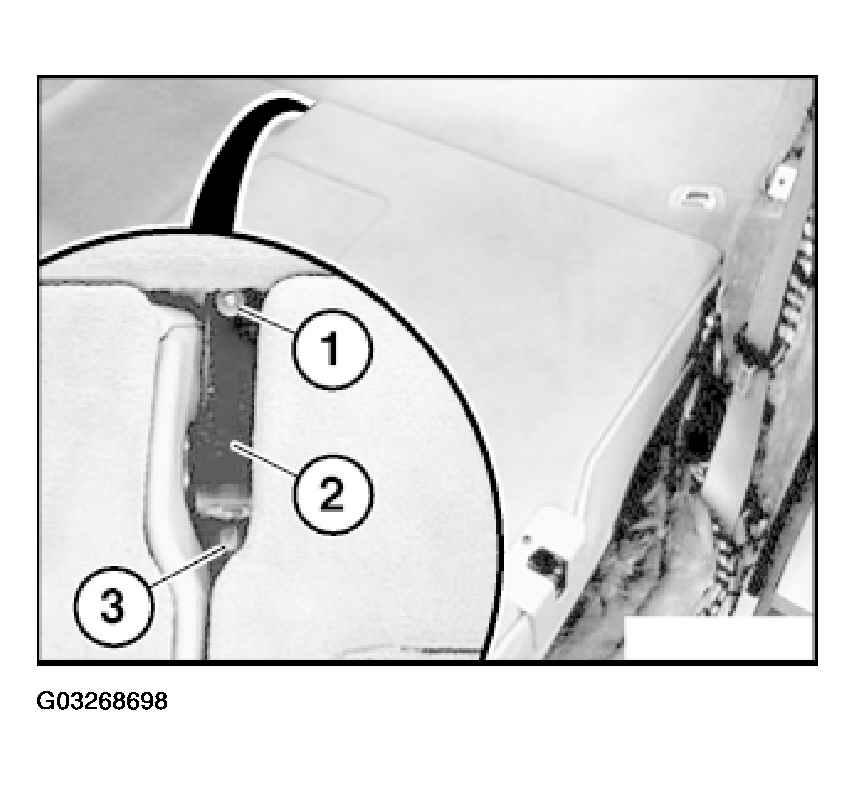

Fig 2: Taking Off Outer Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install outer mount (2) properly in guide (3).

Left backrest:

Position backrest vertically (do not engage) and pull out upward.

Right backrest:

Pull out backrest upward.

Left backrest only:

Installation:

Rod (1) must be facing downward.

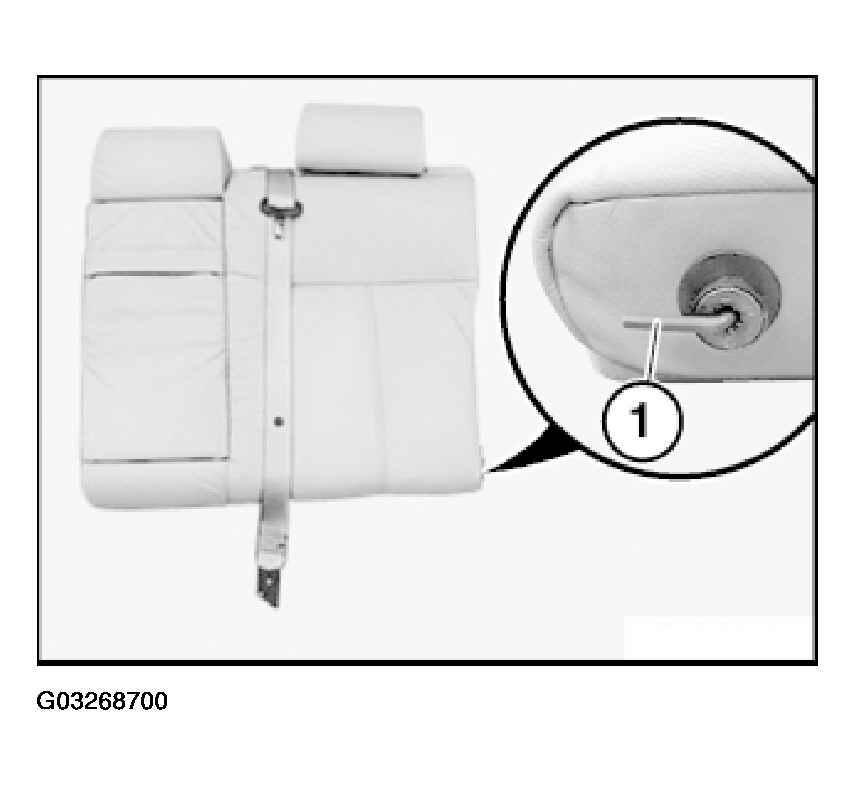

Fig 3: Identifying Rod

Courtesy of BMW OF NORTH AMERICA, INC.
