52 13 050 Replacing Lumbar Cushion On Front Left Or Right Seat

Carry out following tasks beforehand:

Removing rear panel on front seat backrest:

• Basic seat, refer to 52 13 198 REMOVING AND INSTALLING / REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/MANUAL)

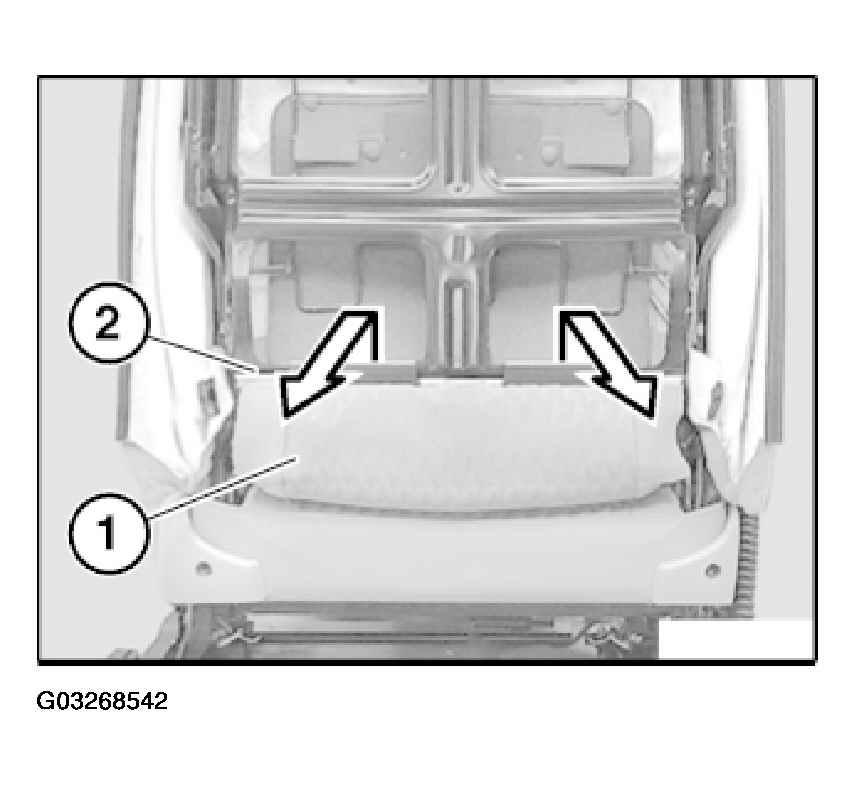

Detach backrest cover (1) from backrest frame (2).

Fig 1: Detaching Backrest Cover From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Housing (valve block) must not be unclipped (leaks). If it is unclipped, release screw and clip housing together.

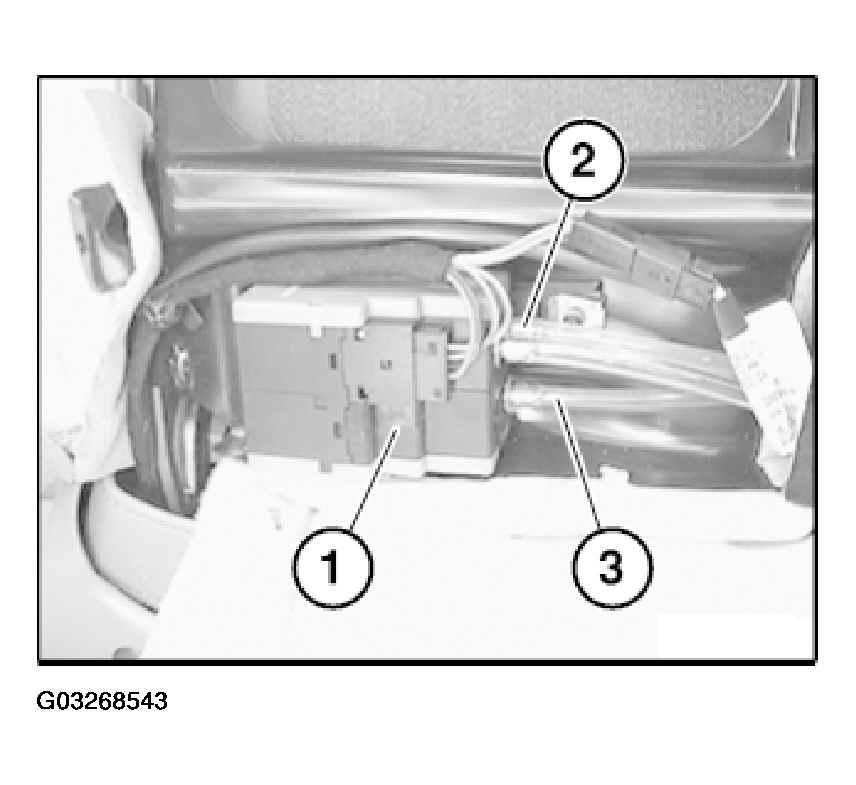

Disconnect hoses (2) and (3) from valve housing (1).

Fig 2: Disconnecting Hoses From Valve Housing

Courtesy of BMW OF NORTH AMERICA, INC.

2 Hose (blue) top cushion

3 Hose (red) bottom cushion

Installation:

1. Air hoses (2) and (3) must be laid without kinks.

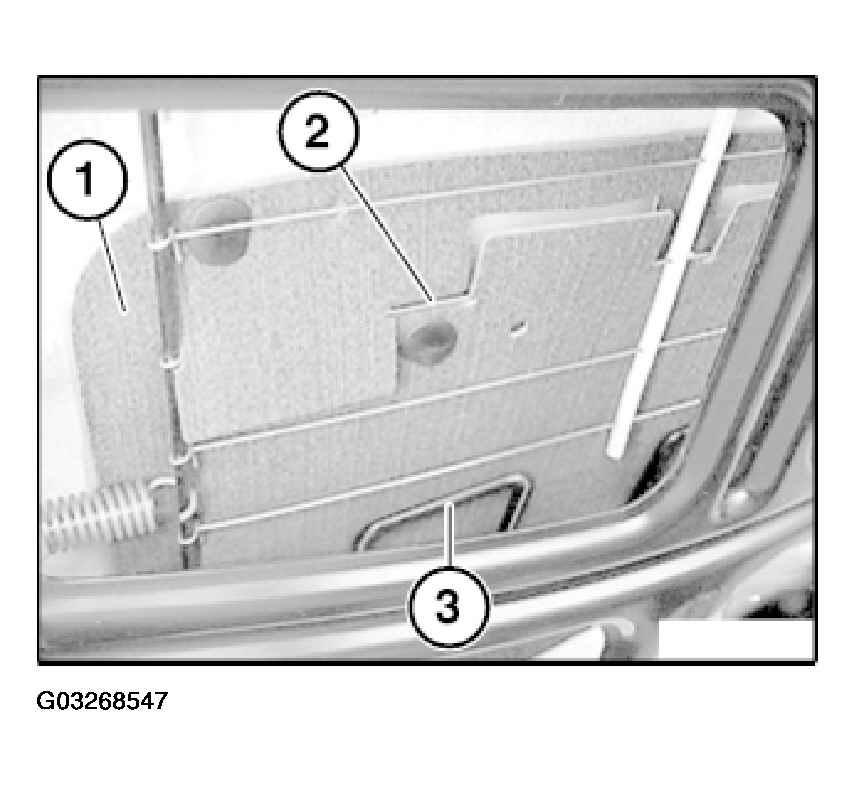

Unhook lumbar cushion (1) from spring wire (2).

Fig 3: Unhooking Lumbar Cushion

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heating:

Slide cable (3) for backrest heating to one side a little.

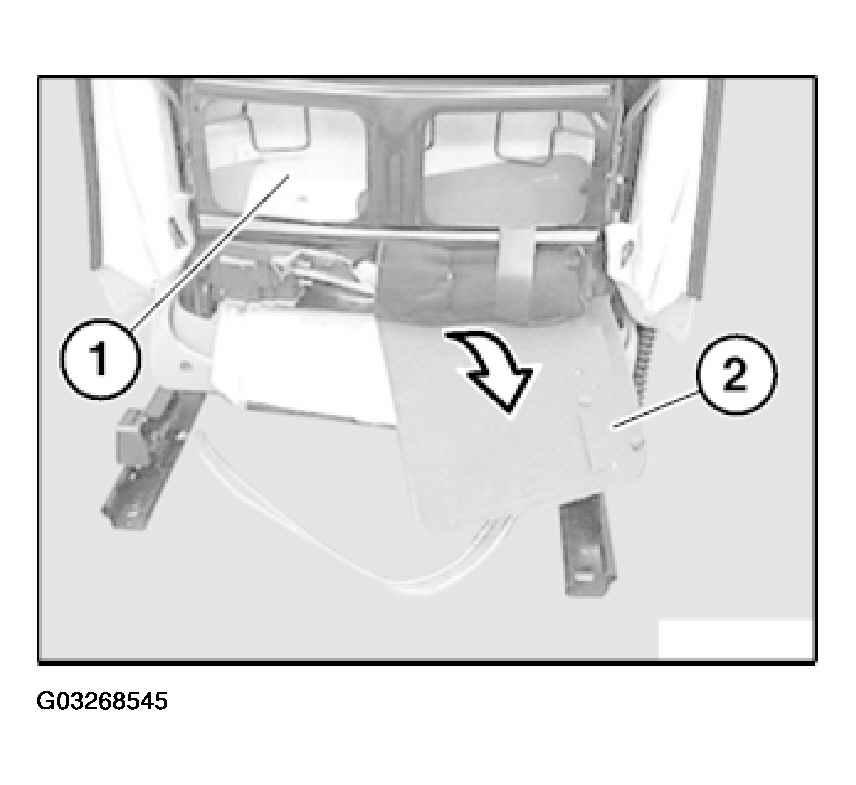

Press back support (1) a little.

Fig 4: Turning Lumbar Cushion

Courtesy of BMW OF NORTH AMERICA, INC.

Turn lumbar cushion (2) and pull out downwards.

Installation:

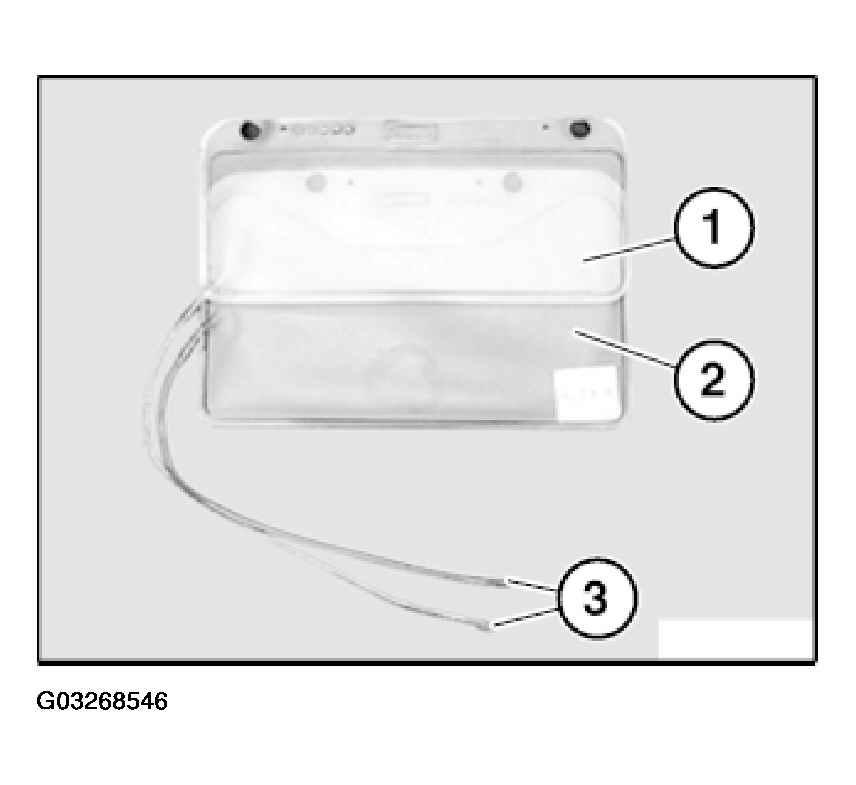

1. Check lumbar cushion (1) at top and (2) bottom for damage.
Fig 5: Checking Lumbar Cushion
Courtesy of BMW OF NORTH AMERICA, INC.
2. Air hoses (3) must not be kinked.

Installation:

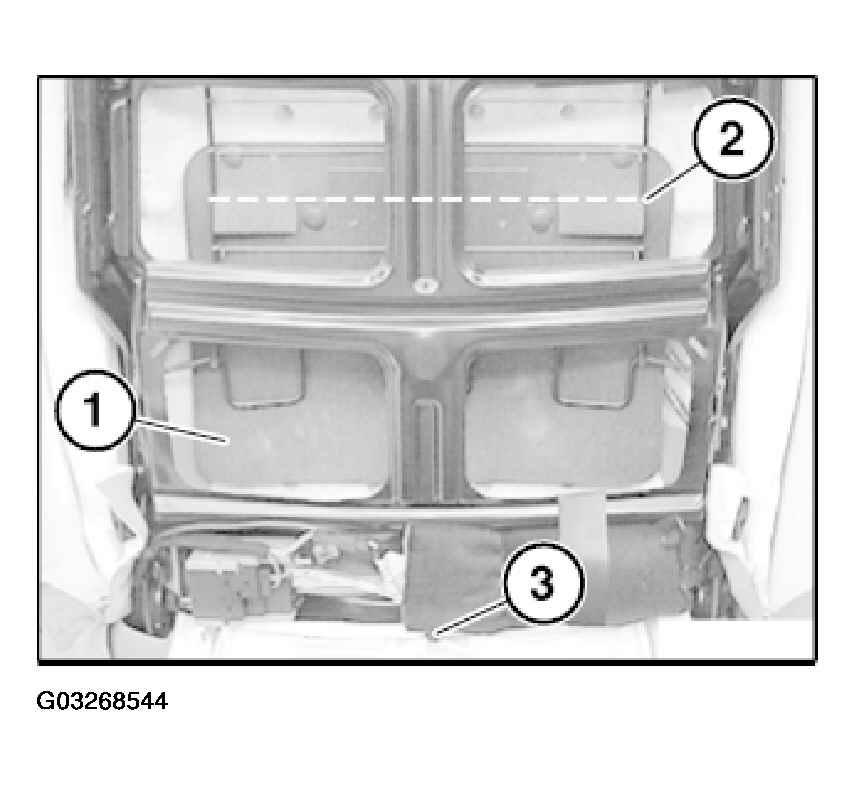

1. Attach lumbar cushion (1) to third wire (2) above spring (3).

Fig 6: Attaching Lumbar Cushion To Third Wire Above Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

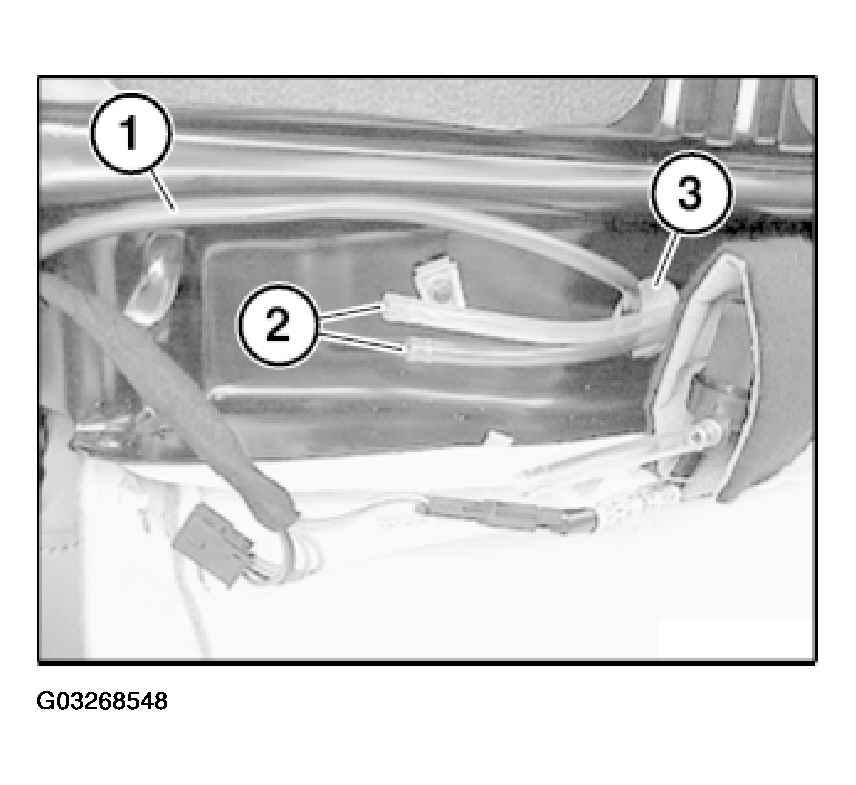

1. Observe cable guide (1) for backrest heating.
Fig 7: Identifying Air Hoses
Courtesy of BMW OF NORTH AMERICA, INC.
2. Lay air hoses (2) without kinks through hole (3).

Installation:

1. Check function.
