51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Remove entrance cover strip at front (inside). Refer to 51 47 000 REMOVING AND INSTALLING/REPLACING THE FRONT (INSIDE) LEFT OR RIGHT ROCKER PANEL STRIP .

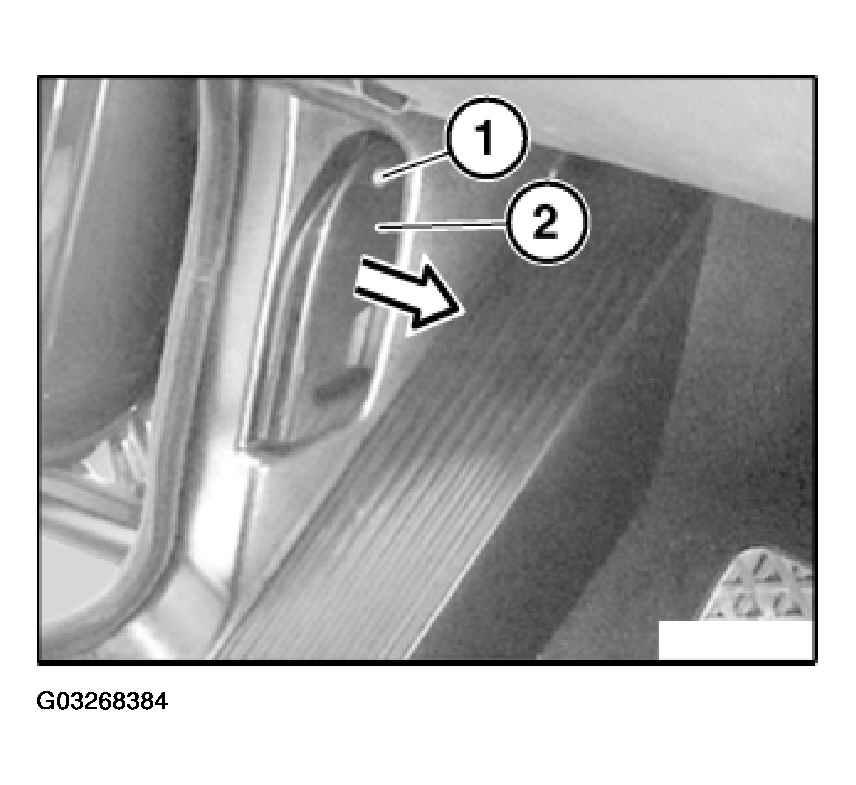

Release screw (1) and remove release lever (2).

Fig 1: Removing Release Lever

Courtesy of BMW OF NORTH AMERICA, INC.

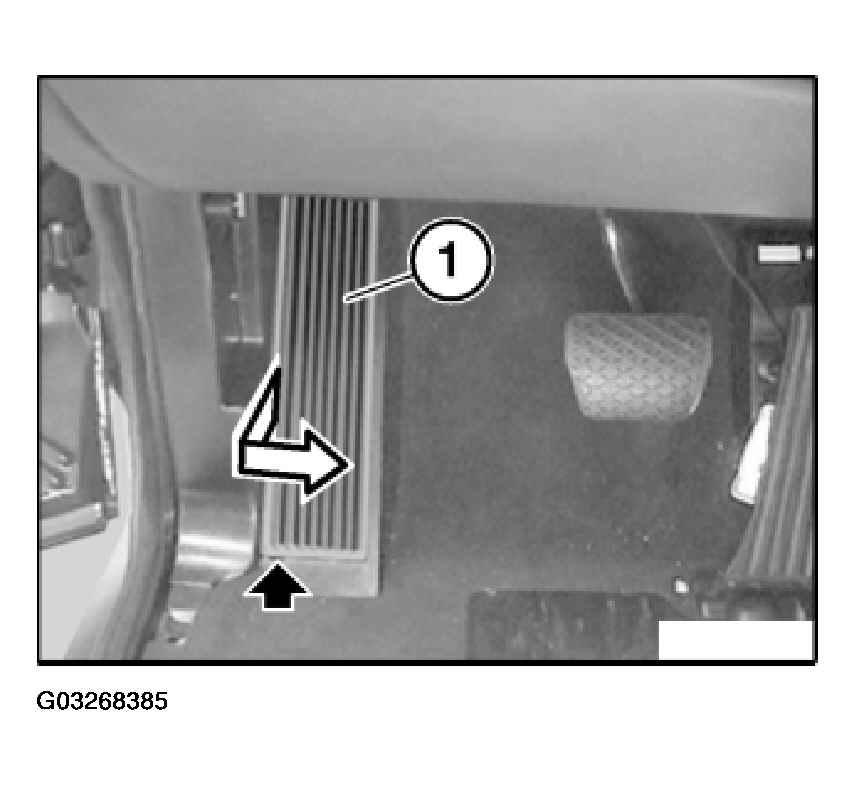

Unclip running board (1) on outside from below towards top and remove towards interior.

Fig 2: Removing Running Board

Courtesy of BMW OF NORTH AMERICA, INC.

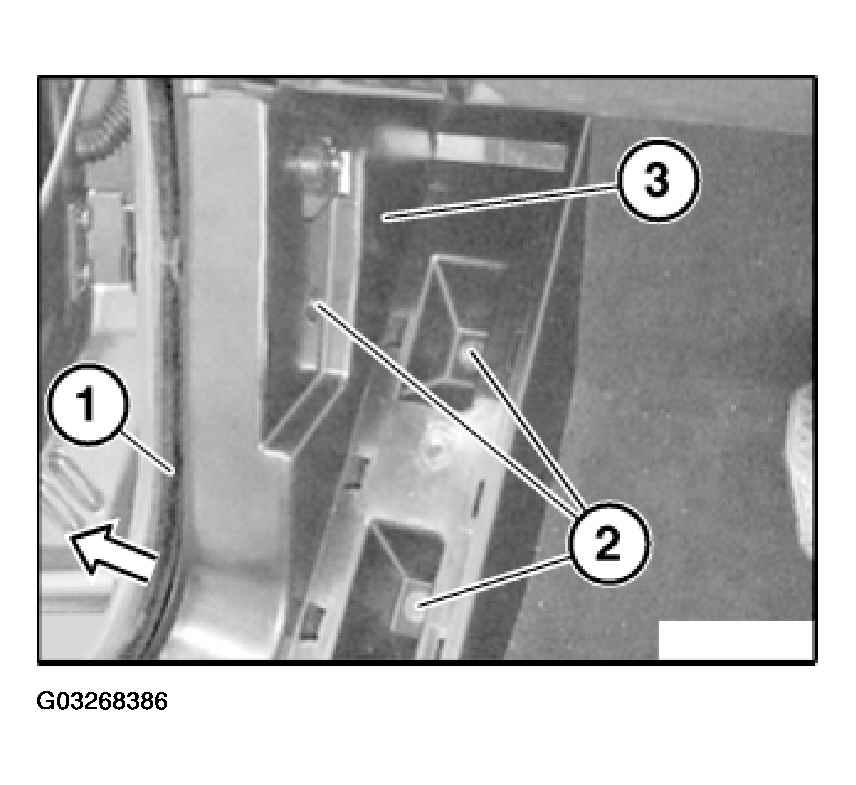

Detach mucket (1) in area of footwell trim (3).

Fig 3: Removing Footwell Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Remove footwell trim (3) towards front/interior.
