51 44 013 Removing and installing roofliner (on version with panorama sunroof)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Operation is identical up to work steps for panorama sunroof to:

Removing and installing/replacing roofliner (with slide/tilt sunroof). Refer to 51 44 011 REMOVING AND INSTALLING/REPLACING HEADLINER (WITH SLIDE/TILT SUNROOF) .

IMPORTANT: The following tasks must be carried out with a second person assisting:
Unclip clips (1) in sunroof frame area towards bottom.

Extend rear roofliner towards bottom out of guide.

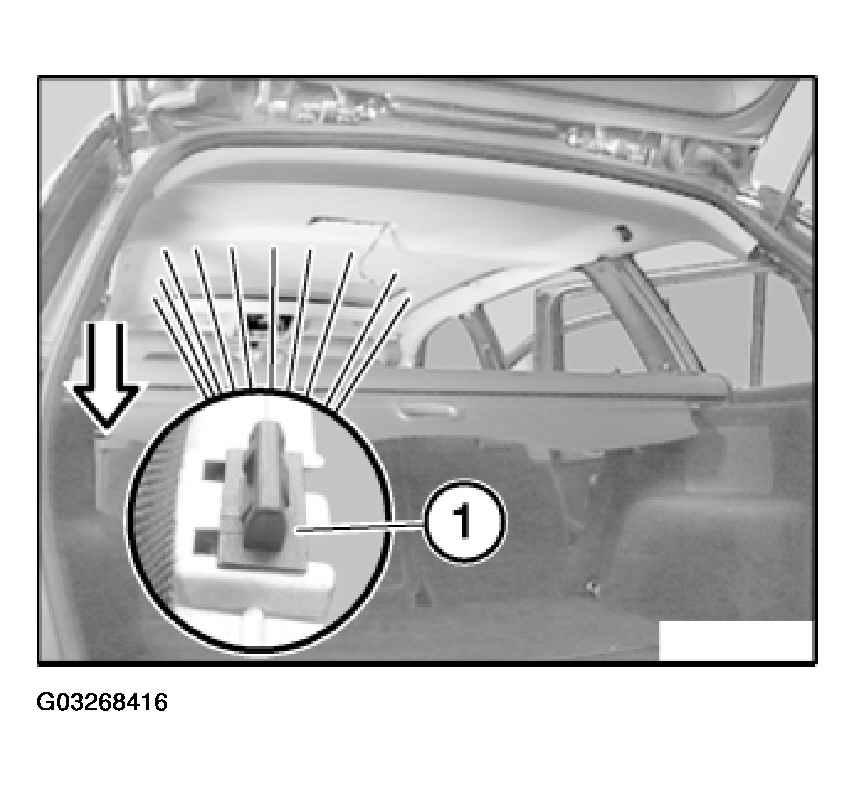

Fig 1: Removing Headliner

Courtesy of BMW OF NORTH AMERICA, INC.

Turn headliner and remove towards rear.

Installation:

Clips (1) and guide (2) must not be damaged.

If necessary, replace clips (1) and guide (2).

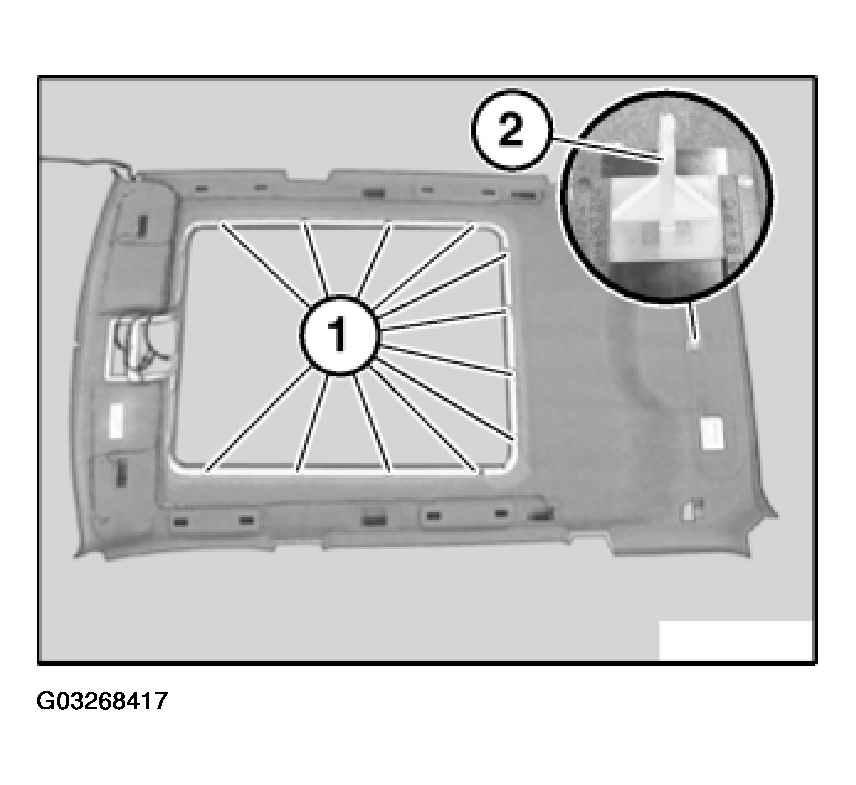

Fig 2: Identifying Clips And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
