51 42 019 Removing And Installing/Replacing Door Handle On Door Trim Panel, Rear Left Or Right

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Remove cover on door handle. Refer to 51 41 017 REMOVING AND INSTALLING/REPLACING COVER ON DOOR HANDLE, FRONT LEFT OR RIGHT .

Release screw (1).

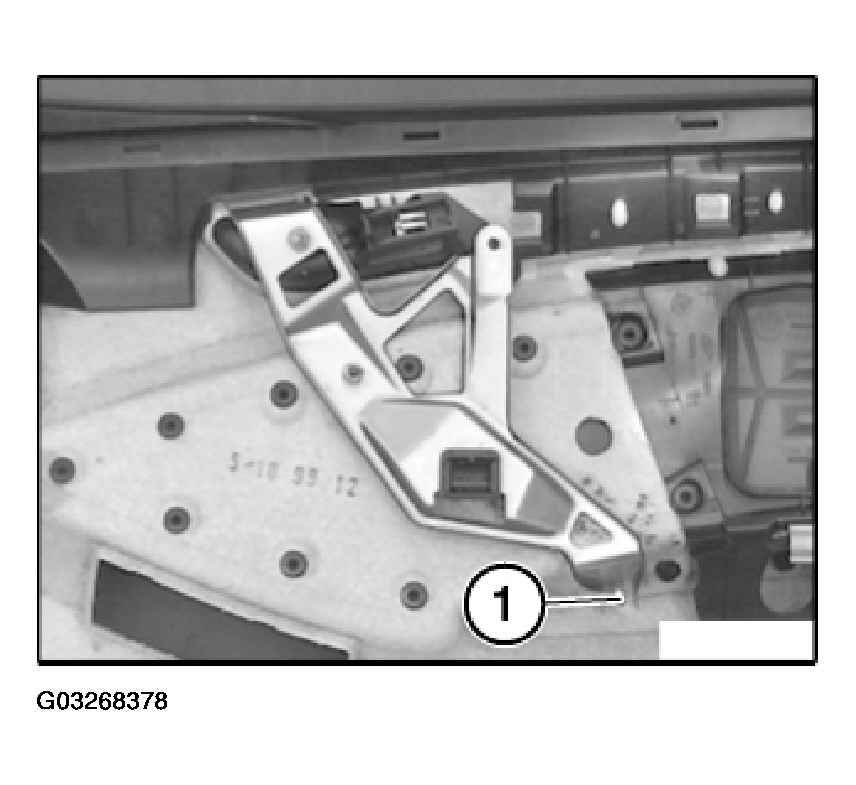

Fig 1: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and detach door handle (2) from door trim panel (3).

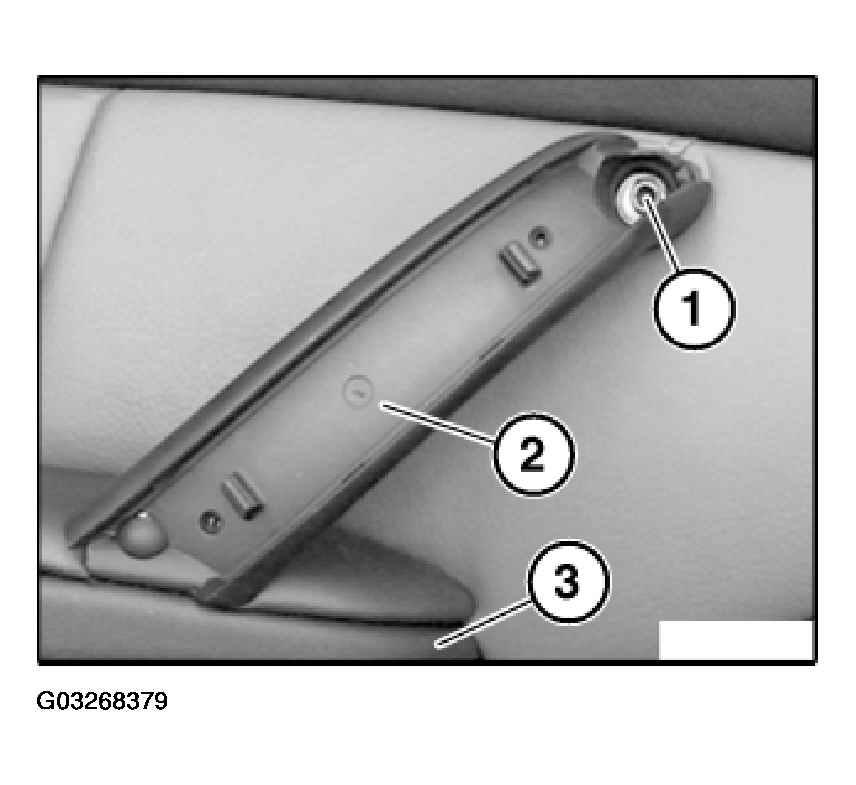

Fig 2: Detaching Door Handle From Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Screw (1) and sleeve (2) on door handle (3) must not be damaged.

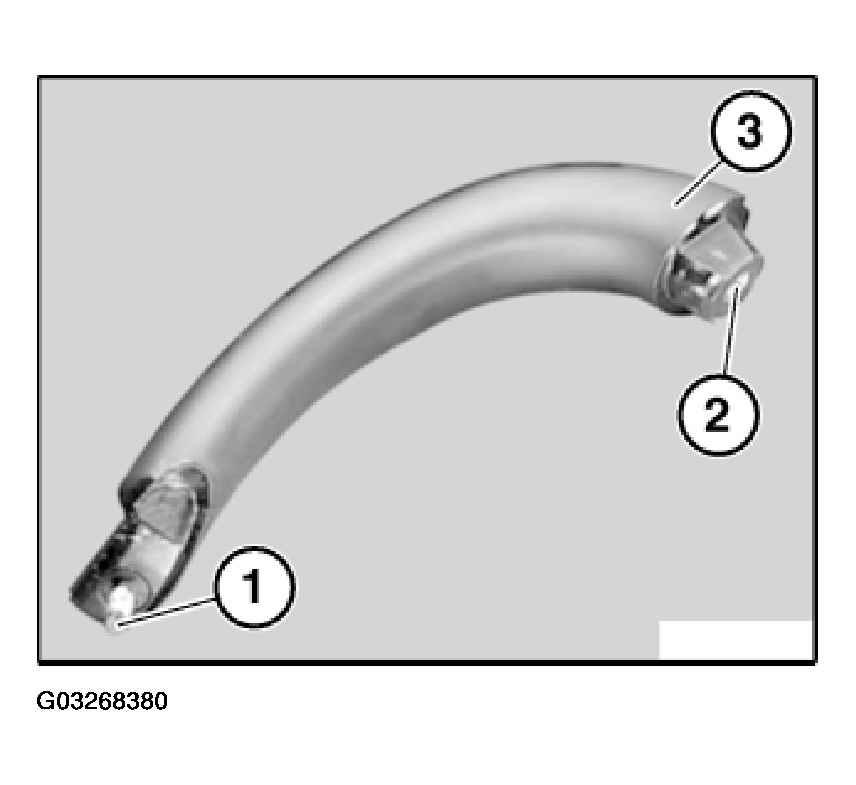

Fig 3: Identifying Screw And Sleeve On Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.
