51 22 225 Removing And Installing/Replacing Inside Door Handle Of Rear Left Or Right Door

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Version with lighting for door handle:

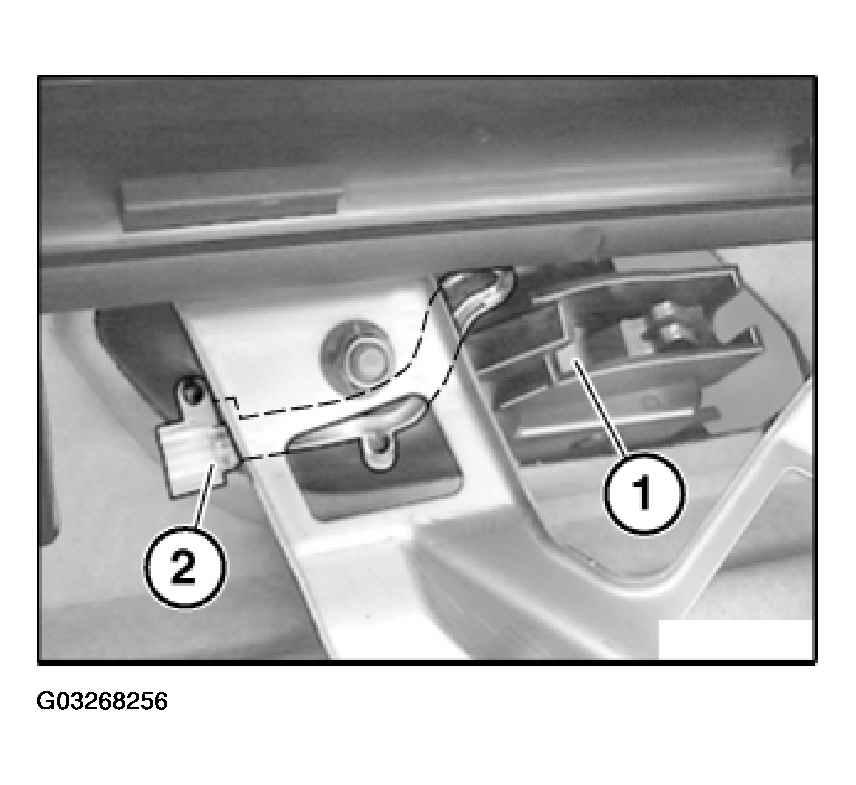

CAUTION: Do not damage light guide (2) when removing door handle (1).

Fig 1: Locating Light Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

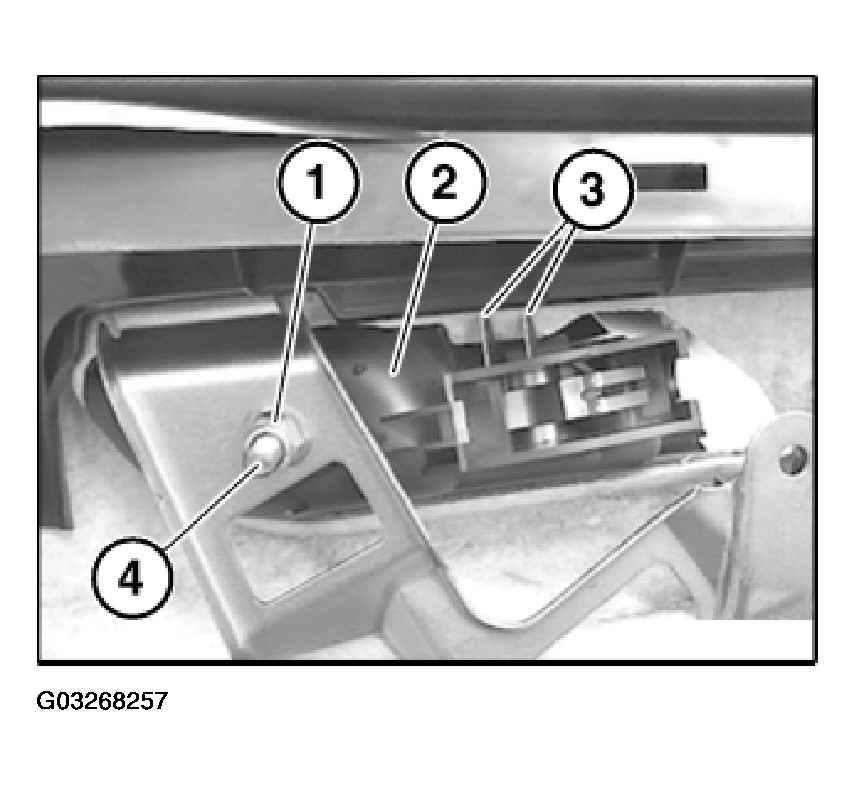

Fig 2: Identifying Guides On Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Guides (3) on door handle (2) must not be damaged.
Move screw (4) slightly into guide of door handle during removal.

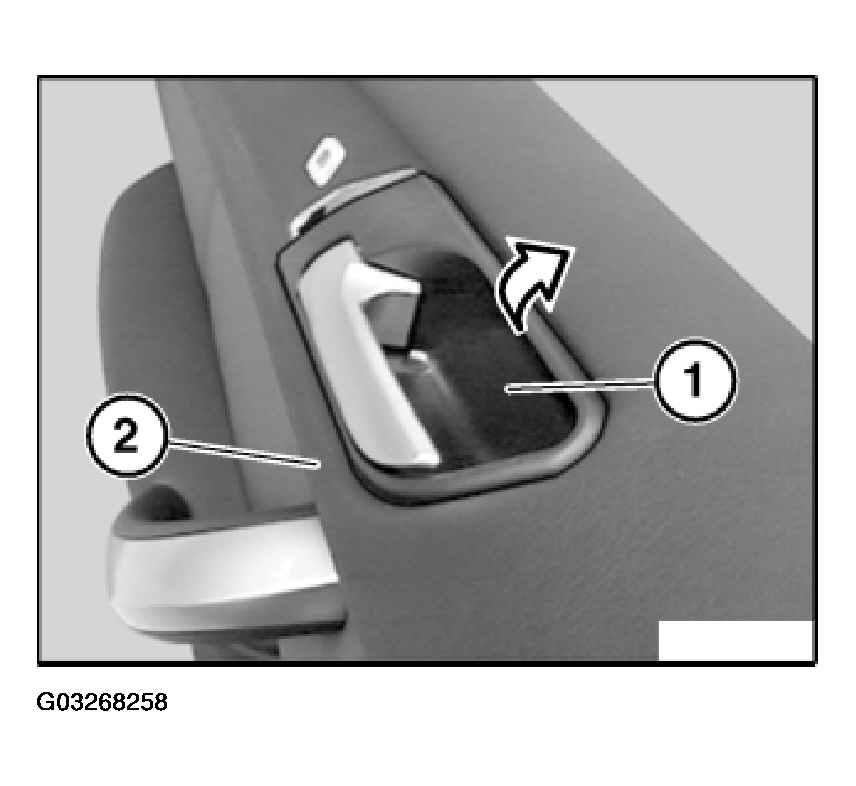

Twist inside door handle (1) inwards/upwards out of door trim panel (2).

Fig 3: Removing Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

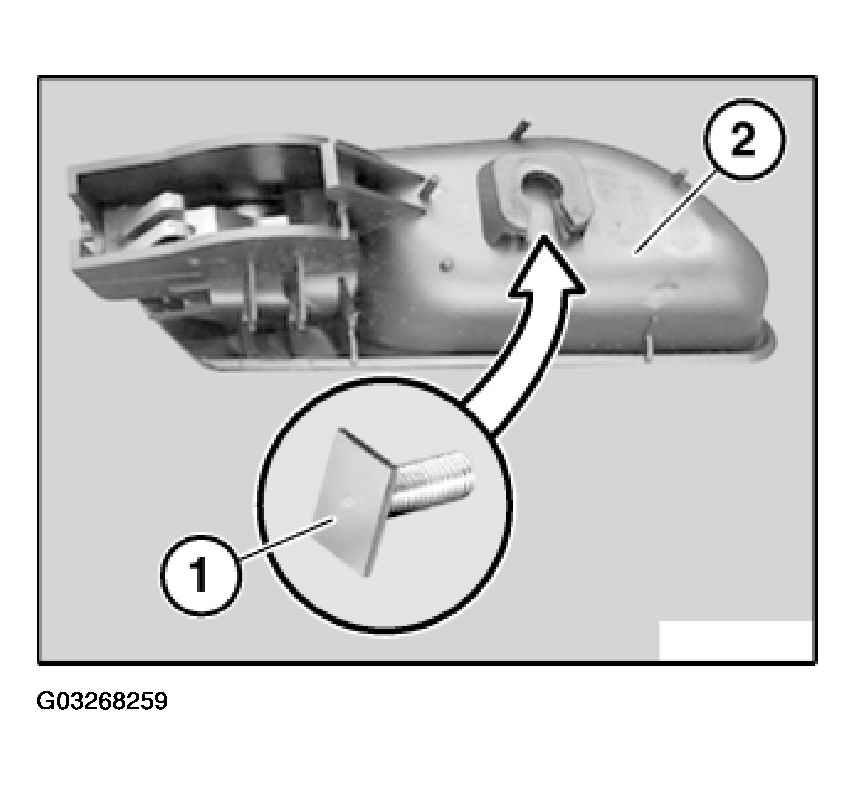

Mount in door handle (2) for screw (1) must not be damaged.

Fig 4: Identifying Mount In Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.
