51 12 801 Replacing bracket for rear bumper at left or right

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

(bumper removed)

If necessary, remove rear bumper completely. Refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER .

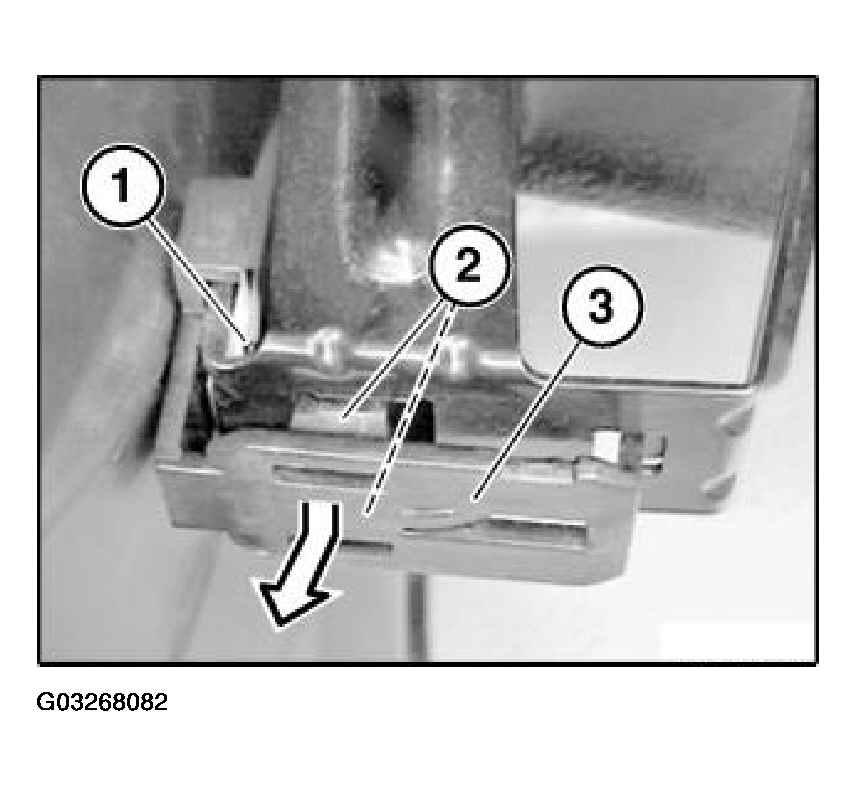

Release screw (1) on wheel arch.

Fig 1: Releasing Screw On Wheel Arch

Courtesy of BMW OF NORTH AMERICA, INC.

Press together catches (2) and remove holder (3) outwards/forwards.

Installation:

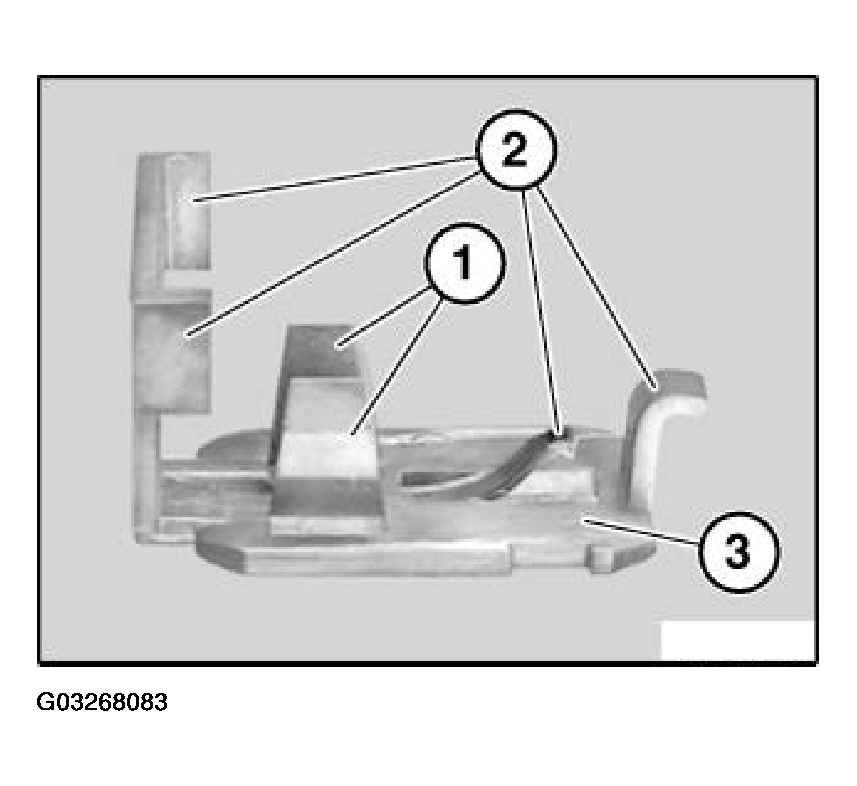

Catches (1) and guides (2) must not be damaged.

Fig 2: Identifying Guides

Courtesy of BMW OF NORTH AMERICA, INC.

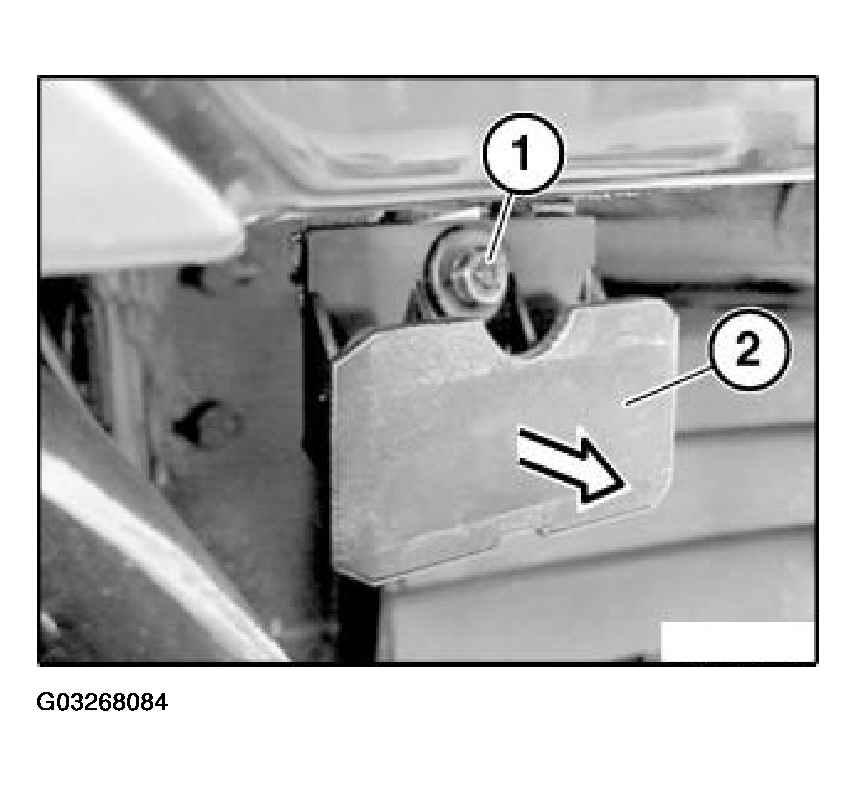

Release screw (1) and remove holder (2).

Fig 3: Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

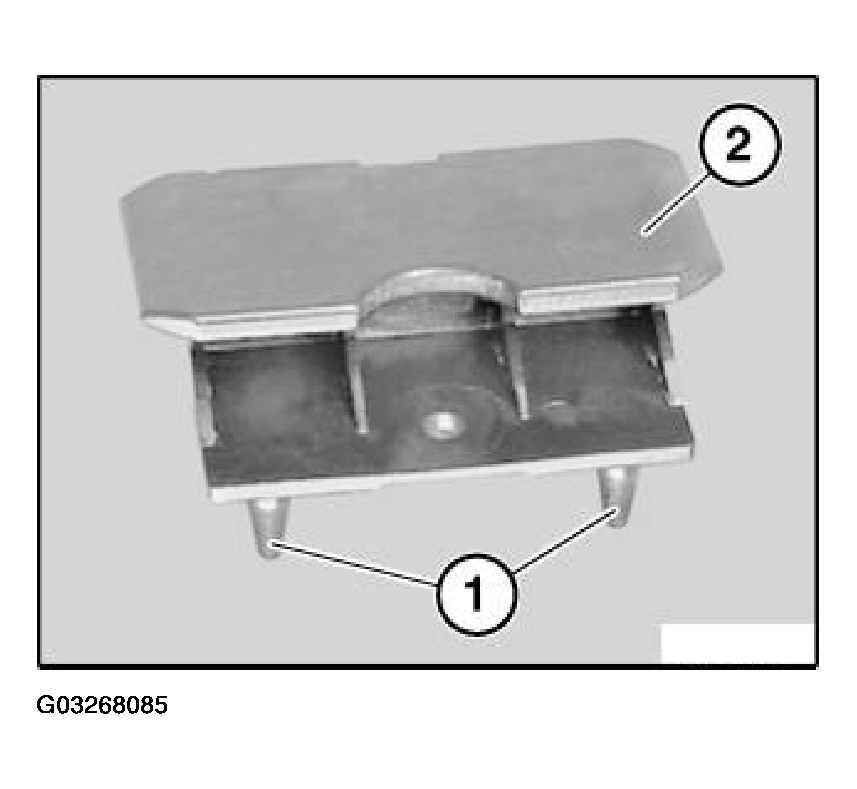

Guides (1) on holder (2) must not be damaged.

Fig 4: Identifying Guides On Holder

Courtesy of BMW OF NORTH AMERICA, INC.
