51 12 742 Replacing one impact absorber for rear bumper

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

(bumper removed)

If necessary, remove rear bumper. Refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER .
Remove support on side member, refer to 51 46 050 REMOVING AND INSTALLING/REPLACING FINISHER FOR TOP OF REAR APRON

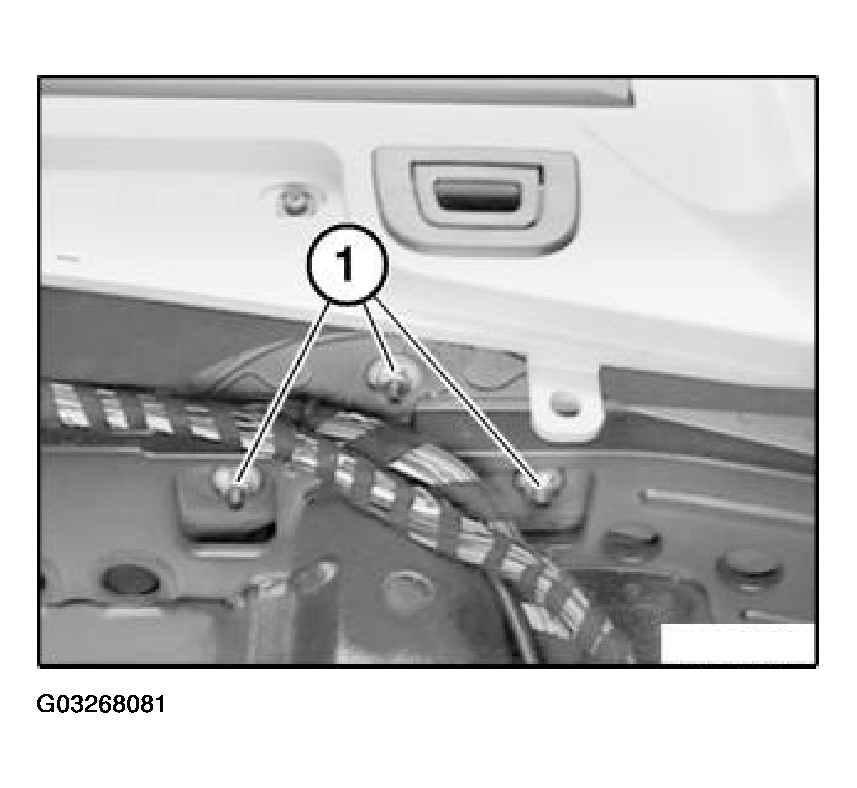

Release nuts (1) on inside and remove shock absorber.

Fig 1: Removing Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 51 12 3AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .
