51 12 742 Replacing a shock absorber for rear bumper (HP)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to KSD CD for details of preliminary tasks .

Release screw (1) and remove shock absorber (2).

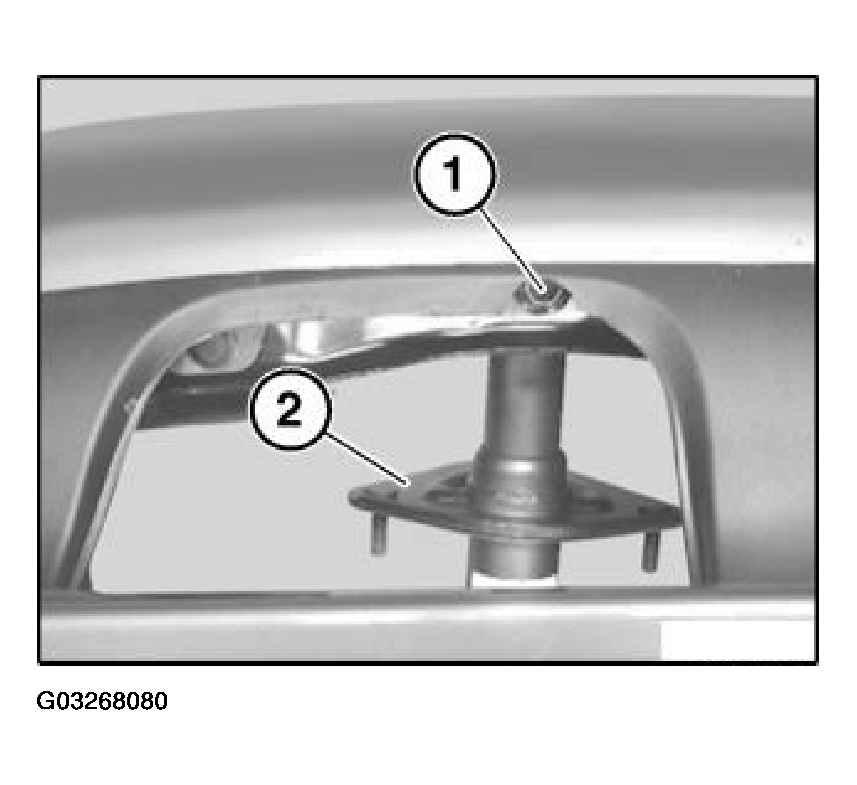

Fig 1: Removing Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe tightening torque, 51 12 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .
