51 12 000 Removing and installing complete rear bumper (HP)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to KSD CD for details of preliminary tasks .

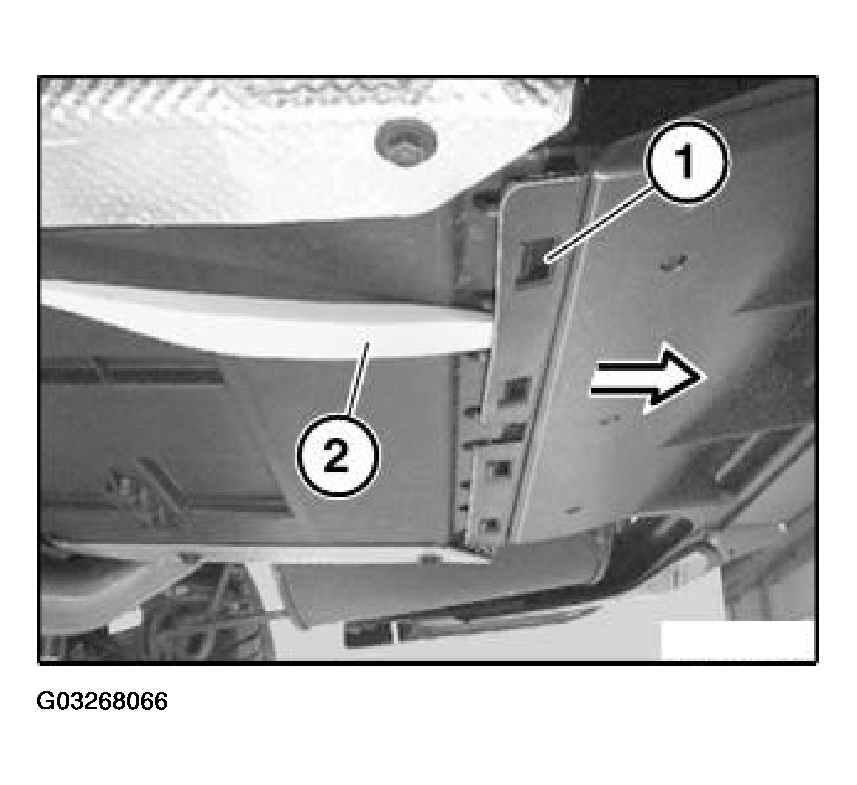

Unclip cover (1) with assembly wedge (2) and unhook in direction of arrow.

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

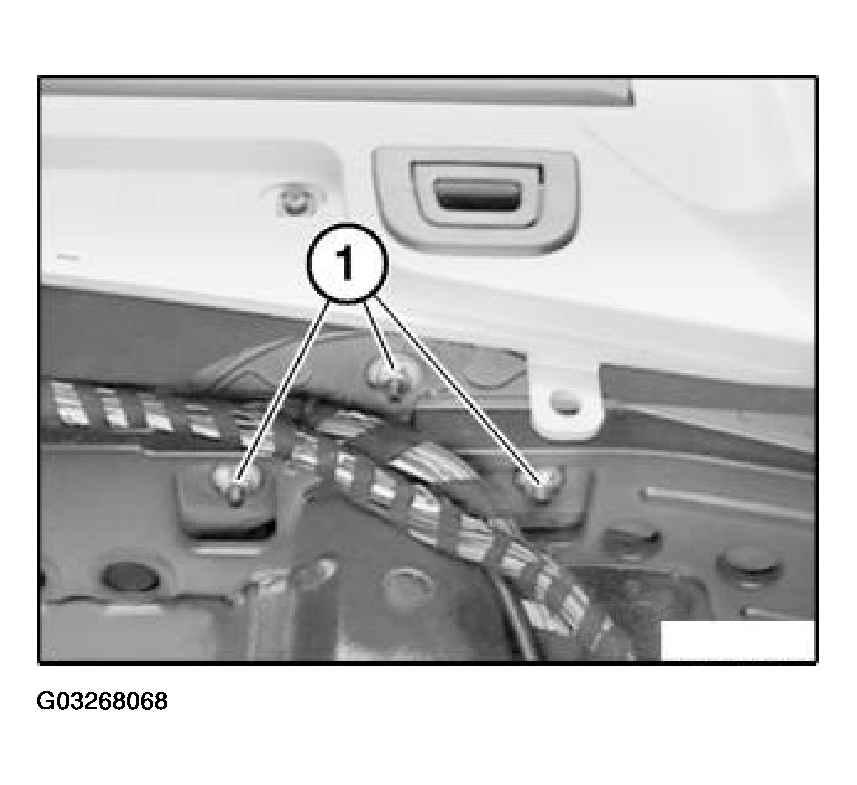

Release screws (1) on left and right.

Fig 2: Removing Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

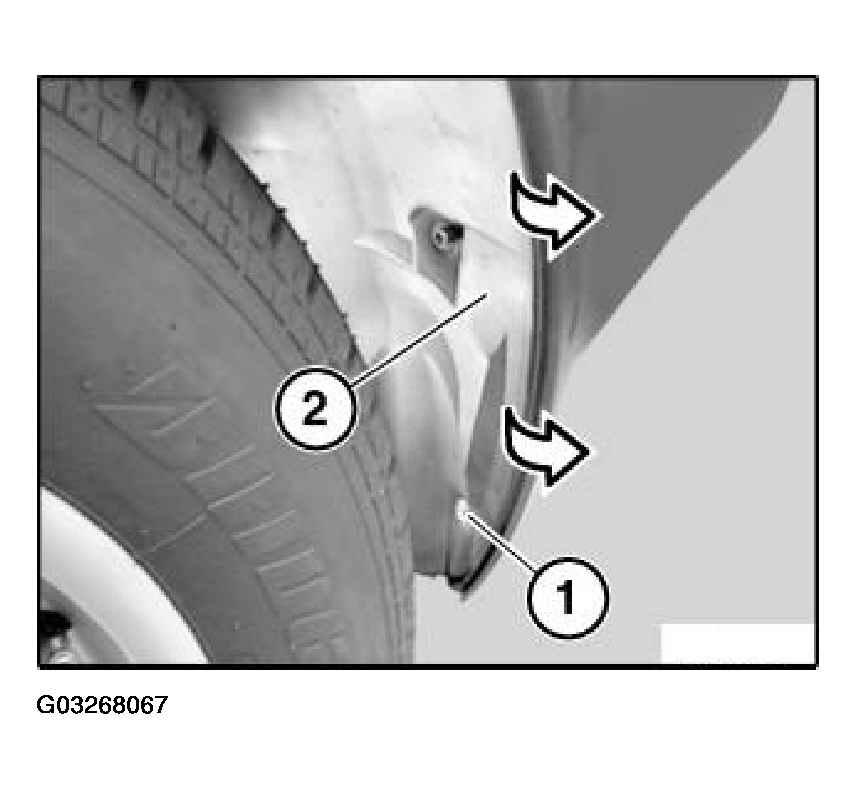

Lift out wheel arch trim (2) on left and right.

Release nuts (1) on left and right.

Fig 3: Releasing Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe tightening torque, 51 12 3AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Open rear lids.

Version with PDC option:

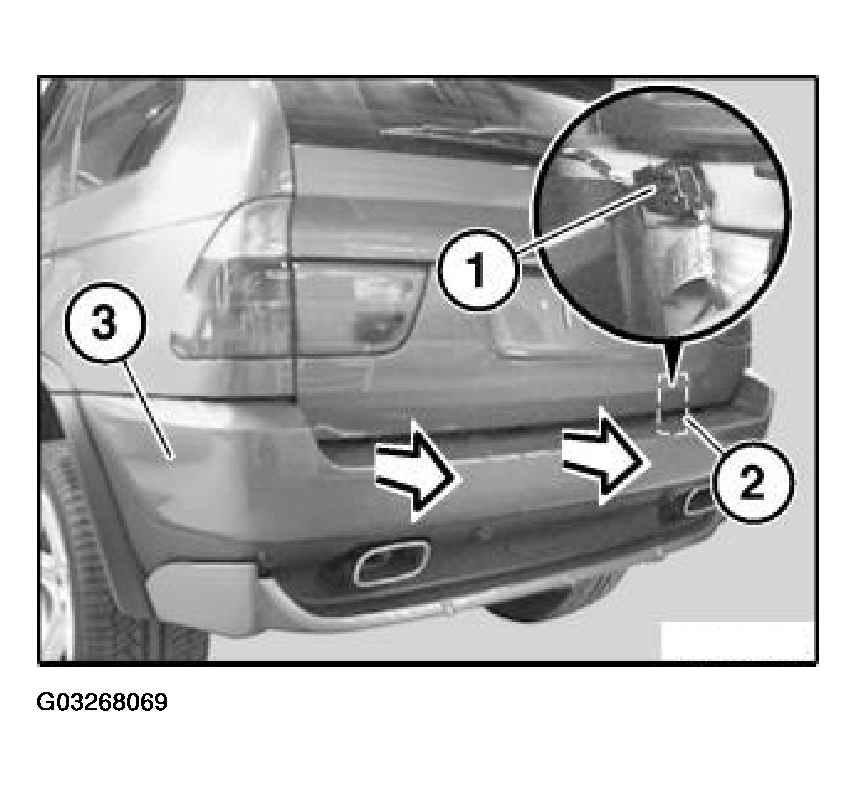

Disconnect plug connection (1) in area (2).

Fig 4: Removing Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off bumper (3) slightly towards rear, feed out PDC wiring harness in area (2).

Remove bumper (3) in direction of arrow.
