51 16 405 Removing and installing or replacing blind at side window of left or right rear door

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door trim panel. Refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Release screws (1).

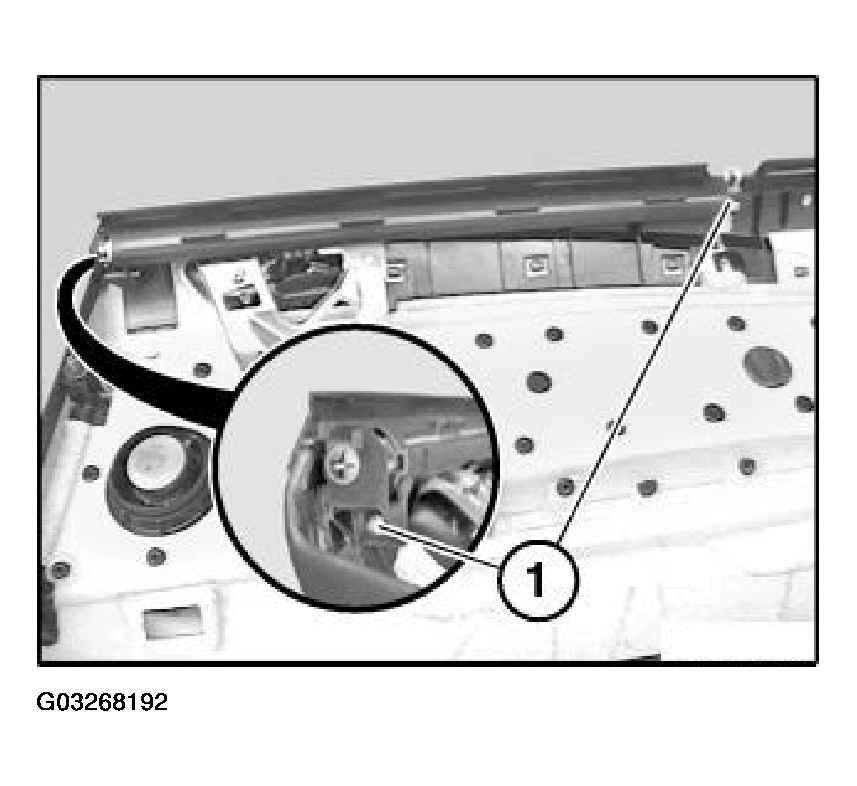

Fig 1: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Raise cover (1) and pull out roller sun blind (2).

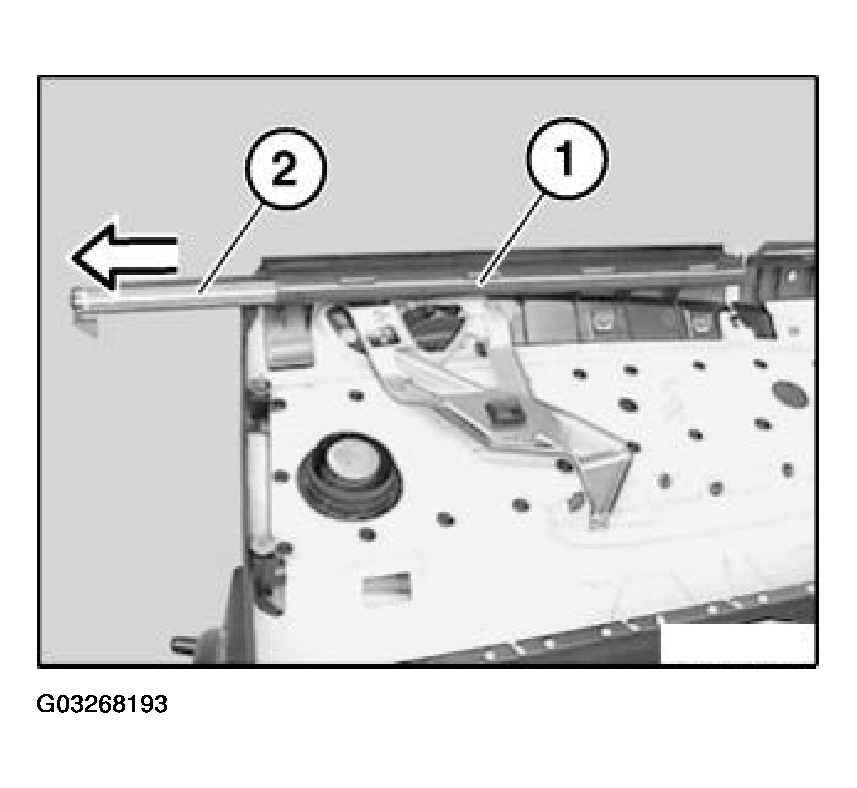

Fig 2: Pulling Out Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.
