51 16 210 Removing and installing/replacing trim for preselector knob

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Apply handbrake and move preselector knob (1) max. to rear (risk of damage to interior mirror).
Do not twist preselector knob (1) when removing; otherwise turning lock in knob (1) will be sheared off.

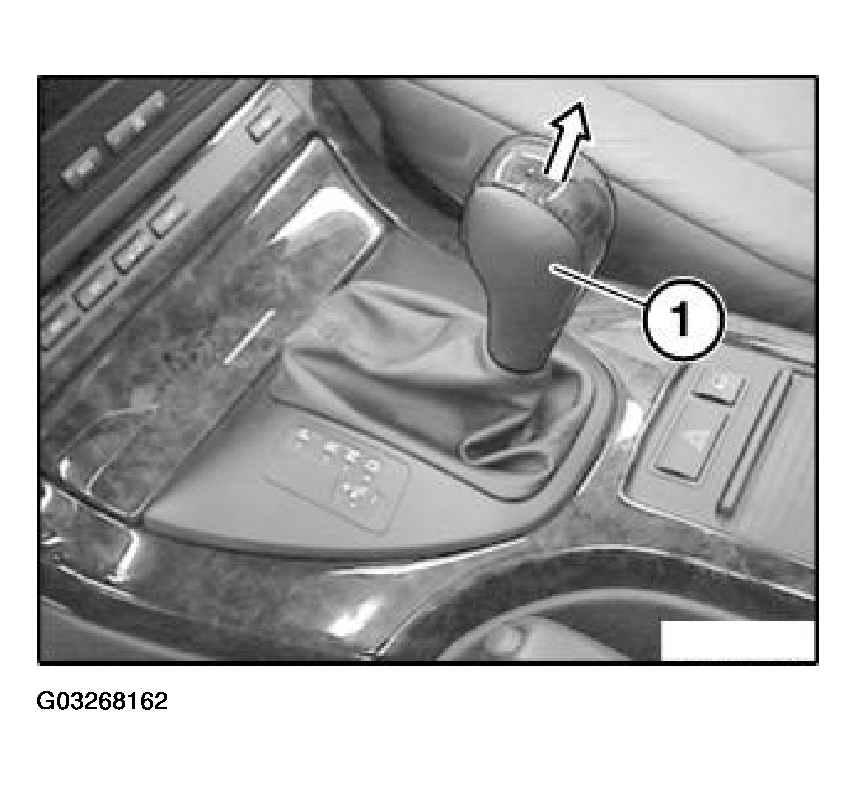

Pull off preselector knob (1) with a forceful jerk.

Fig 1: Removing Preselector Knob

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit preselector knob (1) onto selector lever, align and press down until it can be felt to snap into place.

Installation:

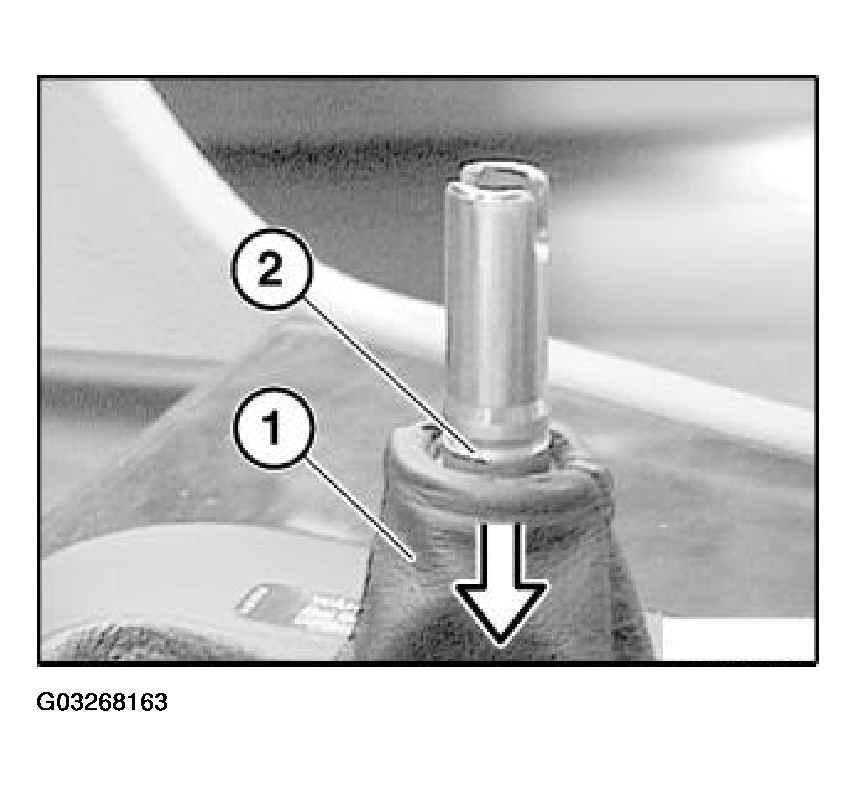

Push rubber gaiter (1) down until groove (2) is fully exposed.

Fig 2: Pushing Down Rubber Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

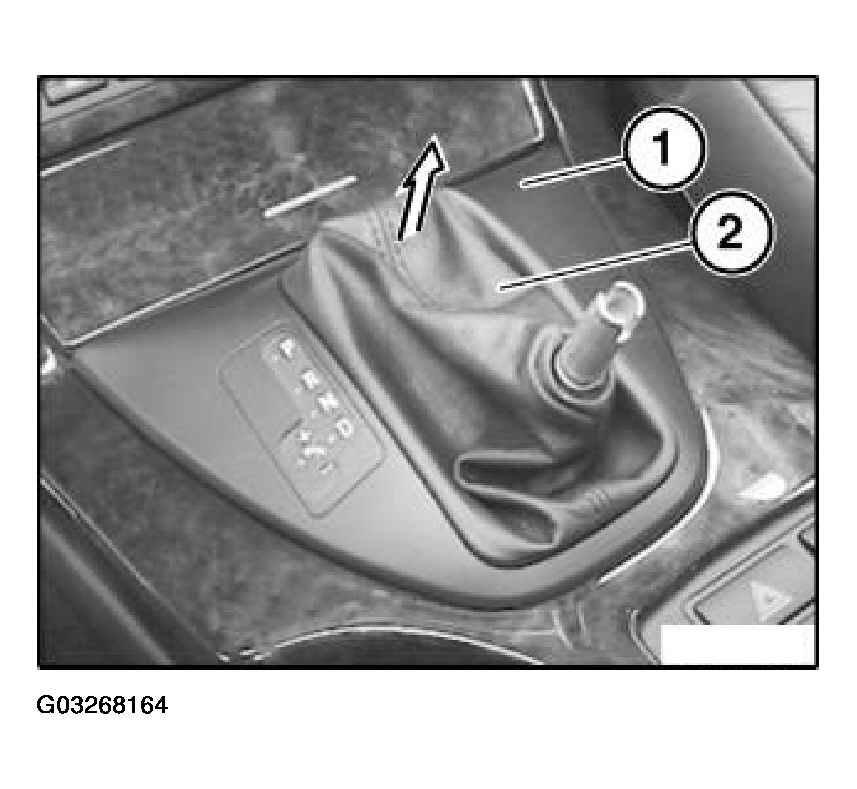

Remove trim (1) with rubber gaiter (2) from center console.

Fig 3: Removing Trim With Rubber Gaiter From Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

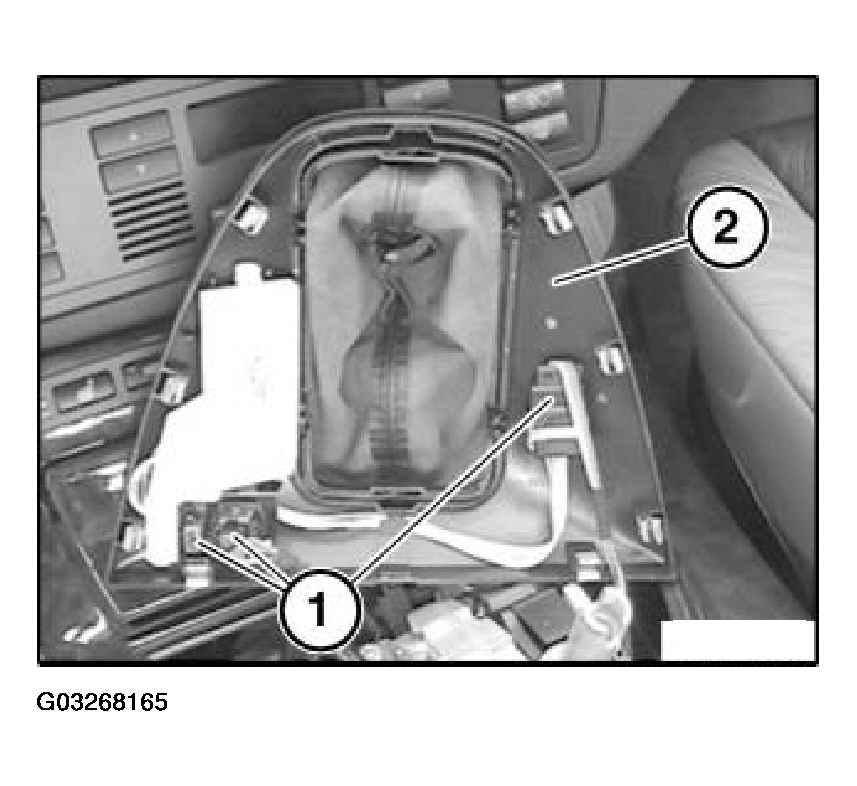

Disconnect plug connections (1) and remove trim (2).

Fig 4: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.
