51 36 040 Removing and installing/replacing strip on side window at rear bottom left or right

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 318

Carefully lever out strip (1) with special tool 00 9 318 from rear to front in direction of arrow.

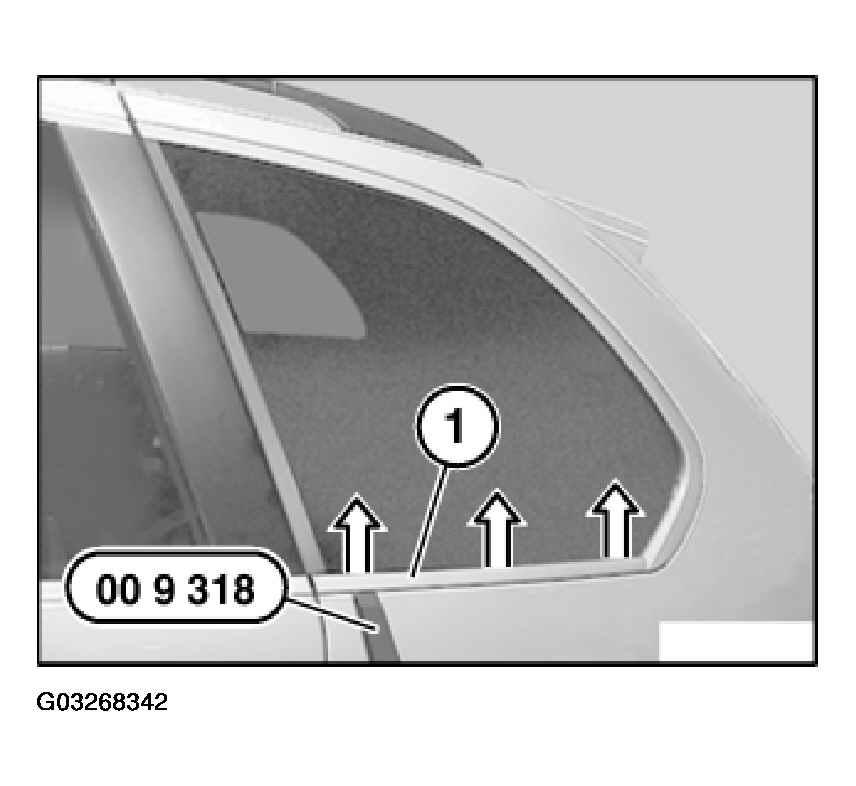

Fig 1: Removing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, detach clips from bridge (1). Bridge (1) must not be damaged.

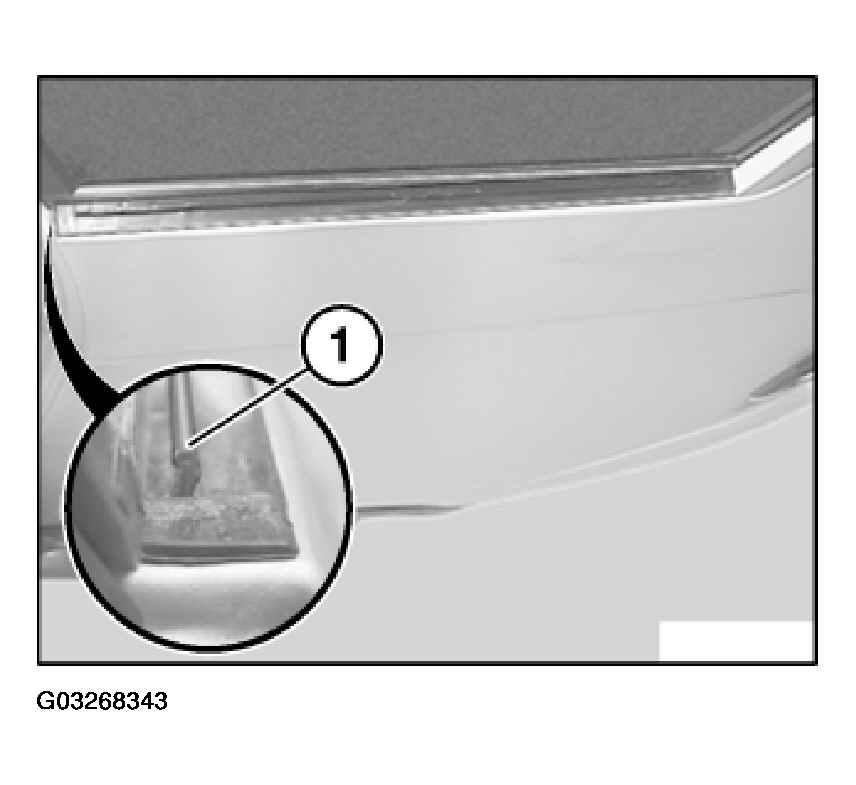

Fig 2: Detaching Clips From Bridge

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (2).

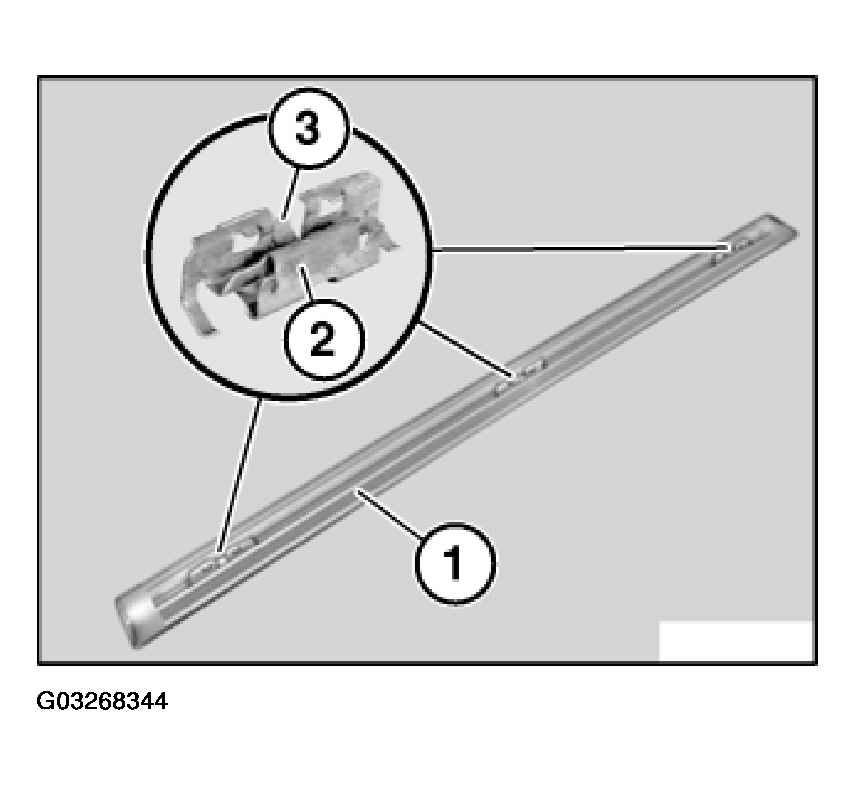

Fig 3: Attaching Clips To Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Attach clips (2) to strip (1).

Lock (3) must be correctly engaged in strip (1).
