51 36 035 Removing and installing/replacing trim on side window at top rear left or right

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 316
00 9 317

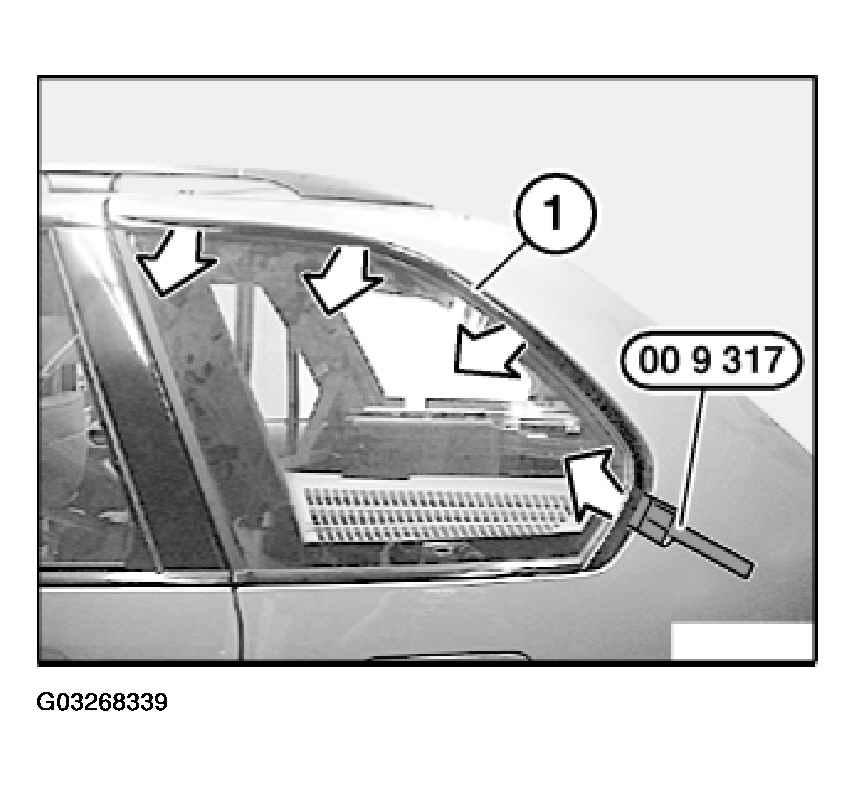

Carefully lever out trim (1) with special tool 00 9 317.

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

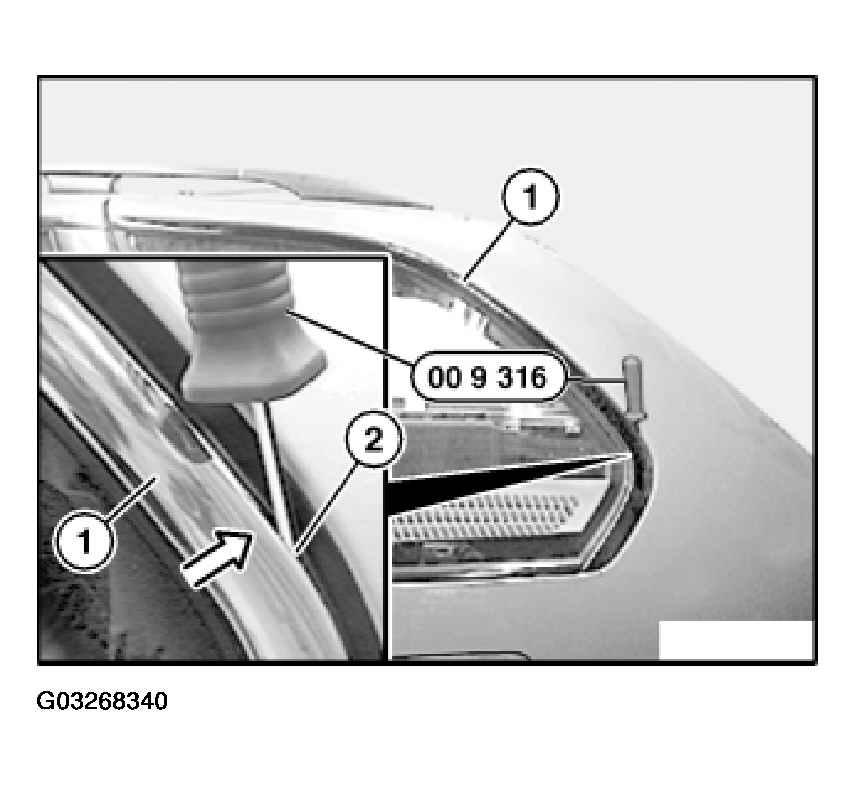

Fit trim (1), raise sealing lip (2) with special tool 00 9 316 and at same time snap trim (1) into place.

Fig 2: Fitting Trim
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

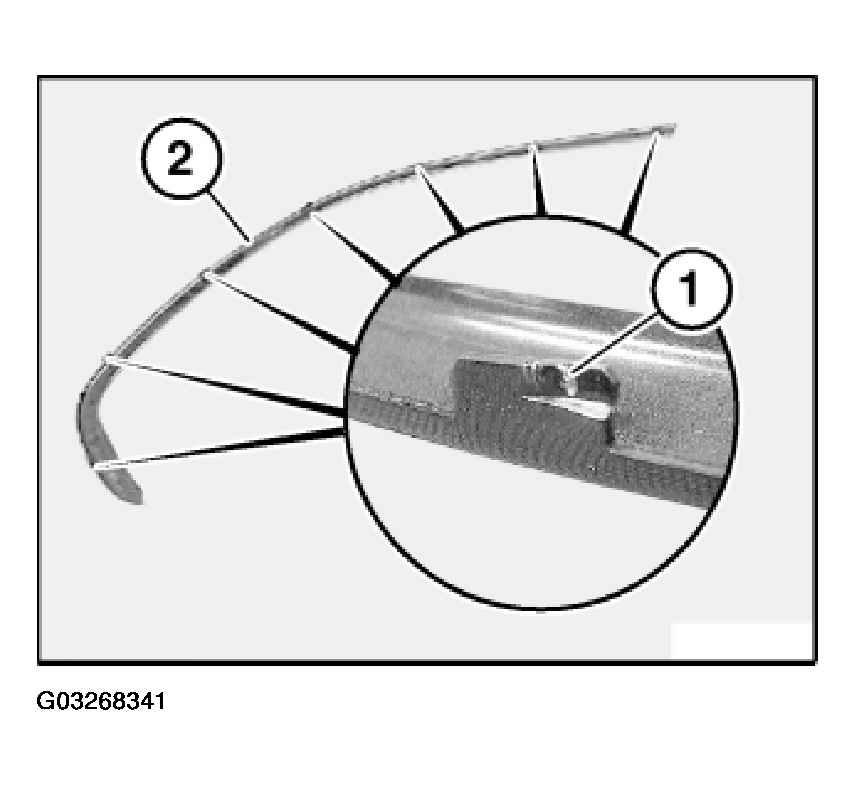

Catches (1) on trim (2) must not be damaged.

Fig 3: Identifying Catches On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

If trim (2) fails to engage correctly, bend catches (1) slightly.
