51 32 390 Removing and installing/replacing decorative strip on front left or right door

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove mirror on front door. Refer to 51 16 000 REMOVING AND INSTALLING/REPLACING MIRROR ON LEFT OR RIGHT FRONT DOOR .
Remove trim on window frame of front door. Refer to 51 32 420 REMOVING AND INSTALLING/REPLACING FINISHER ON FRONT DOOR WINDOW FRAME, LEFT OR RIGHT .
Remove cover (anti-trap protection) on inside of door window frame. Refer to 51 34 160 REMOVING AND INSTALLING/REPLACING COVER (ANTI-TRAPPING PROTECTION) ON DOOR WINDOW FRAME (REAR DOOR), INSIDE LEFT OR RIGHT .
Open door window.

Pull off window rubber guide (1) in area of decorative strip (2).

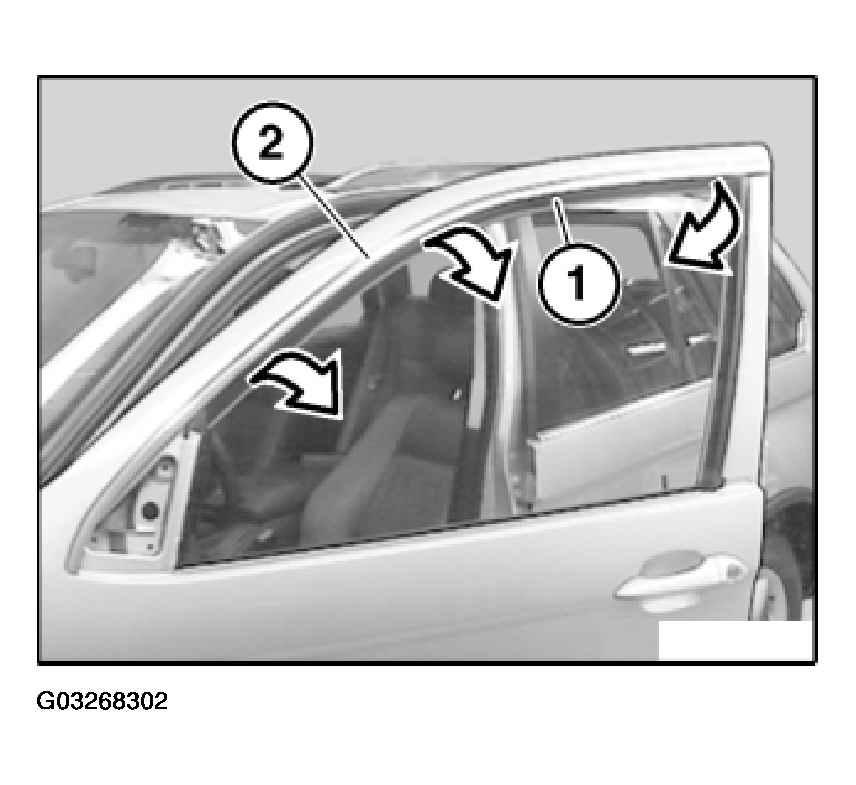

Fig 1: Pulling Off Window Rubber Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

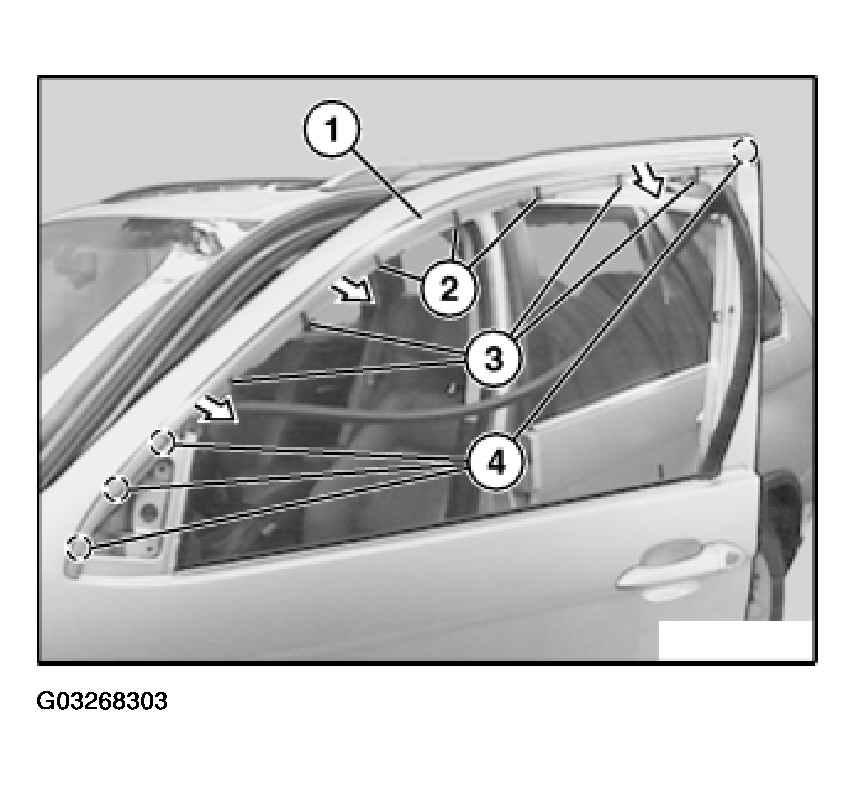

Fig 2: Detaching Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully unclip clips (4).

Detach decorative strip (1) outwards from clips (3).

Installation:

If necessary, replace faulty clips (1) and grommets (2).

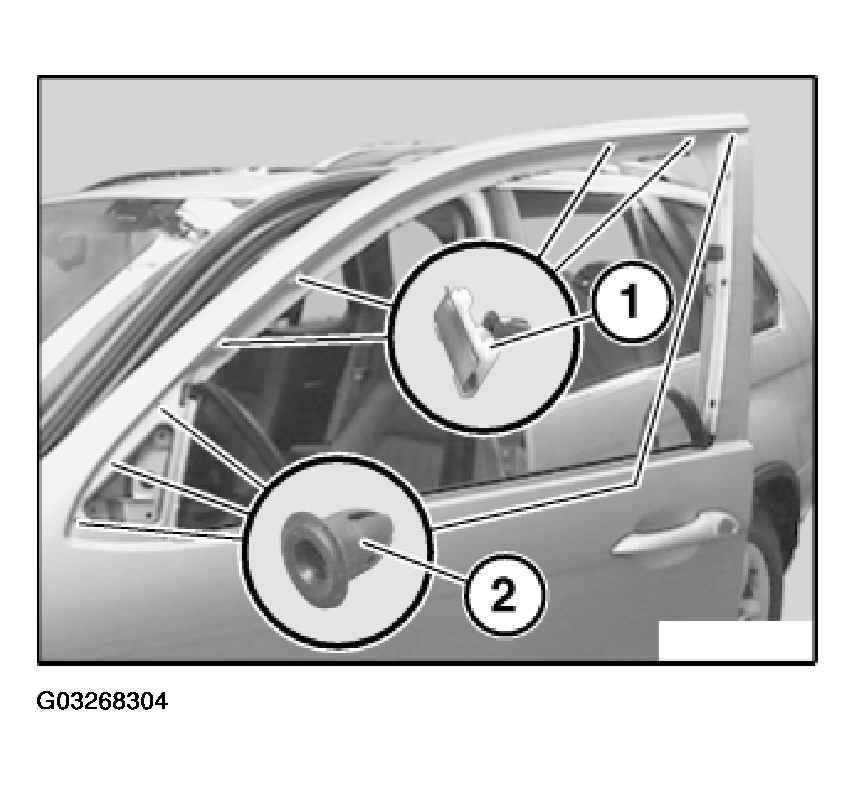

Fig 3: Replacing Faulty Clips And Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace defective clip (1).

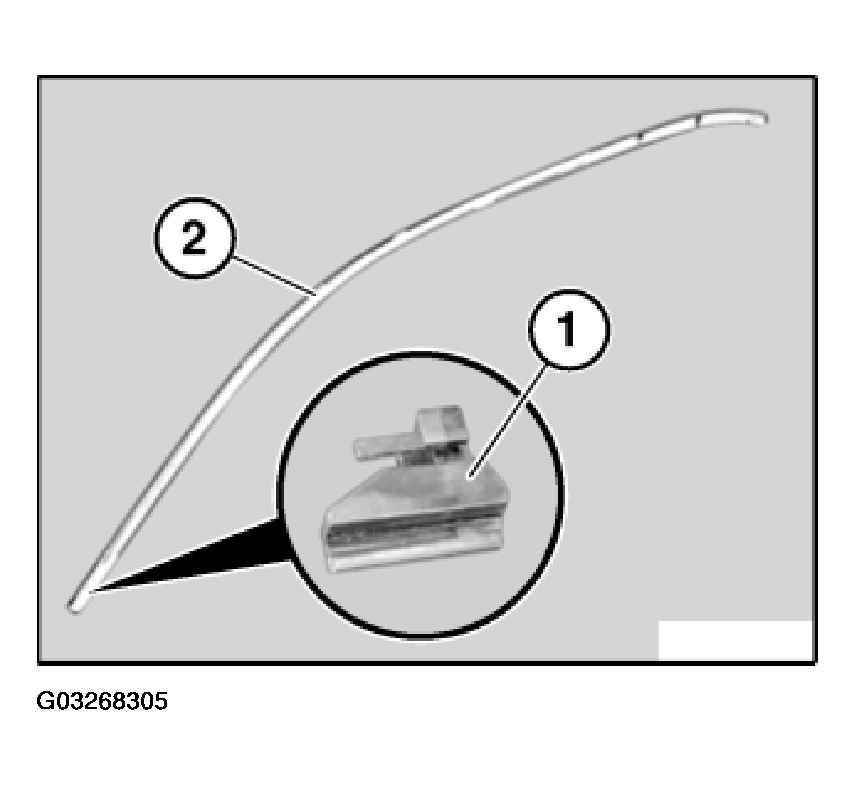

Fig 4: Replacing Defective Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace defective clips (1).

Fig 5: Replacing Defective Clips

Courtesy of BMW OF NORTH AMERICA, INC.

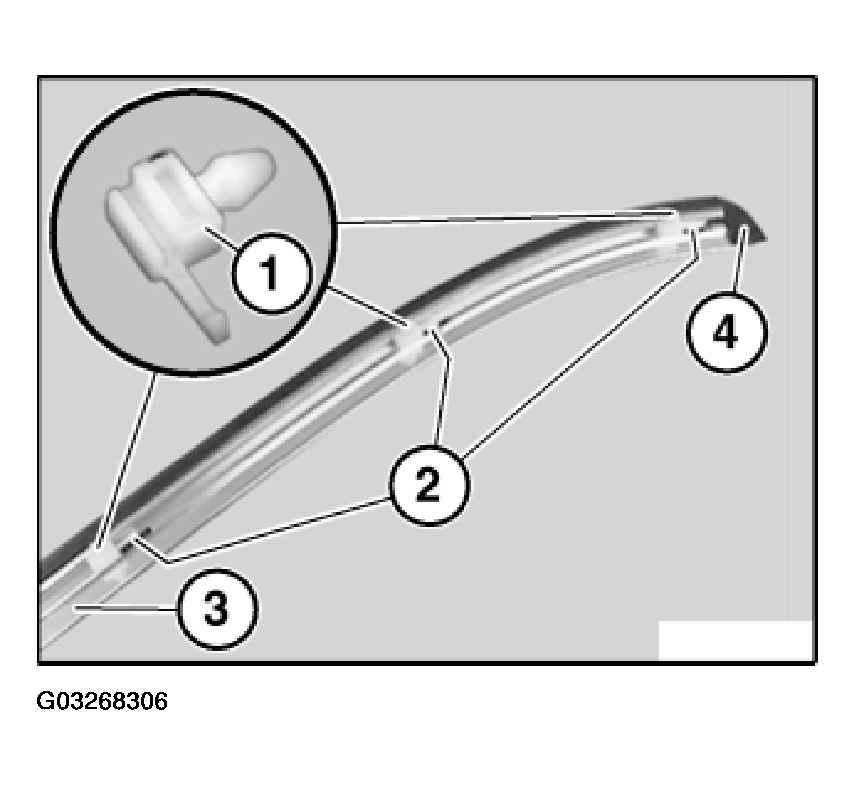

Decorative strip (3) incorporates notches (2) for positioning of clips (1).

After installing clips (1), reinsert seal (4) in guide of decorative strip (3).
