51 33 000 Removing and installing power window regulator in left or right front door

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove door window glass. Refer to 51 32 170 REMOVING AND INSTALLING/REPLACING DOOR WINDOW GLASS, FRONT LEFT OR RIGHT .

Remove speaker in front door. Refer to 65 12 000 REMOVING AND INSTALLING/REPLACING SPEAKER (FRONT LEFT OR RIGHT DOOR) .

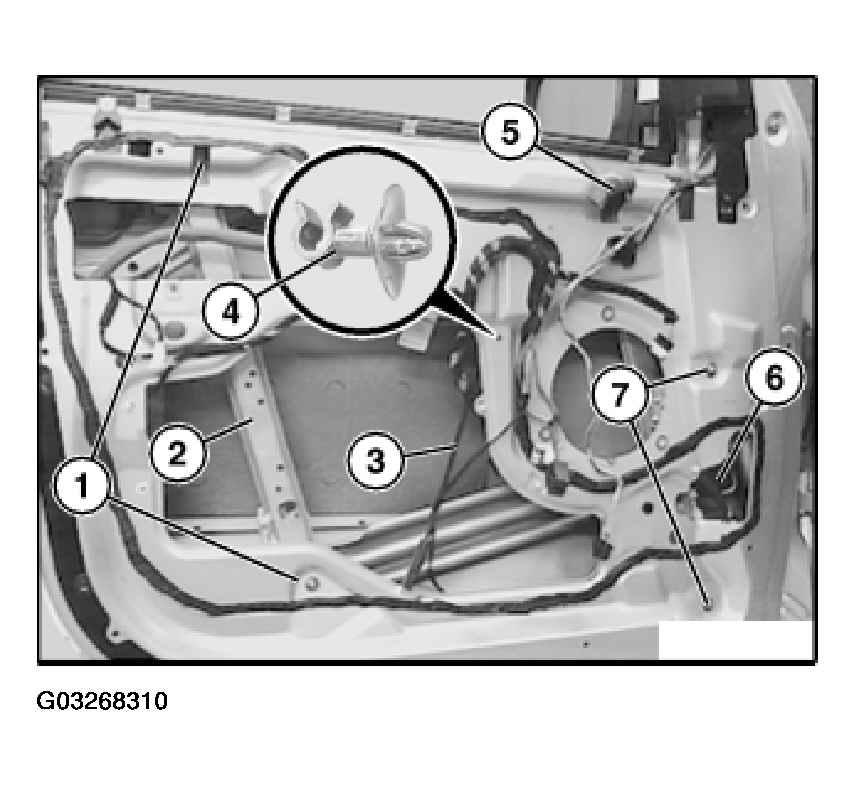

Release nuts (1) and feed rear section (2) of window regulator out of front door.

Fig 1: Releasing Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook cable (3) from clip (4).

Lever out foam (5) and release nut underneath.

Disconnect plug connection (6) if necessary.

Release nuts (7).

Installation:

Tightening torque 51 33 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

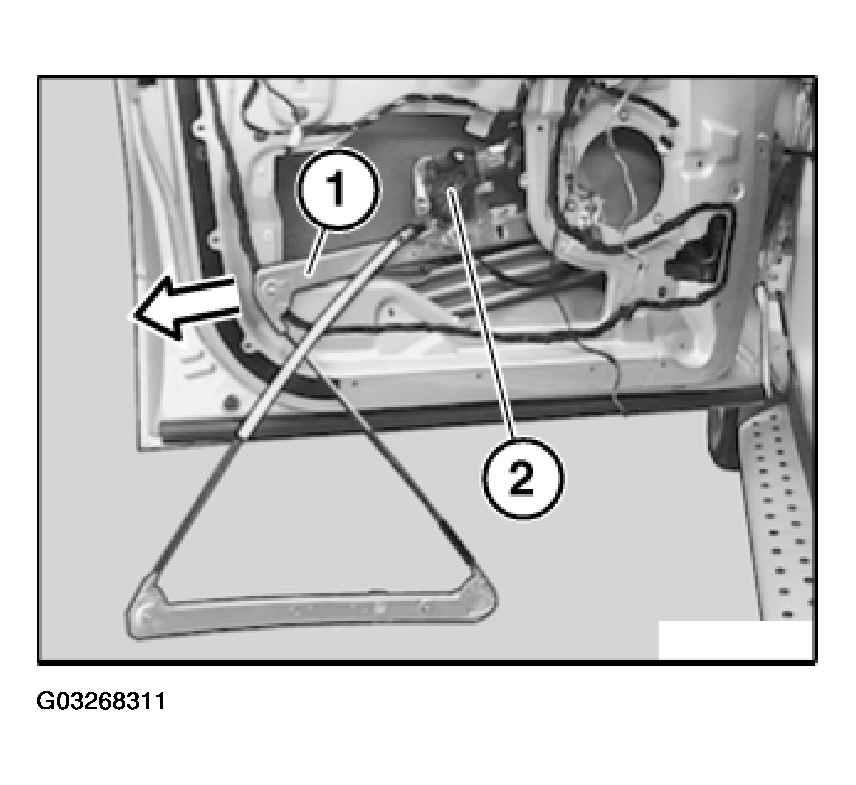

Feed rear section of window regulator (1) with drive mechanism (2) out of front door.

Fig 2: Removing Rear Section Of Window Regulator

Courtesy of BMW OF NORTH AMERICA, INC.

Only replacement:

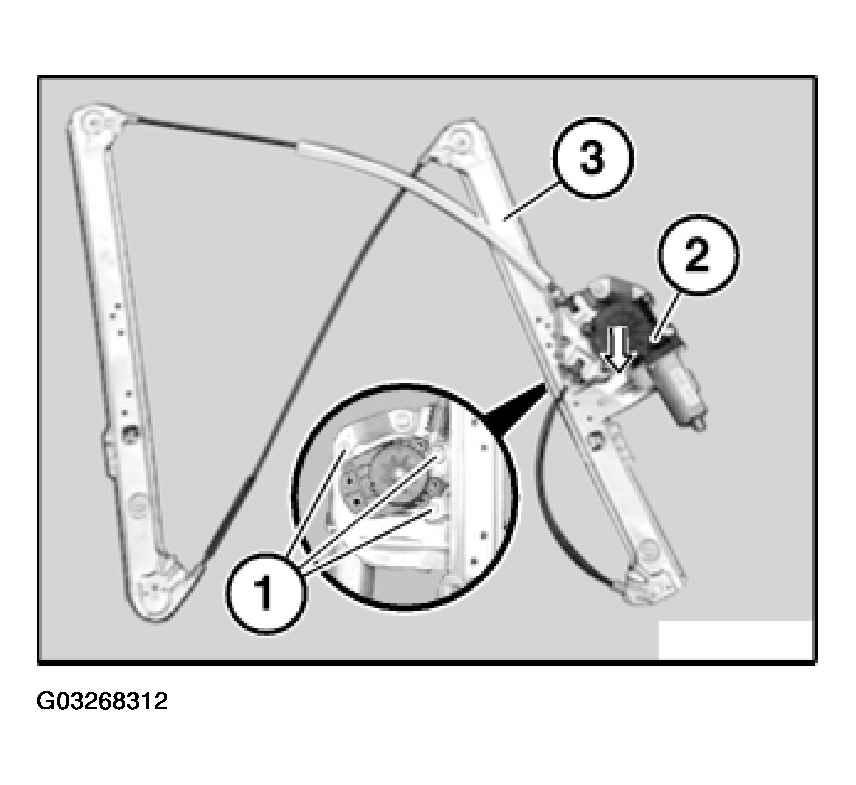

Release screws (1) and detach drive mechanism (2) from window regulator (3).

Fig 3: Detaching Drive Mechanism From Window Regulator

Courtesy of BMW OF NORTH AMERICA, INC.
