51 21 351 Replacing window cavity seal on left or right front door

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Pull off window cavity seal (1) towards top.

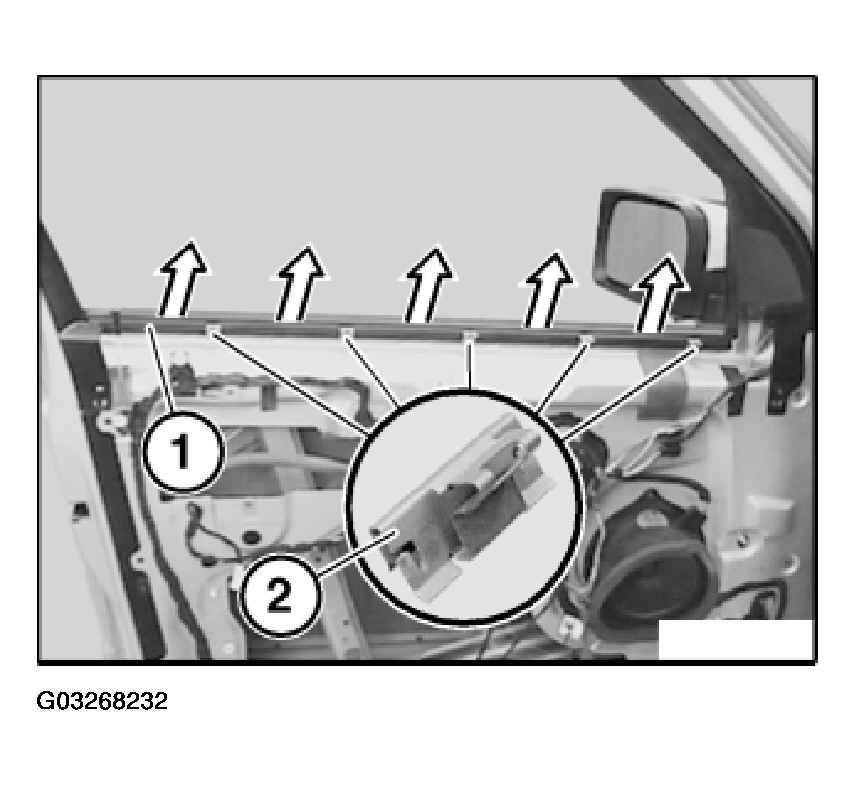

Fig 1: Removing Window Cavity Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (2).

For installation, coat window cavity seal (1) with turpentine substitute.
