51 11 050 Removing and installing/replacing member (cross-member) for front bumper trim

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove underride protection, refer to 51 71 378 REMOVING AND INSTALLING/REPLACING UNDERRIDE PROTECTION

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Lever lower trim (3) out of guide (1).

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

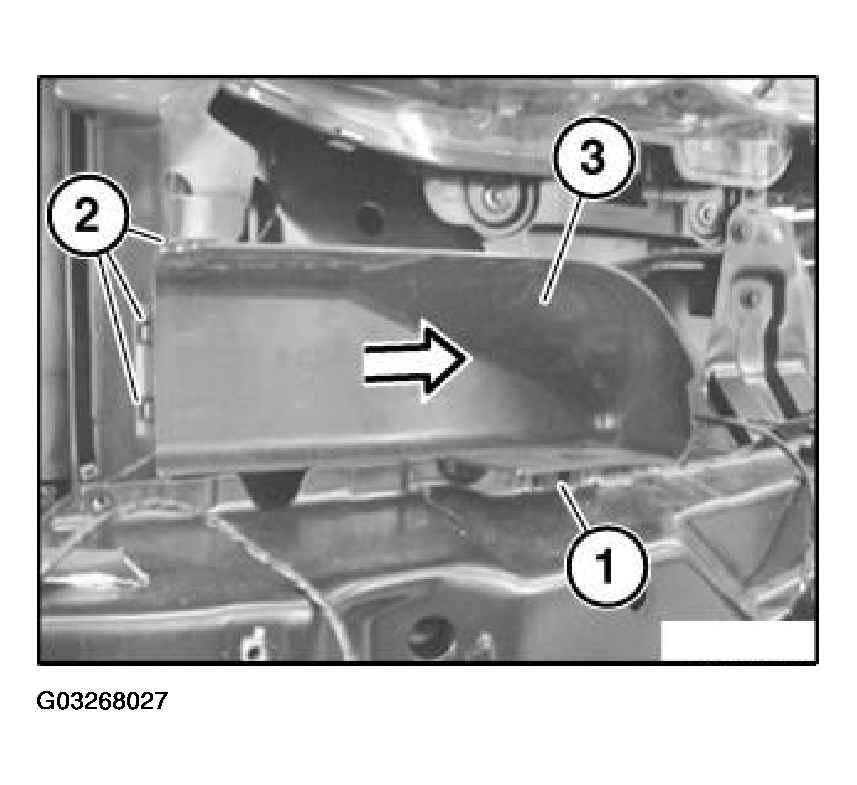

Unlock catches (2) and remove trim (3) in direction of arrow.

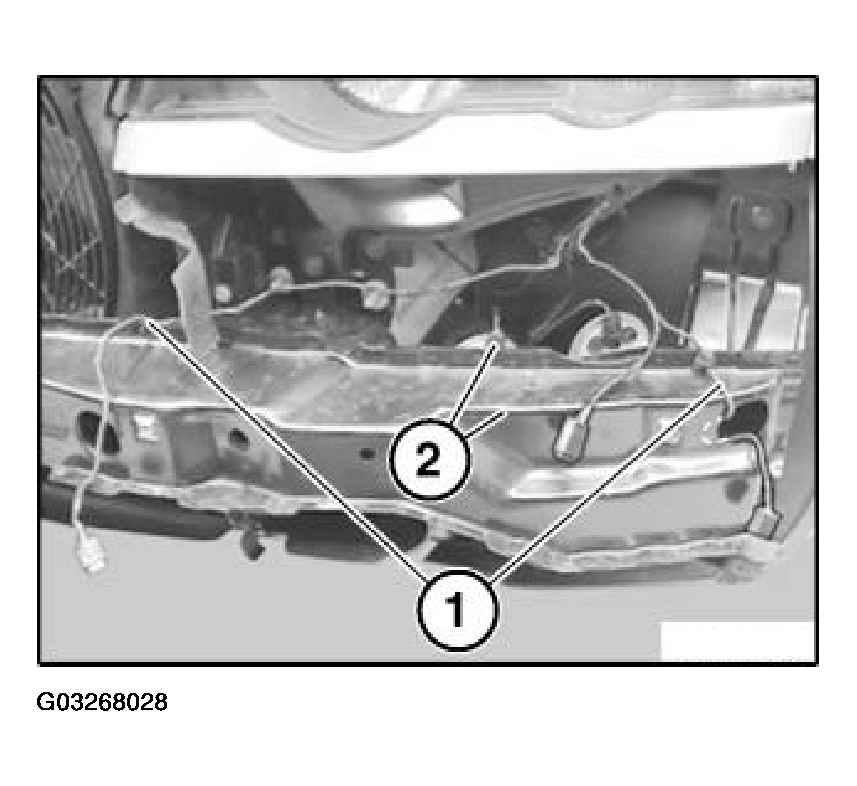

Release cable ties (1).

Fig 2: Disconnecting Plug Connections For Fanfare Horns

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (2) for fanfare horns.

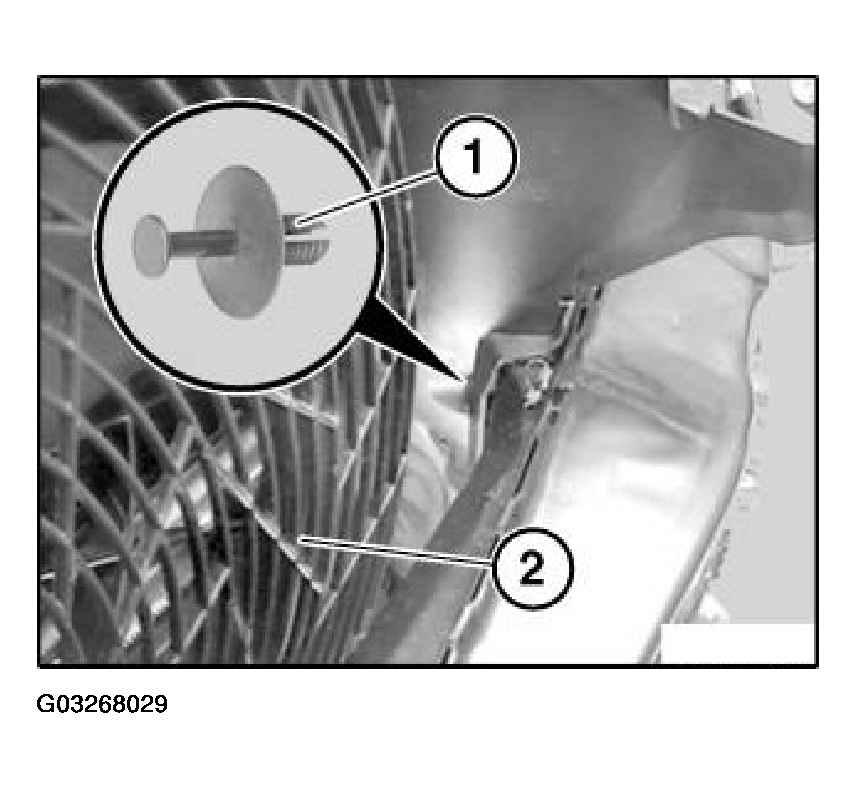

Release expander rivet (1) from fan impeller (2).

Fig 3: Releasing Expander Rivet From Fan Impeller

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For vertical adjustment, mark position of member (3).

Fig 4: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

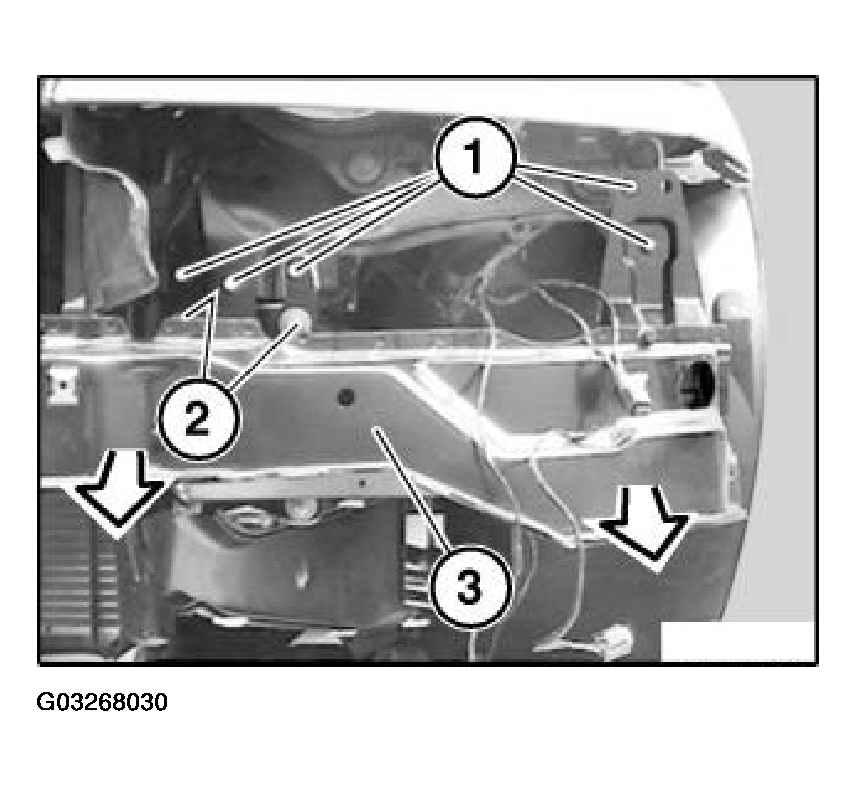

Release screws (1).

Release nuts (2) and remove member (3) towards front.

Installation:

Adjust gap dimensions.

Installation:

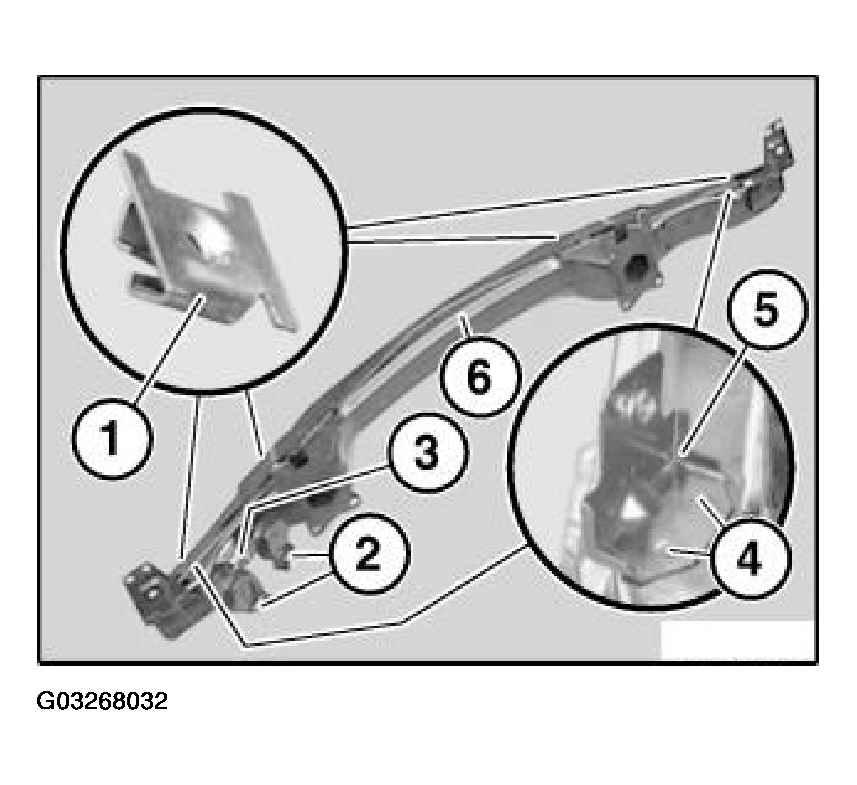

If necessary, replace faulty metal nuts (1).

Fig 5: Replacing Faulty Metal Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Stud bolts (2) on member (3) must not be damaged.

Installation:

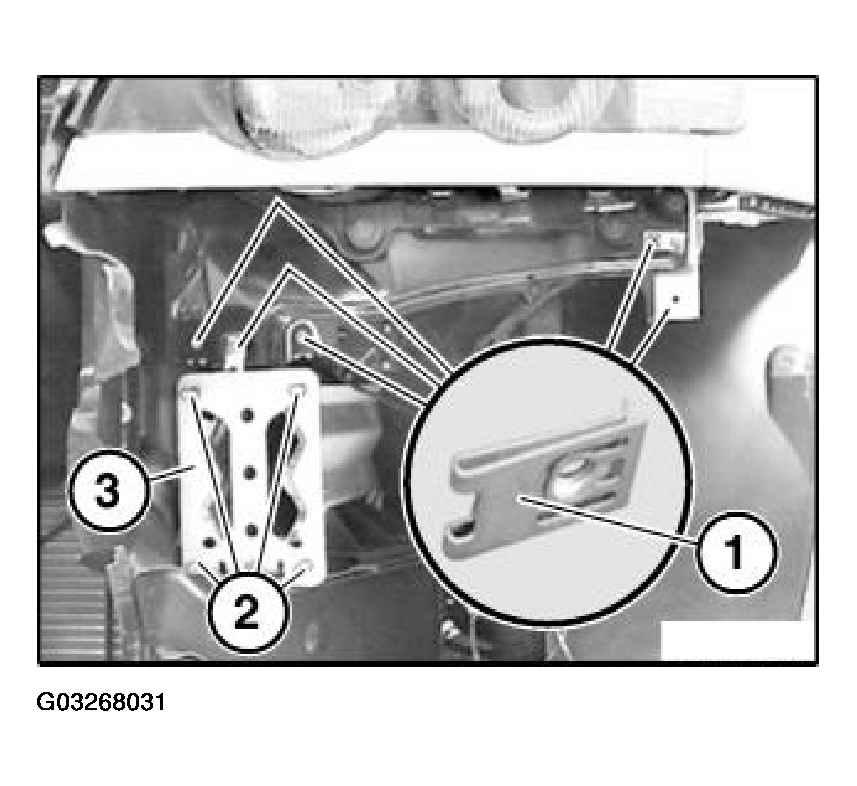

If necessary, replace faulty metal nuts (1) on member (6).

Fig 6: Locating Member Components

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release nut (3) and remove fanfare horns (2).

Version up to 10/03:

Release welding spots (4), remove holder (5) and protect bright metal plate against rusting.
