37 14 525 Replacing control unit for air supply unit (two-axle ride-height control)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove glovebox, refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVEBOX

Remove air duct.

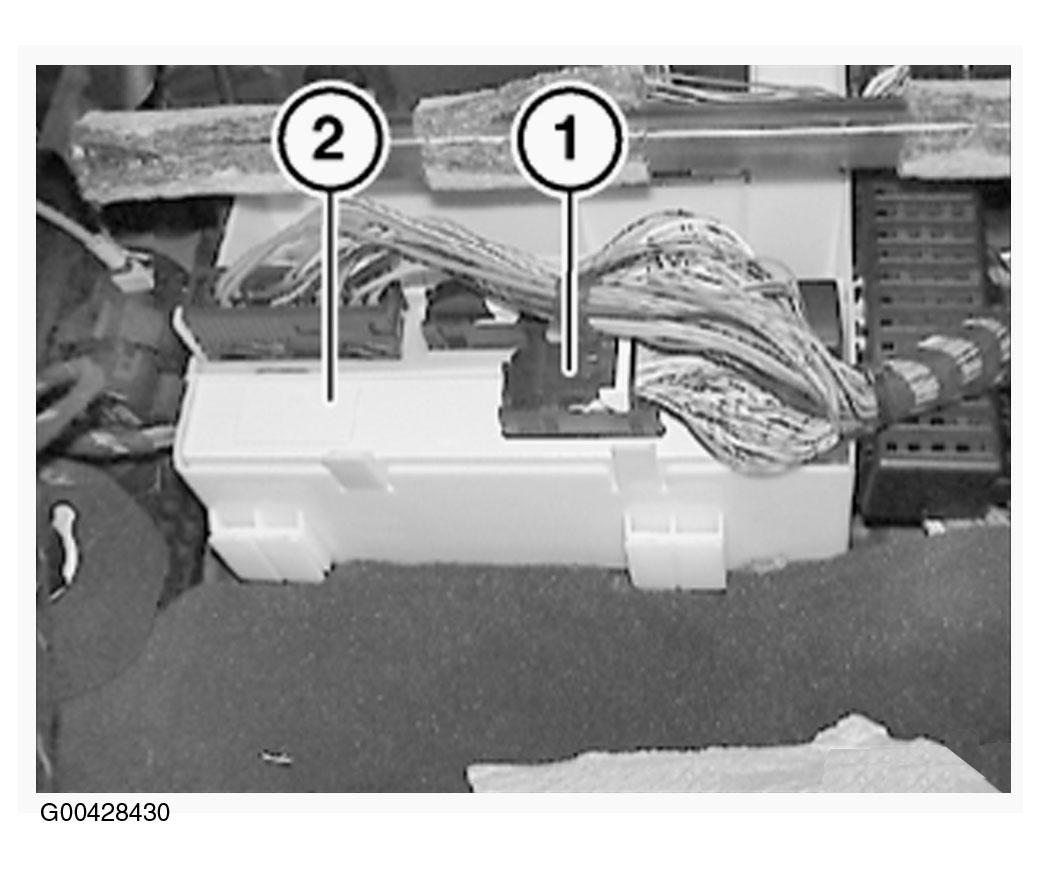

Disconnect plug connection (1). Unclip control unit for air supply unit (2).

Fig 1: Removing Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out ride-height-calibration, refer to 37 12 012 CARRY OUT RIDE-HEIGHT CALIBRATION
