37 14 525 Replacing control unit for air supply unit (ride-height control)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage! Do not kink, twist or crush pipes.

Release air supply unit and place to one side. Refer to 37 22 540 REPLACING AIR SUPPLY UNIT (RIDE-HEIGHT CONTROL) .

Release screw (1) and nuts (4).

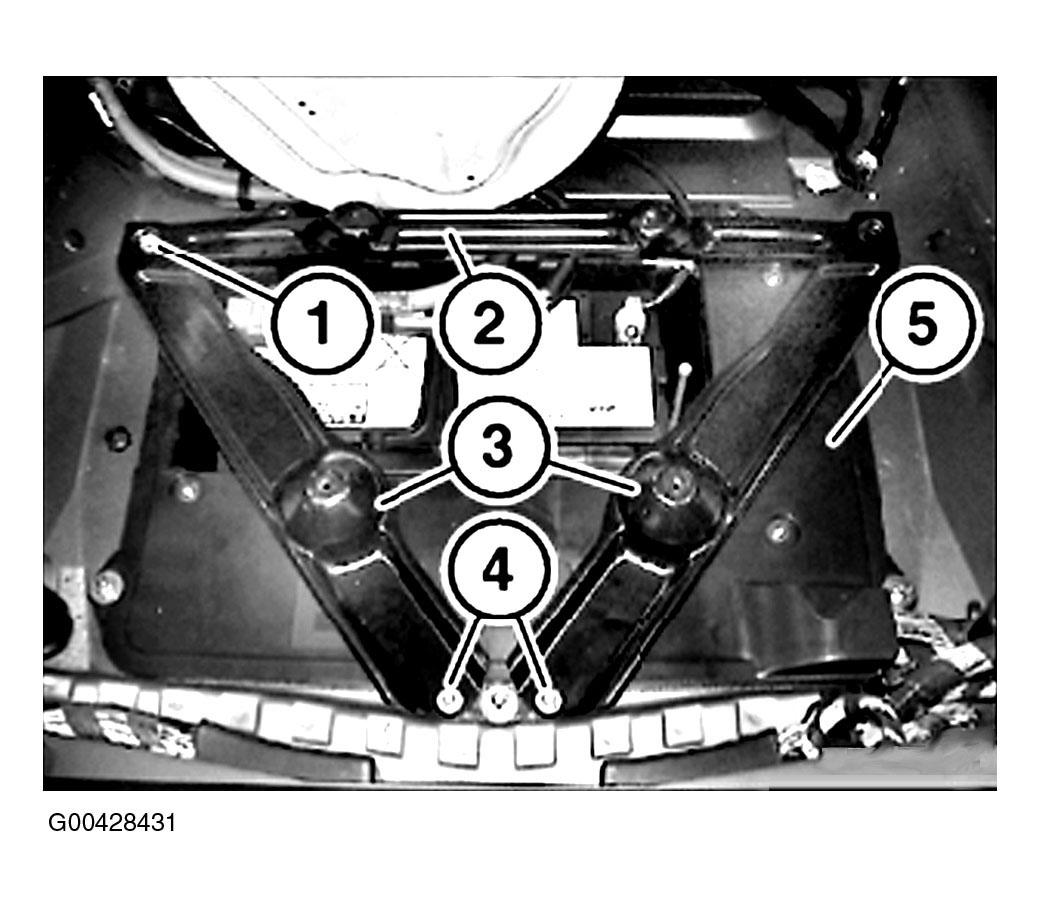

Fig 1: Removing Cover For Multifunction Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rail (2) and both pull straps (3).

Remove cover for multifunction tray (5).

Disconnect plug connection (1). Release lock (2) and lift out control unit for air supply unit.

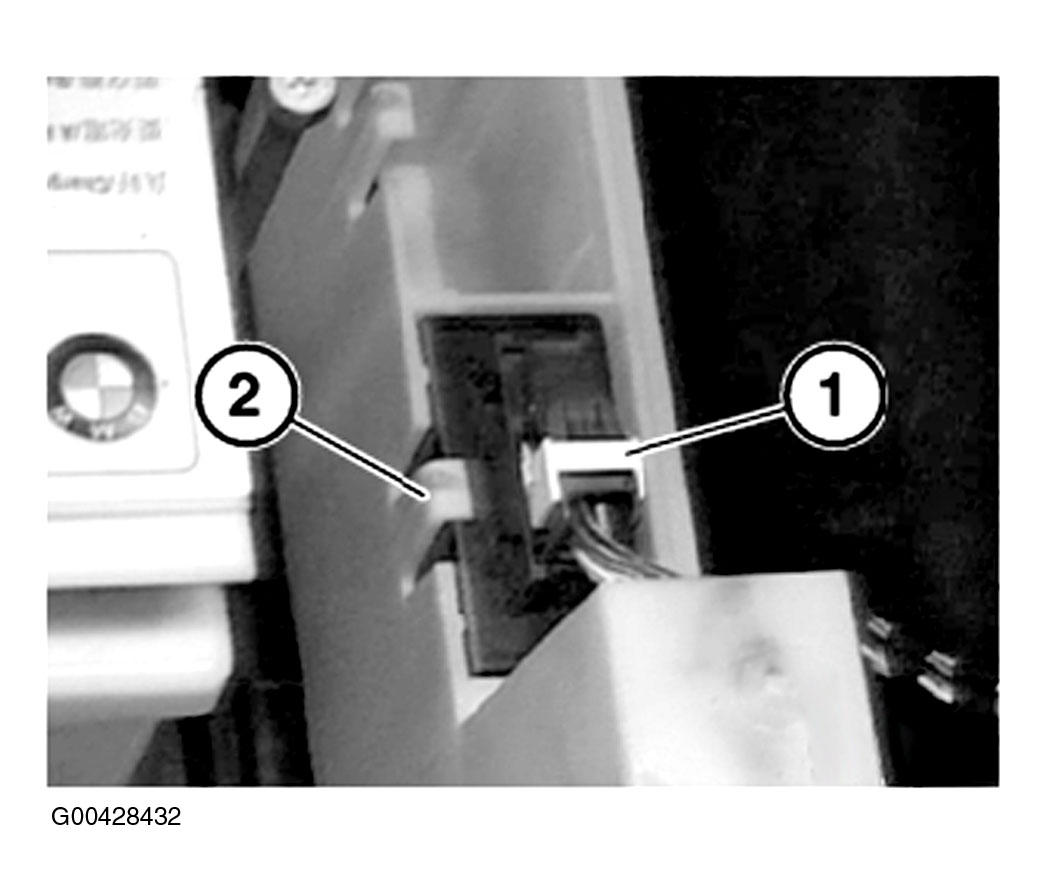

Fig 2: Removing Control Unit For Air Supply Unit

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out ride-height-calibration, refer to 37 12 012 CARRY OUT RIDE-HEIGHT CALIBRATION
