37 14 511 Replacing front ride-height sensor
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE
.
After installation:
- Check headlight adjustment, correct if necessary, refer to 63 10 004 ADJUSTING HEADLIGHTS
- Version with ride-height control: Carry out ride-height calibration, refer to 37 12 012 CARRY OUT RIDE-HEIGHT CALIBRATION
- Initialize Run Flat Indicator, refer to 36 11 000 INITIALIZING TIRE DEFECT INDICATOR (RPA)

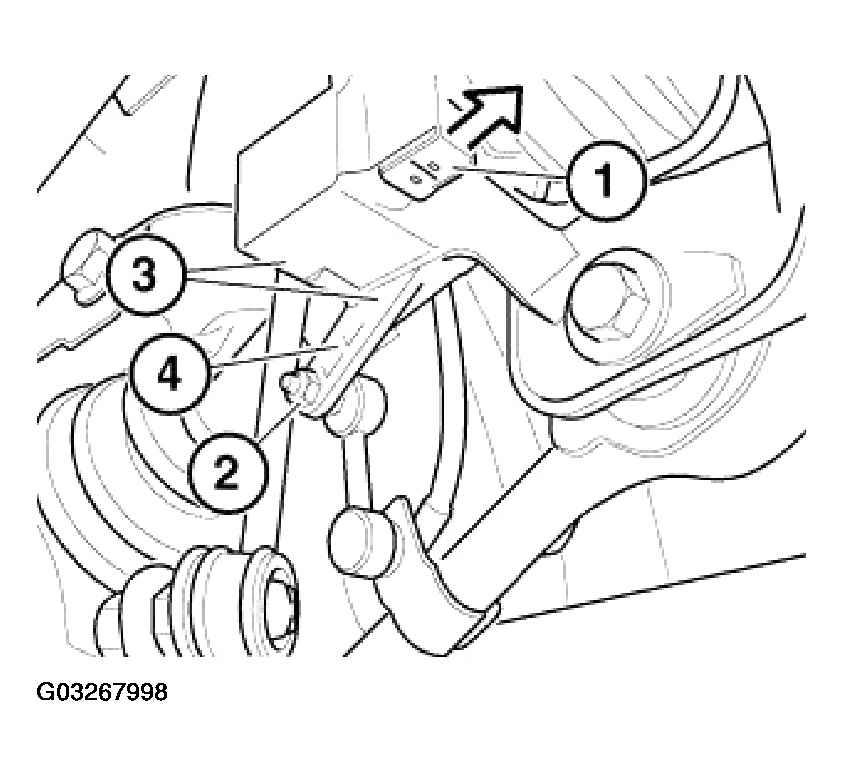

Disconnect plug connection (1).
Release nut (2) and disconnect jointed rod.
Tightening torque 37 14 7AZ. Refer to INTEGRATED SUSPENSION SYSTEMS - TIGHTENING TORQUES X5 (4.4i) N62 .
Unfasten screws (3) and remove ride-height sensor.
Installation:
Sensor lever must point outwards from ride-height sensor.
Tightening torque 37 14 6AZ. Refer to INTEGRATED SUSPENSION SYSTEMS - TIGHTENING TORQUES X5 (4.4i) N62 .

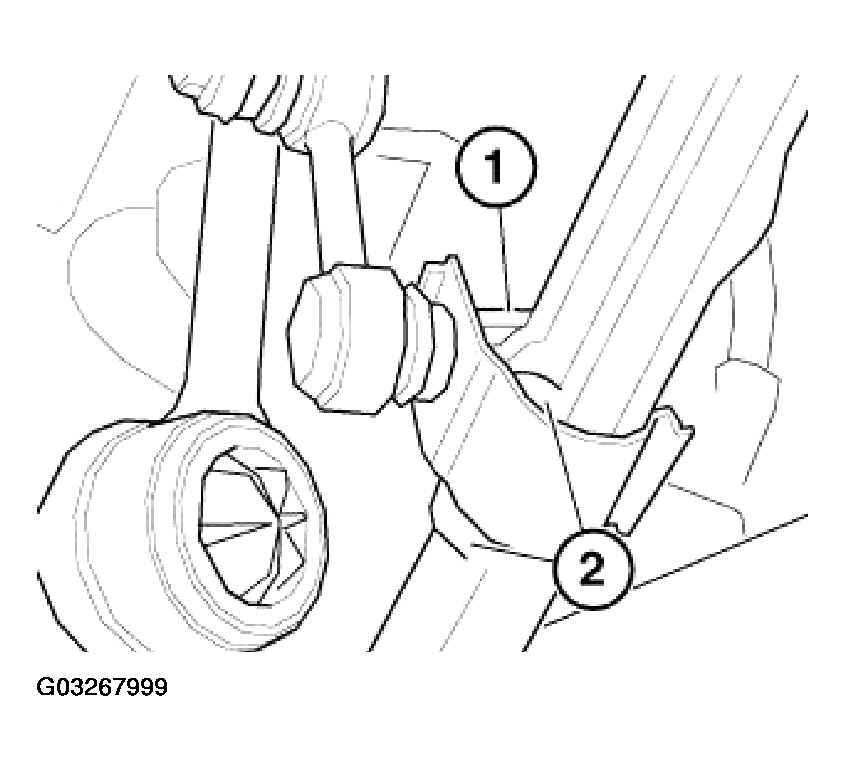

Slacken nut (1).
Installation:
Holder must be located between both cast lugs (2).
Tightening torque 37 14 7AZ. Refer to INTEGRATED SUSPENSION SYSTEMS - TIGHTENING TORQUES X5 (4.4i) N62 .
