36 11 522 Removing and installing/replacing front receiving antenna for RDC

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Remove wheel,
refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
Remove wheel arch trim.

Unfasten plug connection (1) and disconnect.

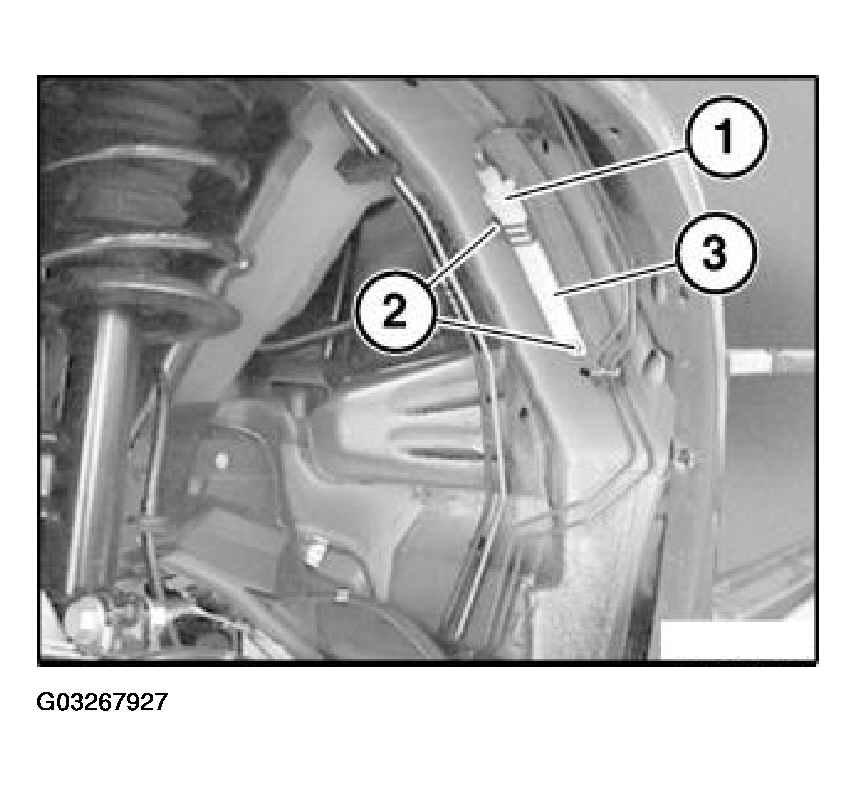

Fig 1: Removing Front Reception Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

Release hexagon nuts (2) and remove reception antenna (3).
