32 21 151 Replacing Left Or Right Tie Rod

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

32 3 090

Necessary preliminary tasks:

Remove front wheel, refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL
After installation:
Perform chassis alignment check. Refer to 32 00 150 STANDARD CHASSIS / WHEEL ALIGNMENT WITH DIN LOAD or 32 00 155 CHASSIS/WHEEL ALIGNMENT WITHOUT LOAD .
Carry out steering angle sensor adjustment. Refer to 61 31 996 CARRY OUT STEERING ANGLE SENSOR ADJUSTMENT

Unfasten nut.

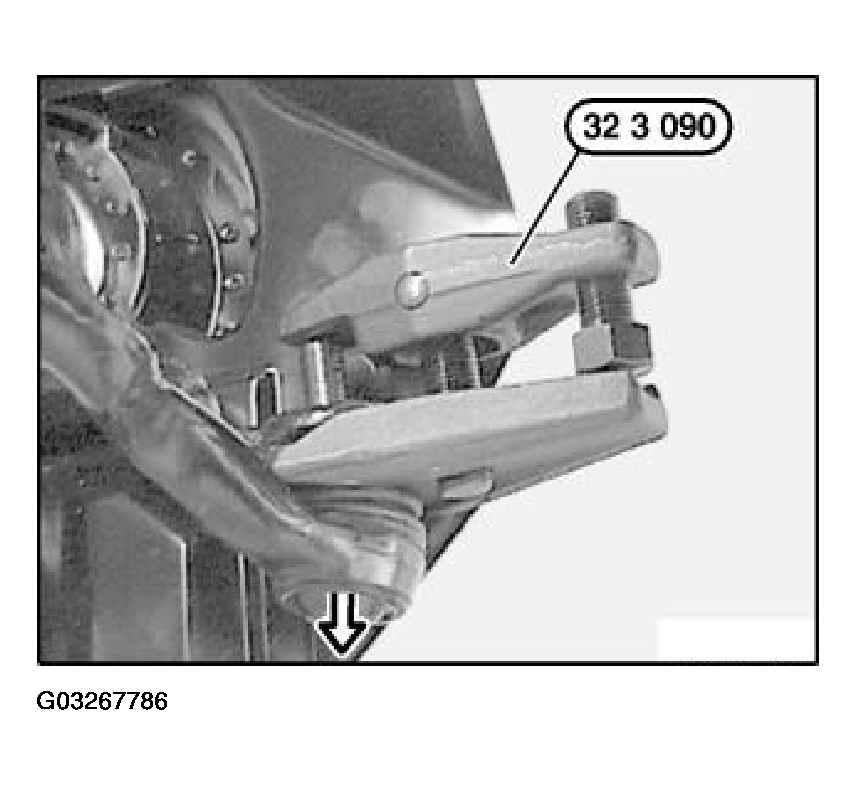

Fig 1: Forcing Tie Rod End Off Swivel Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Force tie rod end off swivel bearing with special tool 32 3 090.

Installation:

Keep journal on tie rod end and bore hole in swivel bearing clean and free from grease.

Replace self-locking nut.

Tightening torque, 32 21 3AZ. Refer to STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .

Determine measurement (A) to simplify following adjustment of front axle.

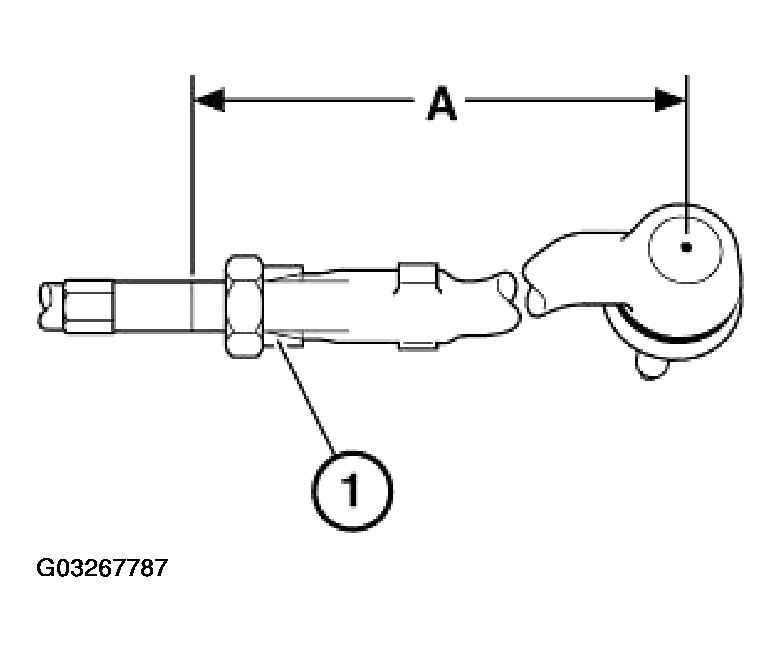

Fig 2: Identifying Measurement (A)

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamping nut.

Screw off tie rod end; if necessary, grip tie rod with open-end wrench.

Installation:

Check gaiter, replace if necessary. Refer to 32 11 100 REPLACING GAITER FOR STEERING GEAR ON LEFT OR RIGHT .

Mount clamping ring (1).

Screw in tie-rod end to distance (A).

Tightening torque, 32 21 5AZ. Refer to STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .
