32 31 585 Removing and installing / replacing a gear motor in steering column adjuster

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove lower section of steering column trim. Refer to 32 31 020 REMOVING AND INSTALLING/REPLACING LOWER SECTION OF STEERING COLUMN COVER .

Unfasten screws.

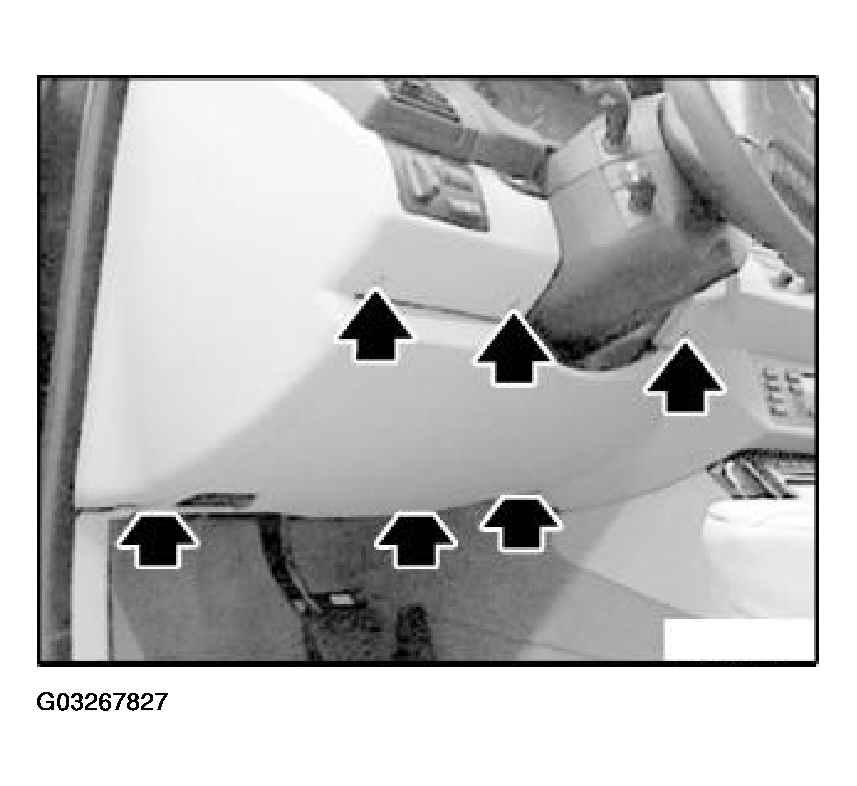

Fig 1: Removing Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plugs from gong and On-Board Diagnosis.

Remove instrument panel trim.

To illustrate more clearly, operation is shown on a removed steering column.

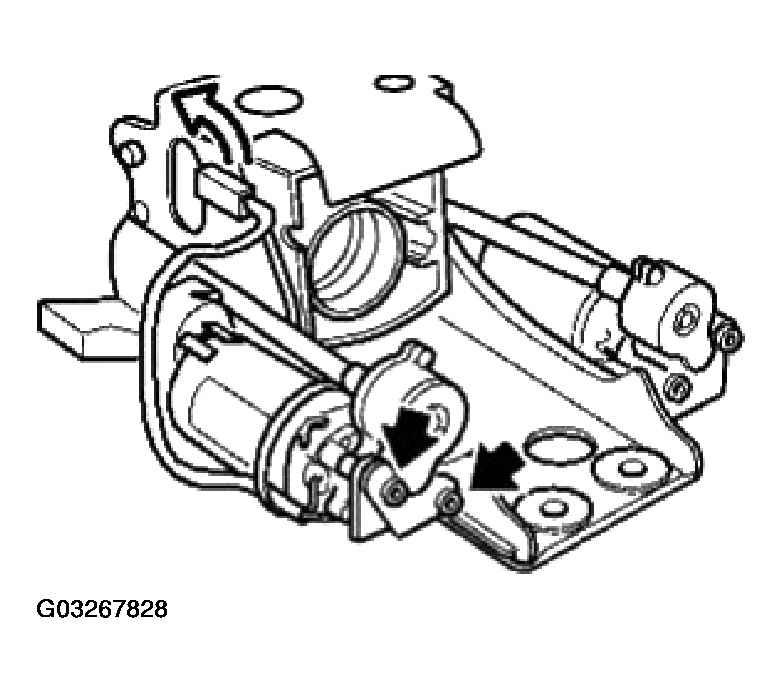

Fig 2: Removing Gear Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Twist plug out of mount and disconnect.

Remove gear motor.

Remove shaft.

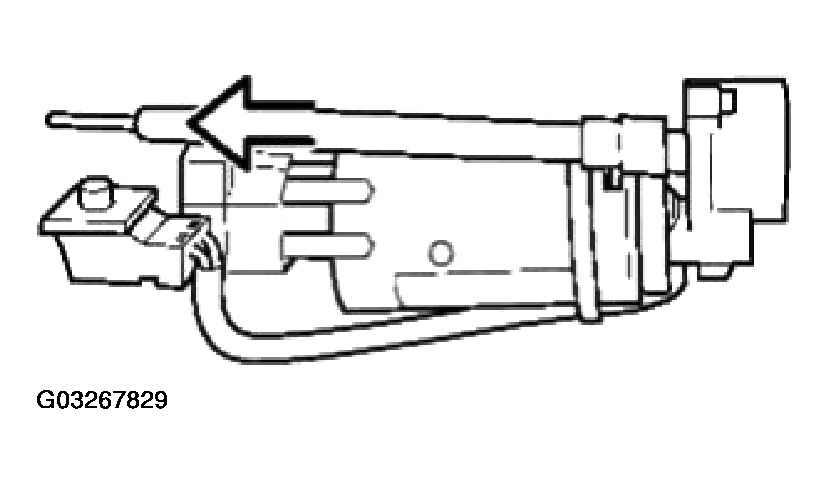

Fig 3: Removing Shaft

Courtesy of BMW OF NORTH AMERICA, INC.
