32 32 050 Removing And Installing Or Replacing Steering-Lock Cylinder

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

32 3 110

Remove ring antenna.

With ignition key (use workshop key), move lock cylinder to "R" position = radio, windshield wiper, blower.

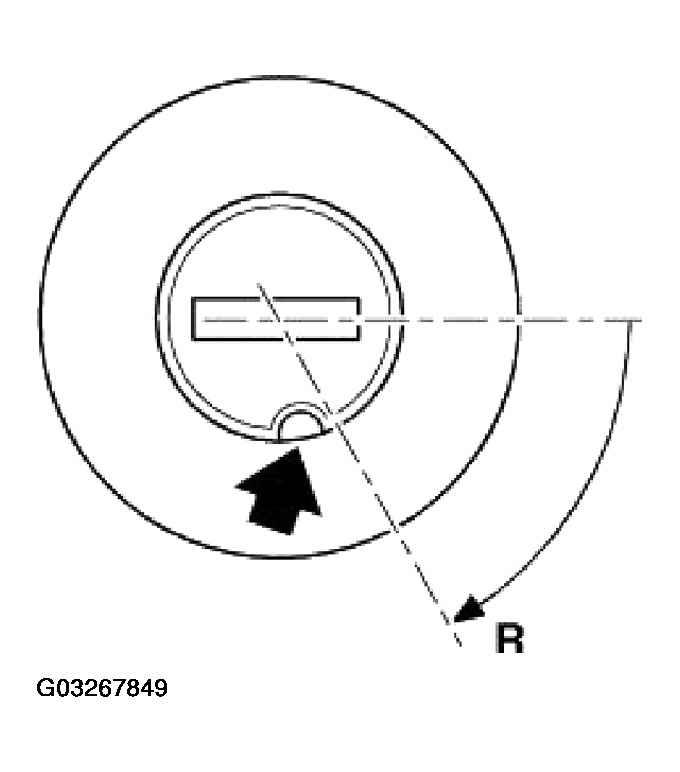

Fig 1: Moving Lock Cylinder To R Position

Courtesy of BMW OF NORTH AMERICA, INC.

Press special tool 32 3 110 into bore of lock cylinder and tilt handle forwards through approx. 90°. Remove lock cylinder.

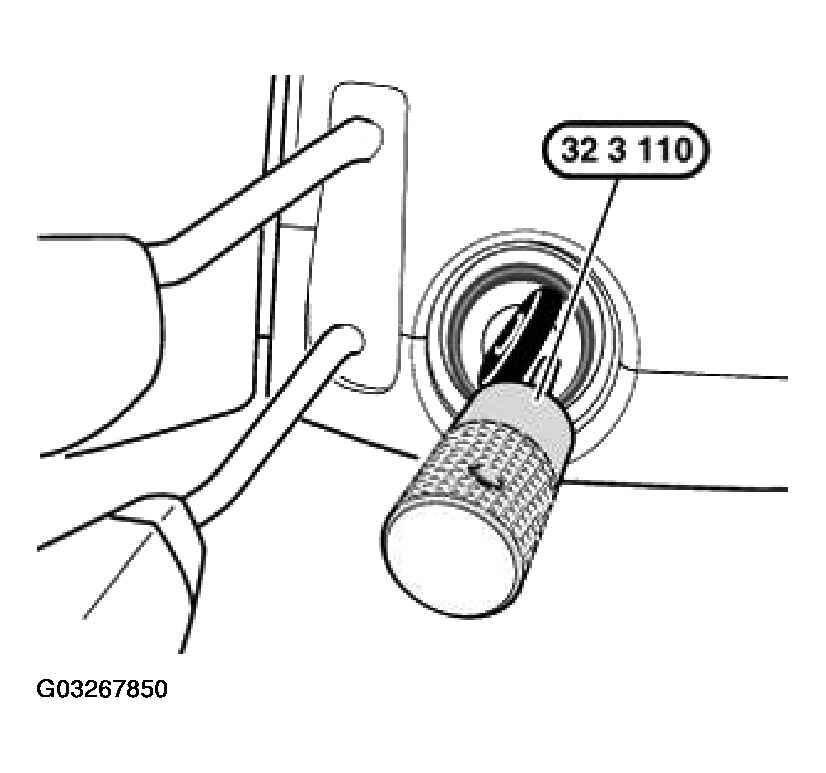

Fig 2: Removing Lock Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.
