32 00 620 Adjusting Rear Axle

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

32 3 151
32 3 152

NOTE: A camber change always means a toe change as well. The camber must therefore be adjusted first.

Adjusting camber:

Replace nut (2) and tighten to 5 Nm.

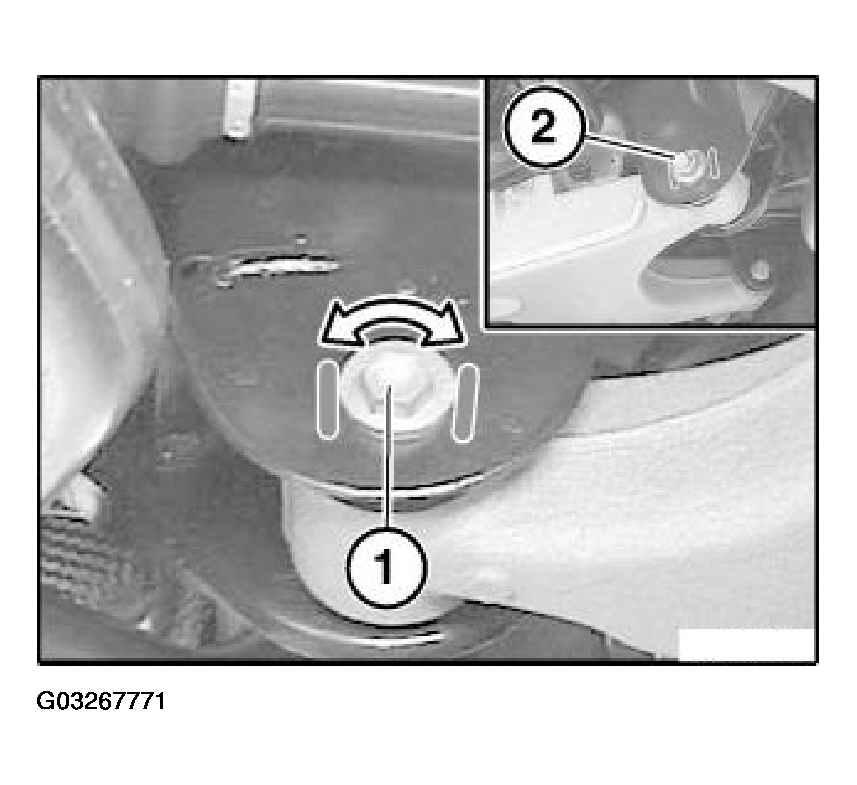

Fig 1: Adjusting Camber

Courtesy of BMW OF NORTH AMERICA, INC.

Turn eccentric bolt (1) to adjust camber to setpoint value.

Tighten nut (2).

Tightening torque, 33 32 20 AZ. Refer to REAR AXLE - TIGHTENING TORQUES .

Adjusting toe:

Replace nut (2) and tighten to 5 Nm.

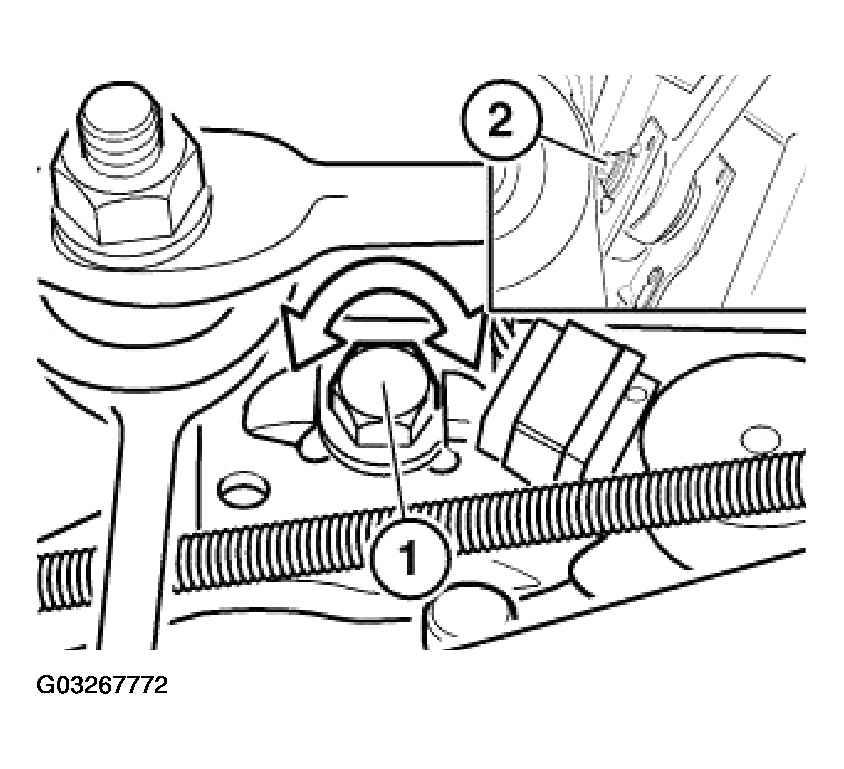

Fig 2: Adjusting Toe

Courtesy of BMW OF NORTH AMERICA, INC.

Turn eccentric bolt (1) to adjust toe to specified value.

Tighten down nut (2) with special tools 32 3 151 and 32 3 152.

Tightening torque, 33 32 5AZ. Refer to REAR AXLE - TIGHTENING TORQUES .
