26 20 000 Removing And Installing Front Propeller Shaft

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not move car by means of engine power once drive shaft has been removed.

Necessary Preliminary Tasks:

Remove reinforcement plate.

Important notes on installation are described in this work step.

Unfasten screws.

Installation:

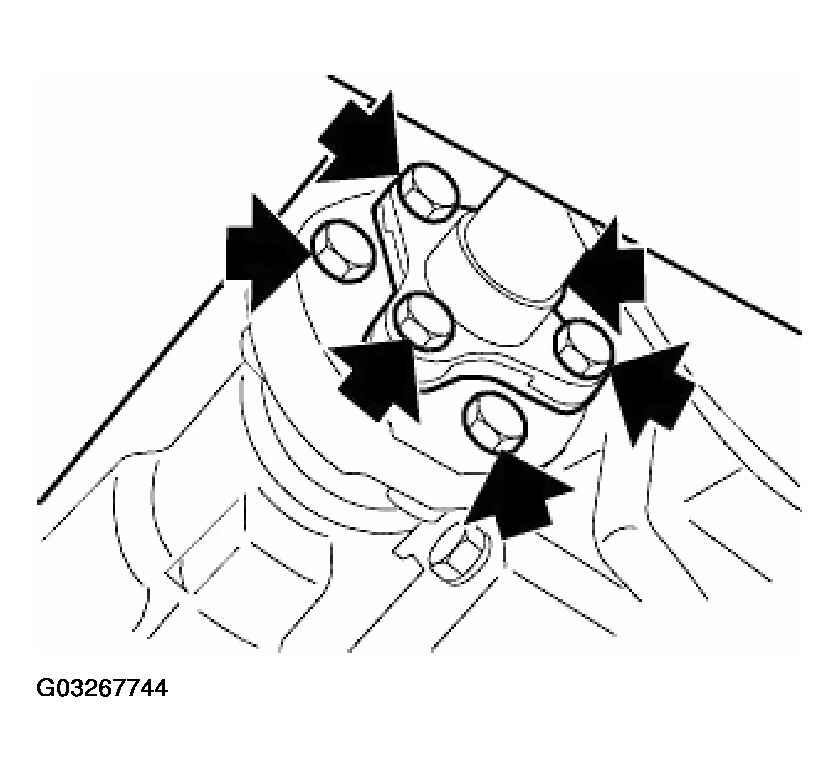

Replace self-locking nuts. See PROPELLER SHAFT - TIGHTENING TORQUES .

Fig 1: Installing Self-Locking Nuts

G03267744

Courtesy of BMW OF NORTH AMERICA, INC.

Push propeller shaft back.

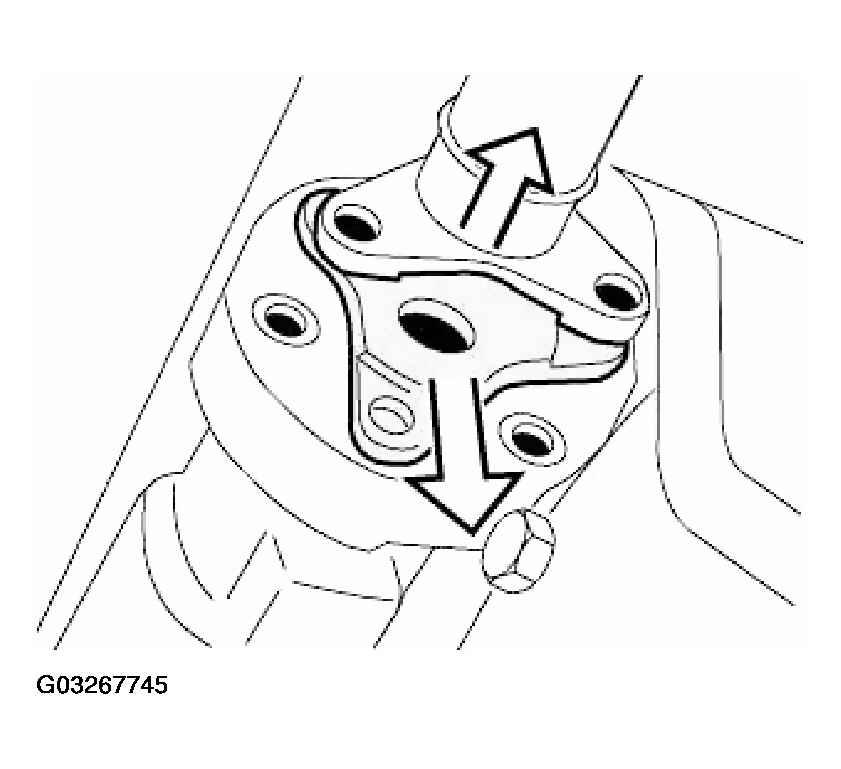

Remove flexible disk with centering flange.

Fig 2: Removing Flexible Disk With Centering Flange

G03267745

Courtesy of BMW OF NORTH AMERICA, INC.

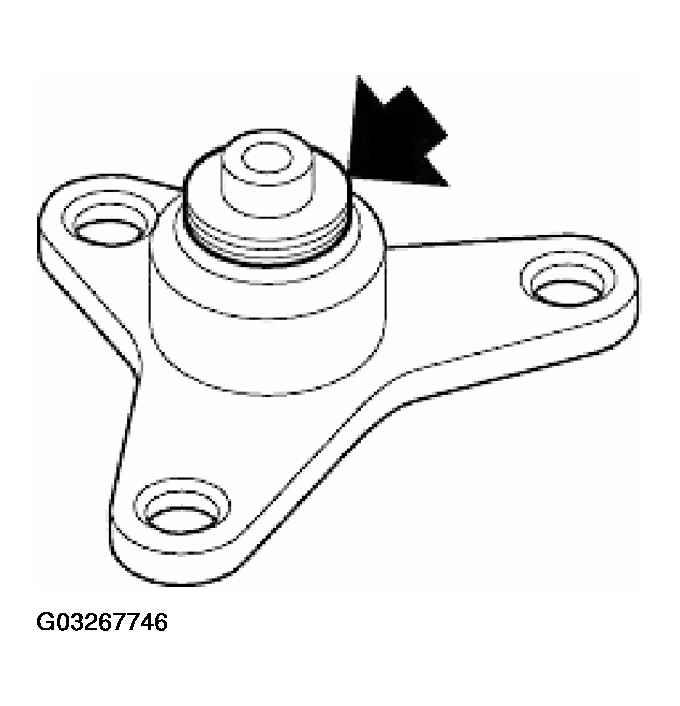

NOTE: Check sealing ring and replace if necessary.

Fig 3: Checking Sealing Ring

G03267746

Courtesy of BMW OF NORTH AMERICA, INC.

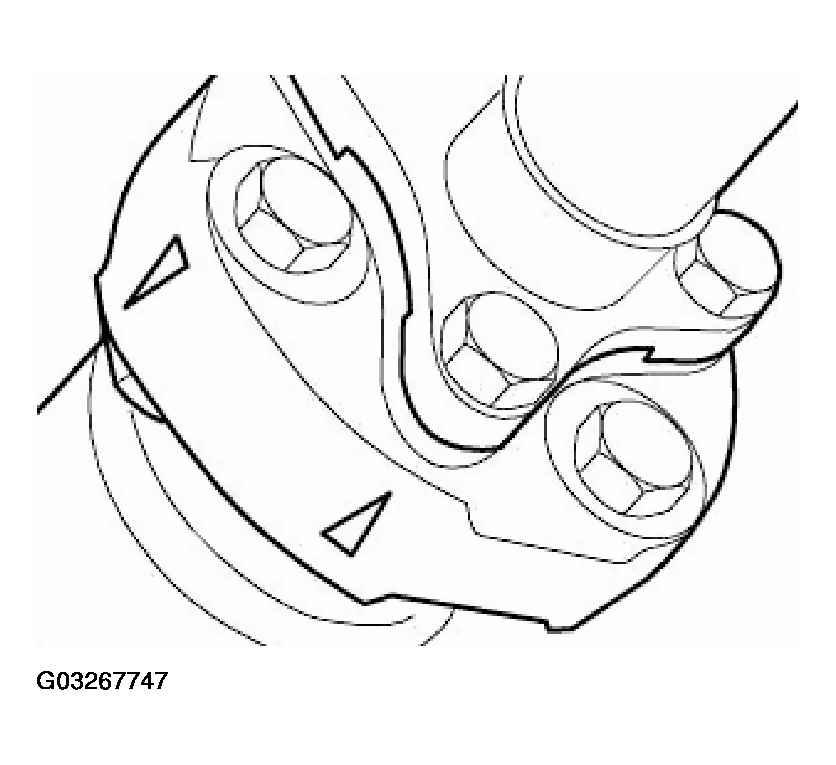

NOTE: Fit flexible disk must in such a way that arrows point to flange arms.

Fig 4: Installing Flexible Disk

G03267747

Courtesy of BMW OF NORTH AMERICA, INC.

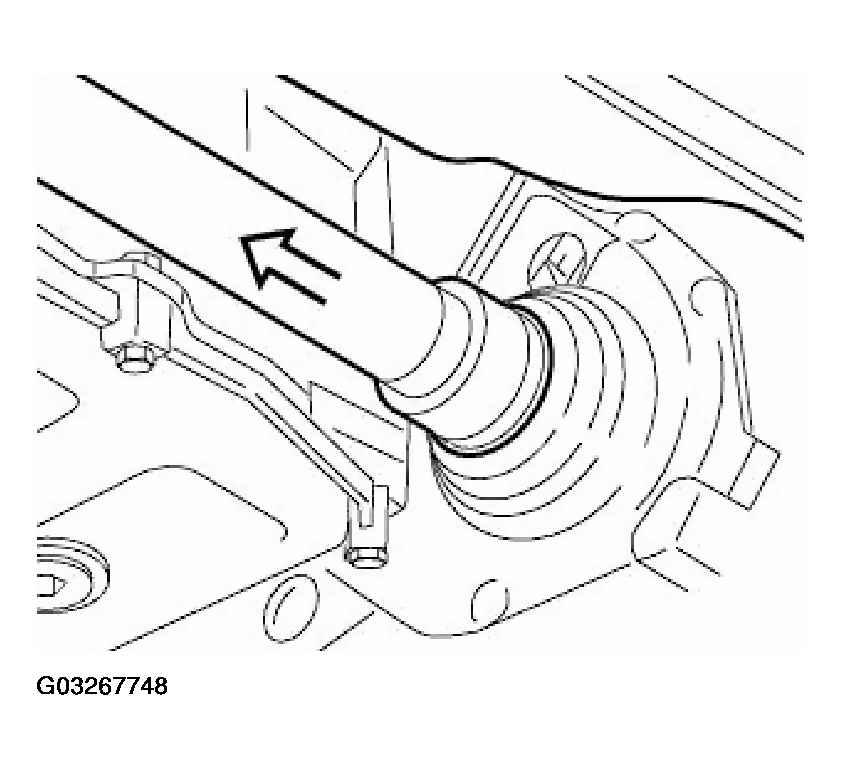

Detach propeller shaft from transfer box.

NOTE: Apply a thin coat of grease to splines. Grease: Weicon Antisieze.

Fig 5: Removing Propeller Shaft From Transfer Box

G03267748

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

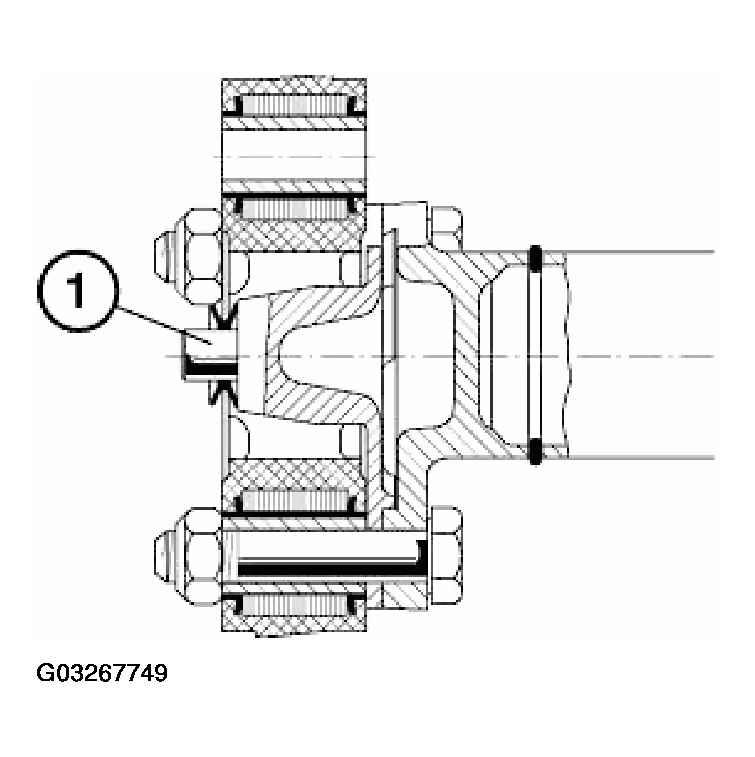

Check centering mount (1). Replace a damaged centering mount. Grease centering mount. See PROPELLER SHAFT - TIGHTENING TORQUES .

Fig 6: Checking Centering Mount

G03267749

Courtesy of BMW OF NORTH AMERICA, INC.
