00 11 572 Changing oil in transfer box (ATC 400/500)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: When changing the gear oil, it is necessary to delete the self-adapting wear values in the transfer box control unit.
Use only the approved transmission fluid.

Failure to comply with this requirement will result in serious damage to the transfer box!

Catch and dispose of escaping transmission fluid.

Observe country-specific waste -disposal regulations

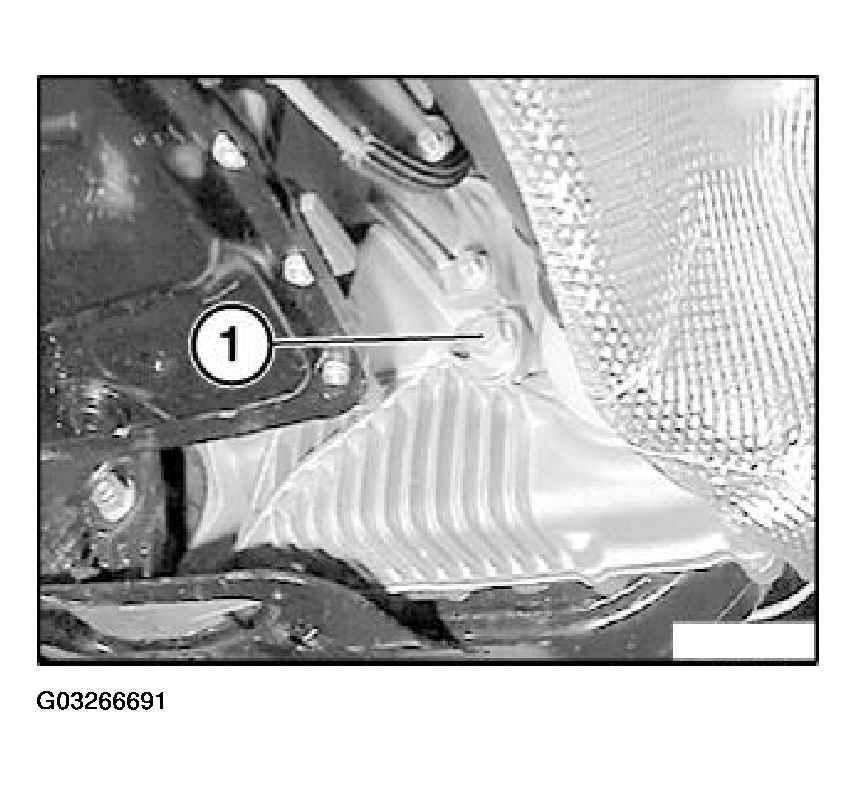

Fig 1: Identifying Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

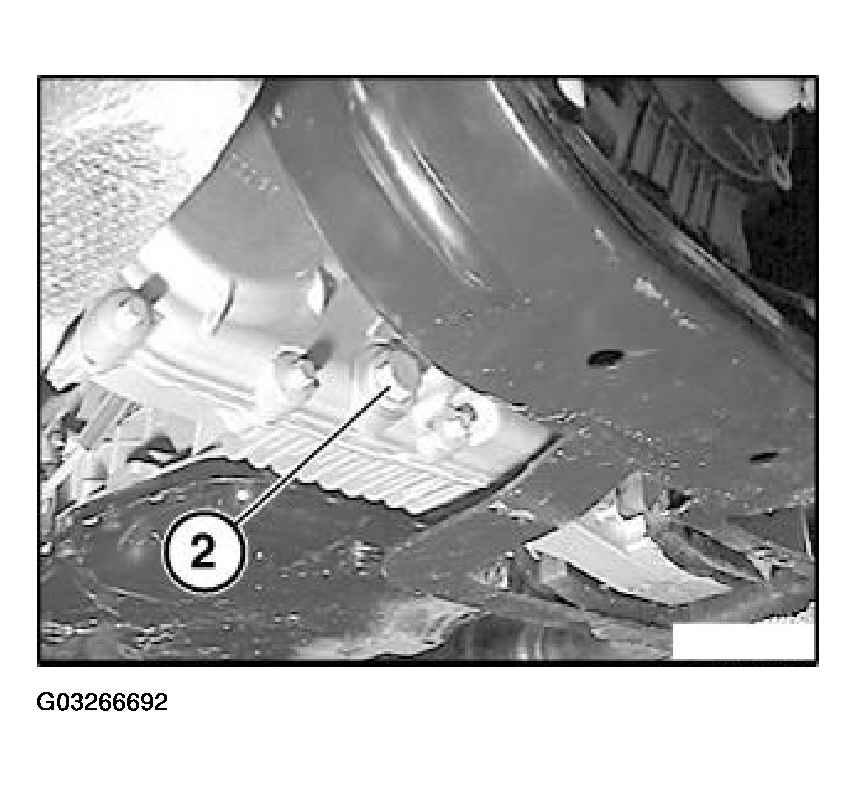

Fig 2: Removing Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

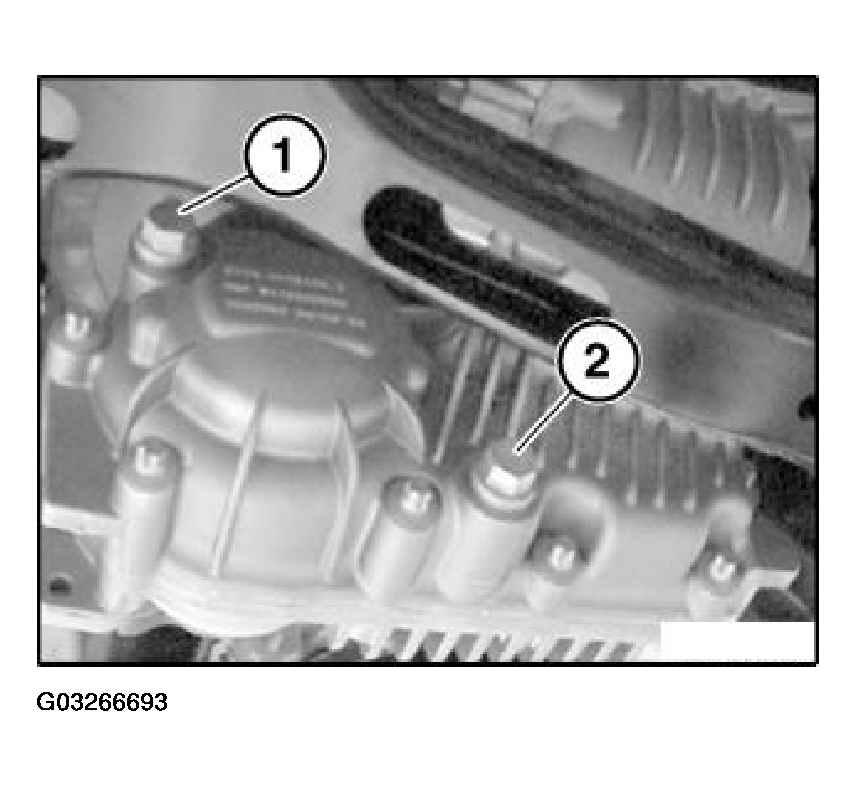

Fig 3: Releasing Oil Filler Plug And Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing rings.

Clean oil drain plug (2) and screw in.

Pour in gear oil up to lower edge of filler plug (1).

Tighten in filler screw (1).

Tightening torque, see AUTOMATIC TRANSMISSION - TIGHTENING TORQUES .
