00 00 610 Engine oil service (N62)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Recycling:

Catch and dispose of used oil.

Observe country-specific waste -disposal regulations.

NOTE: For purposes of clarity, this work step is shown without the reinforcement plate.

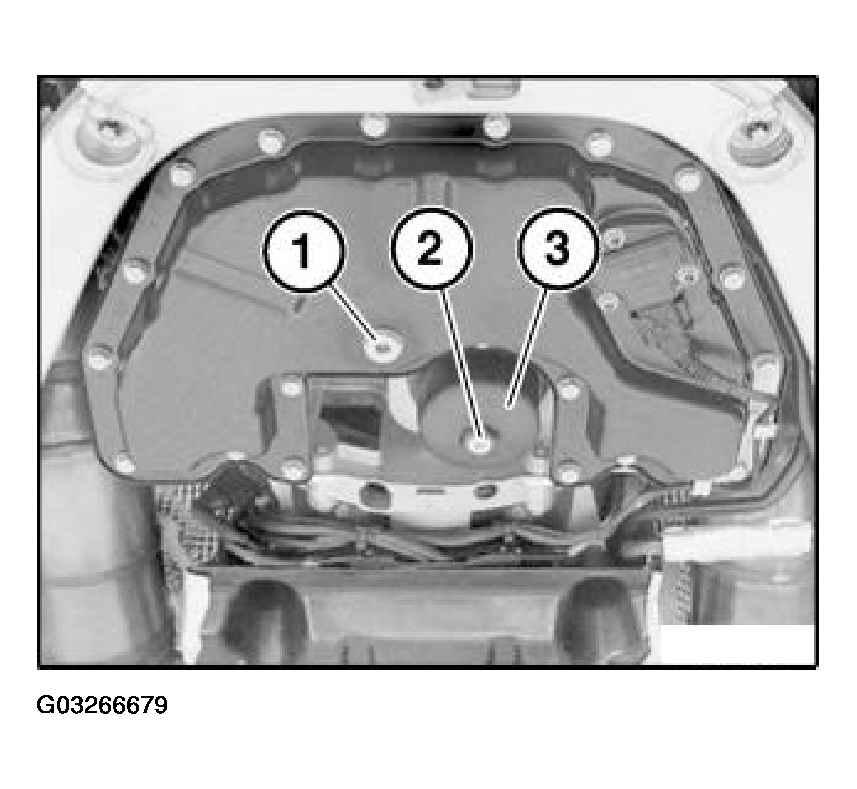

Remove drain plug (1) in oil sump.

Remove drain plug (2) on oil filter cover (3).

Release oil filter cover (3).

Fig 1: Removing Drain Plug From Oil Sump

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

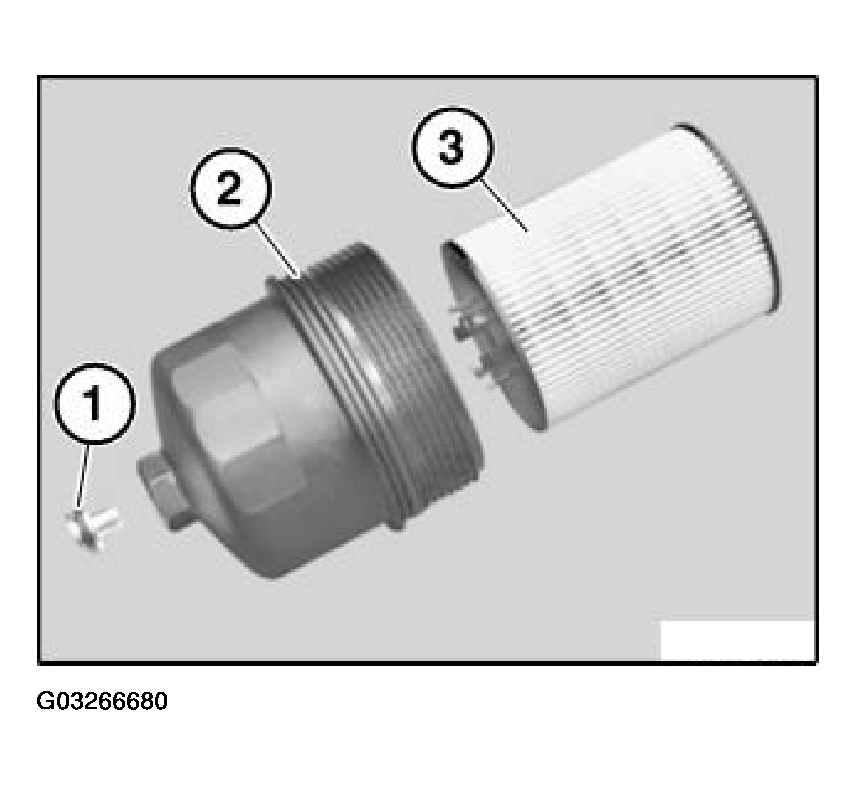

Replace and lubricate sealing rings (1 and 2).
Replace oil filter element (3) and slide into oil filter cover.
Oil filter element (3) must snap audibly into place.

Fig 2: Replacing Oil Filter Element And Slide Into Oil Filter Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring.

Insert and tighten down drain plug (1).

Tightening torque, see 11 13 OIL PAN .

Insert and tighten down oil filter cover (3).

Tightening torque, see OIL FILTER AND LINES .

Insert drain plug (2) on oil filter cover (3) and tighten down.

Tightening torque 10 Nm.

Fig 3: Tightening Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Pour in engine oil.

Start engine and run at idle until oil indicator lamp goes out. Switch off engine, wait approx. 5 minutes and then check engine oil level.

Top up engine oil if necessary.
