52 26 390 Removing and installing or replacing rear left or rear right head restraint (4+1)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Head restraints are easier to remove when pressure is applied to the side.

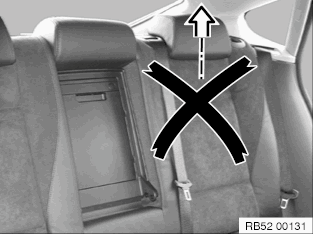

Incorrect procedure! Both retaining clips are moved out of their position when center head restraint is removed.

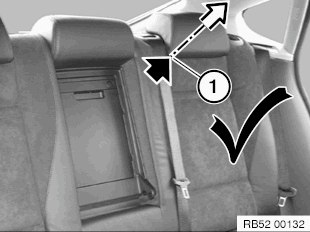

Correct procedure! Pull out head restraint by applying lateral pressure at point (1). With this version a maximum of one retaining clip is moved out of its position.

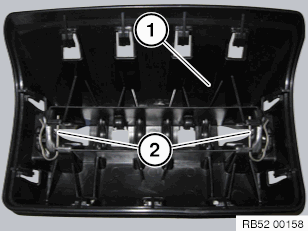

Overview: Head restraint inlay (1) and clamps (2) must be replaced.

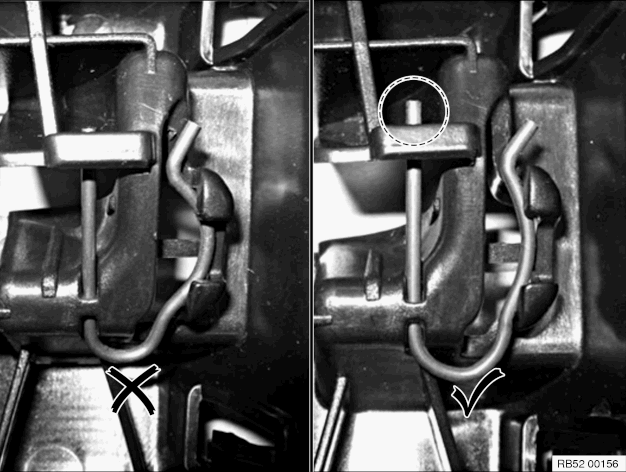

New retaining clips are longer and must be protrude in new inlay as shown. See mark.

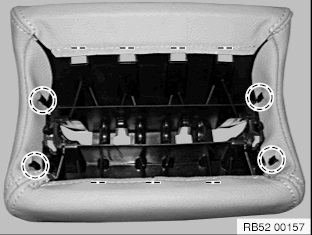

Detach cover in marked area and remove from head restraint inlay.

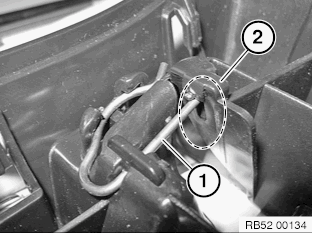

Installation note: Insert new retaining clip (1) into bushing (2). Check new retaining clip (1) for secure seating.
Installation note: Attach cover in marked area.
Installation note: Check head restraint for secure seating!
