ATC 400/ATC 500 Transfer Case
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

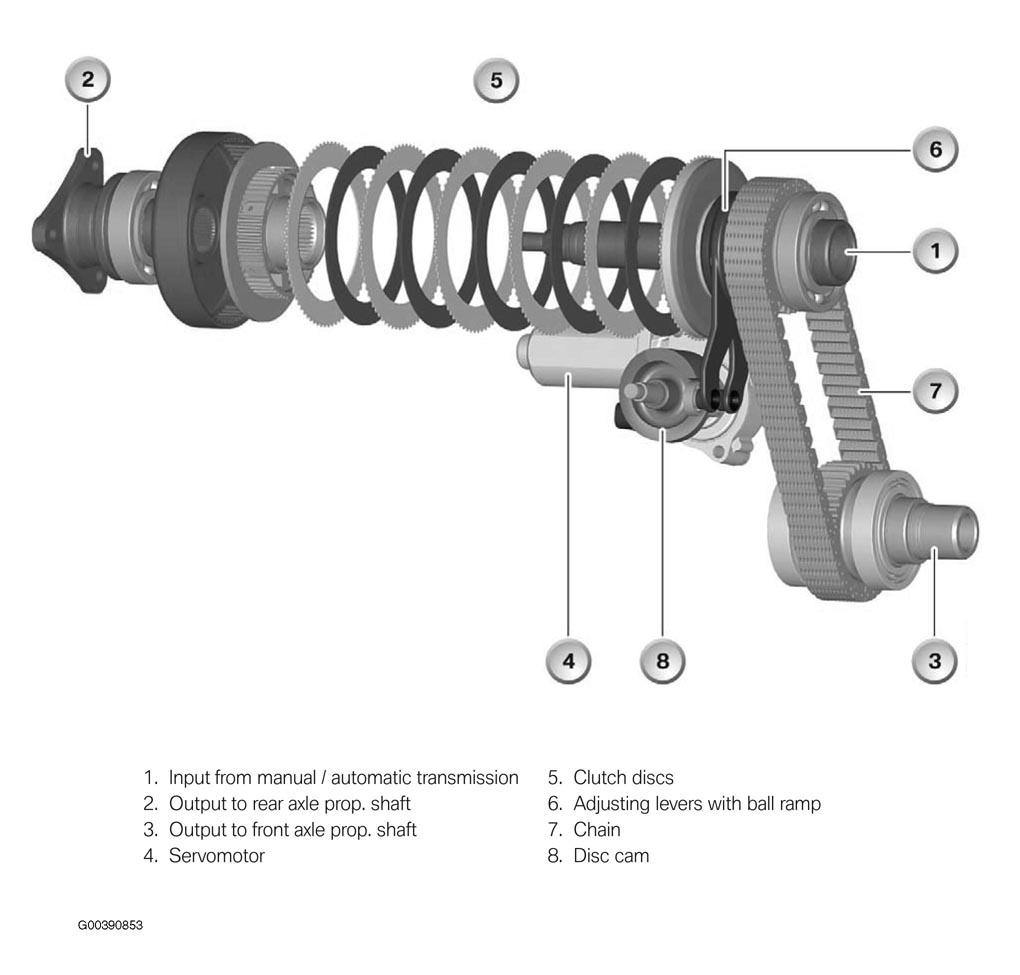

The ATC 400 is installed in the E83 and the ATC 500 in the E53 MU. They differ in that the ATC 500 is splined to the front propeller shaft and the ATC 400 uses a four bolt flange. In addition, there is one more disc in the multi-disc clutch of the ATC 500 and the distance between the input shaft and the output shaft to the front axle is 19 mm greater than in the ATC 400. See Fig 1 .
