Transfer Case (M/T): Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, 2003 BMW X5, and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Numbers in text refer to numbers in figures.

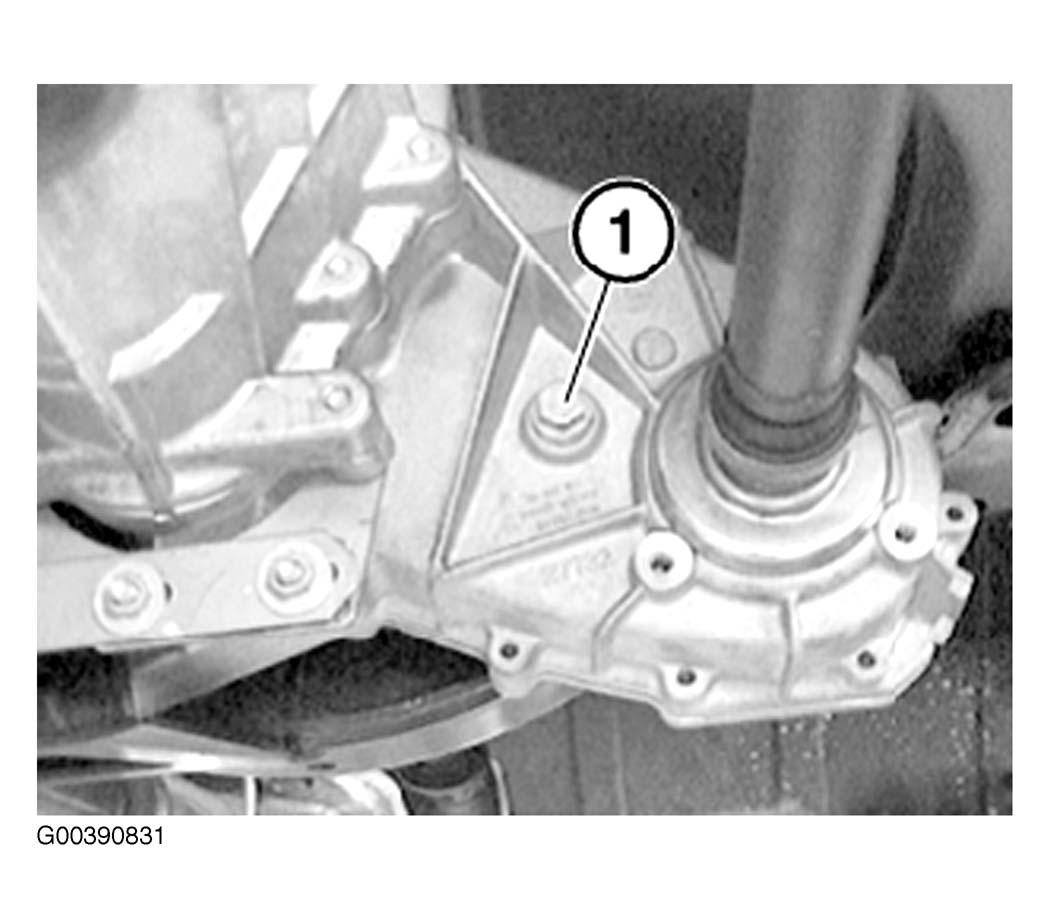

NOTE: After completing work, check gear oil level and top up if necessary. Tighten filler plug (1) as necessary. See TORQUE SPECIFICATIONS . Fill gear oil level up to filler edge of filler plug (1). See Figure. Use only the approved gear oil. See TRANSFER CASE - SERVICING article.
