Removal & Installation

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Remove tension struts. See TENSION STRUTS .
Mark tension struts with a punch mark in area (A). See Fig 1. If tension struts already have a mark, replace both tension struts.
Remove rubber mount with a press and special tool (31 3 031/032). See Fig 2.
Ensure rubber mount and tension strut bore are free of grease. Press in new rubber mount with special tool (31 3 031/032). Marking on rubber mount points towards marking on tension strut. Maximum torsional tolerance (A) is within 5 degrees. See Fig 3.
Press in rubber mount until protrusion (A) is equal on both sides. See Fig 4.
Install tension strut. See TENSION STRUTS .

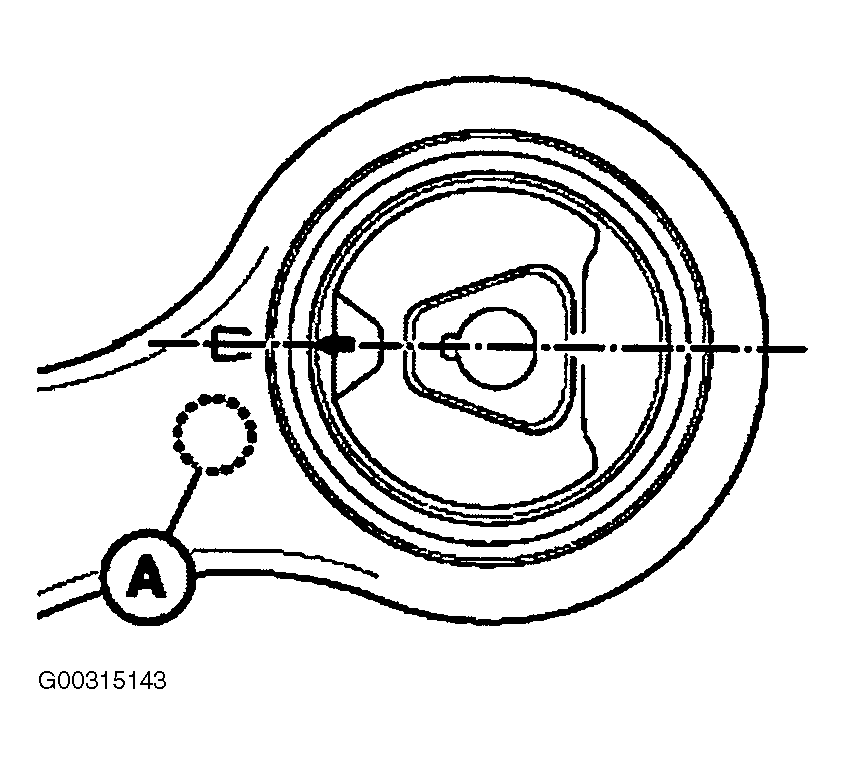

Fig 1: Marking Tension Strut

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Pressing Out Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

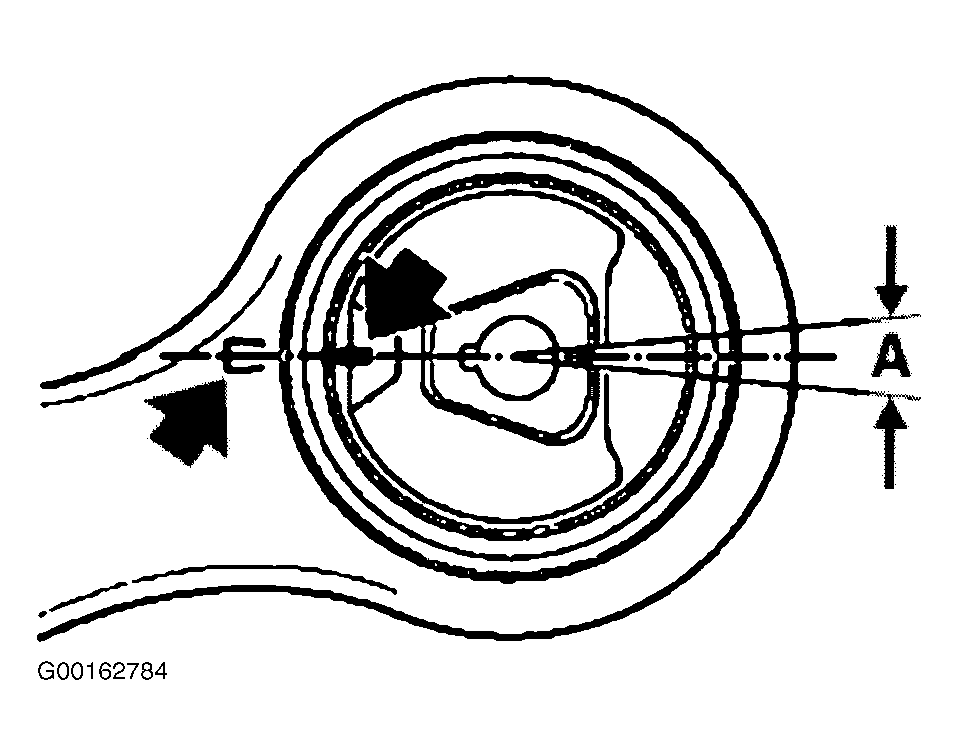

Fig 3: Installing Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Identifying Rubber Mount Protrusion

Courtesy of BMW OF NORTH AMERICA, INC.
