Removal & Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, 2003 BMW X5, and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery negative lead from battery.
Remove reinforcement plate.
Remove protective cap (1) of battery positive lead from starter motor. See Fig 1 . Remove nut (2). Disconnect battery positive lead (3) from starter motor. Unclip battery positive lead from holders.
Remove nuts (1). See Fig 2 . Detach leads (2) from starter motor.
Remove screws. See Fig 3 .
Pull starter motor out of transmission mount and remove. See Fig 4 .
To install, reverse removal procedure. Check starter pinion and ring gear for damage. Replace starter motor, if necessary. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .

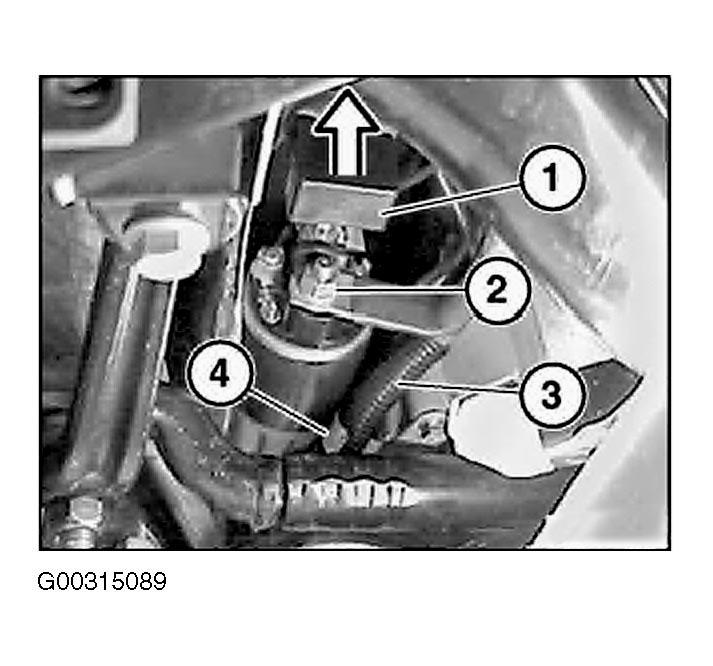

Fig 1: Locating Leads Of Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Disconnecting Battery Positive Leads From Starter Motor

Courtesy of BMW OF NORTH AMERICA, INC.

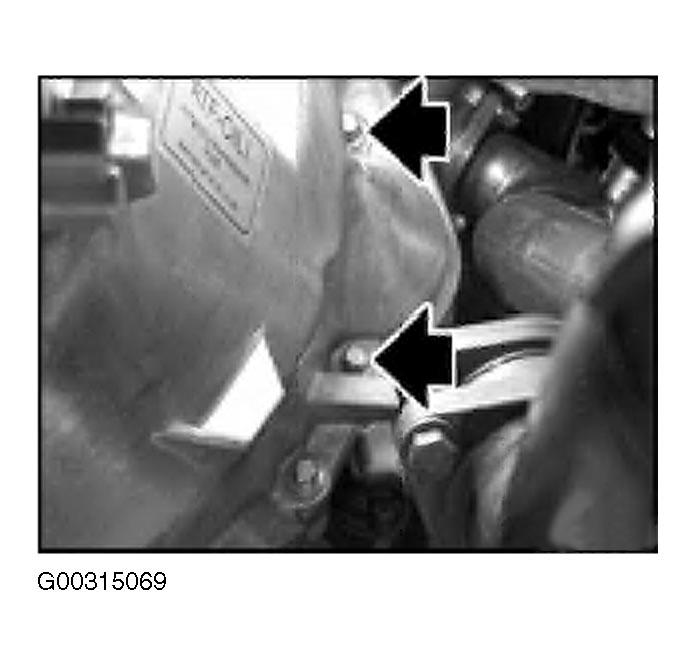

Fig 3: Locating Starter Motor Screws

Courtesy of BMW OF NORTH AMERICA, INC.

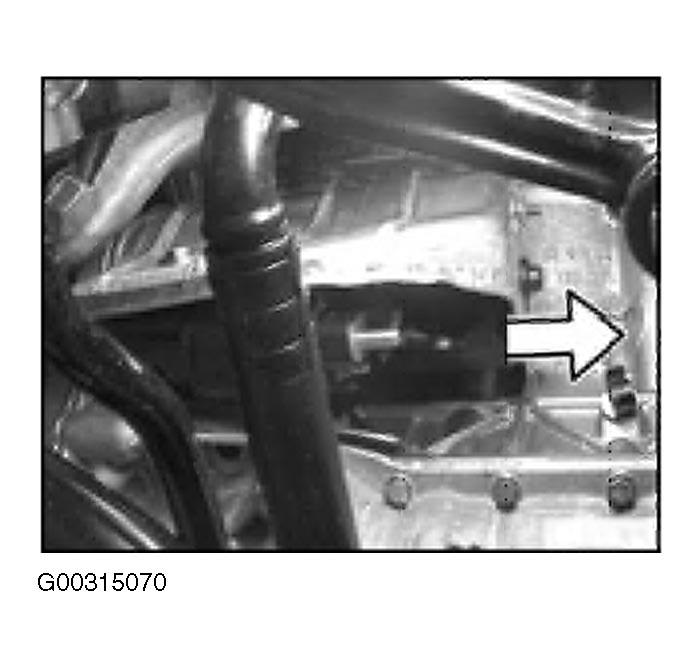

Fig 4: Removing Starter Motor From Transmission Mount
