Removal & Installation
WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

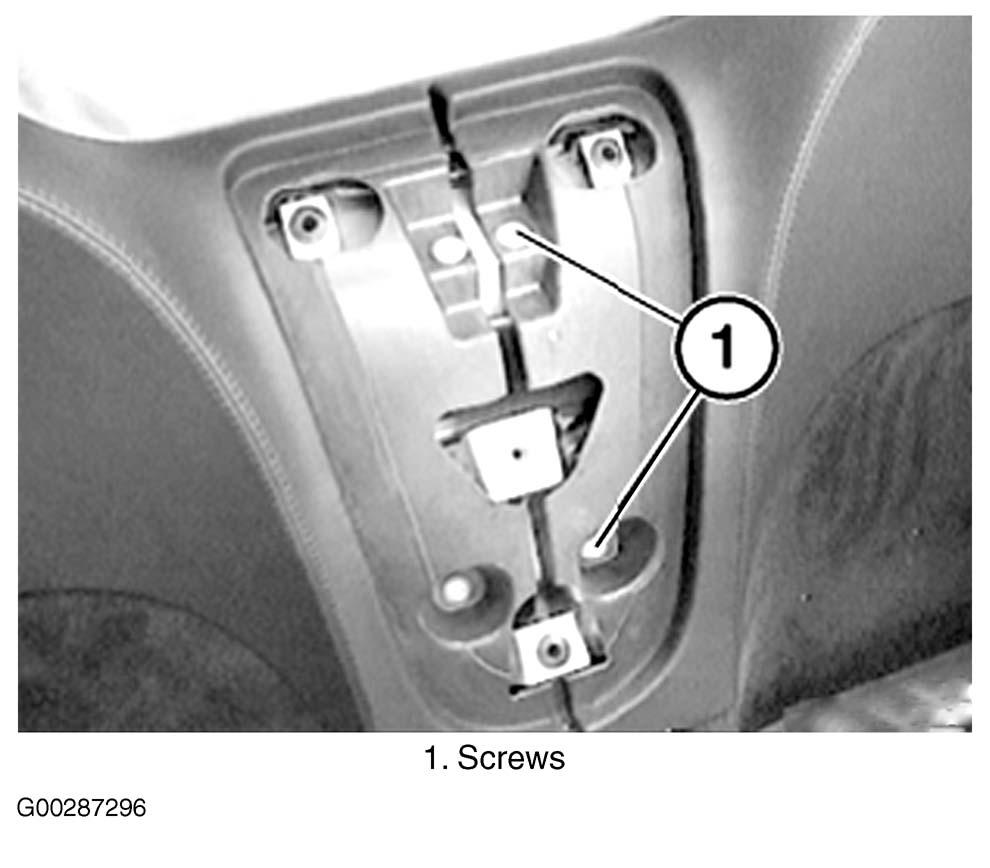

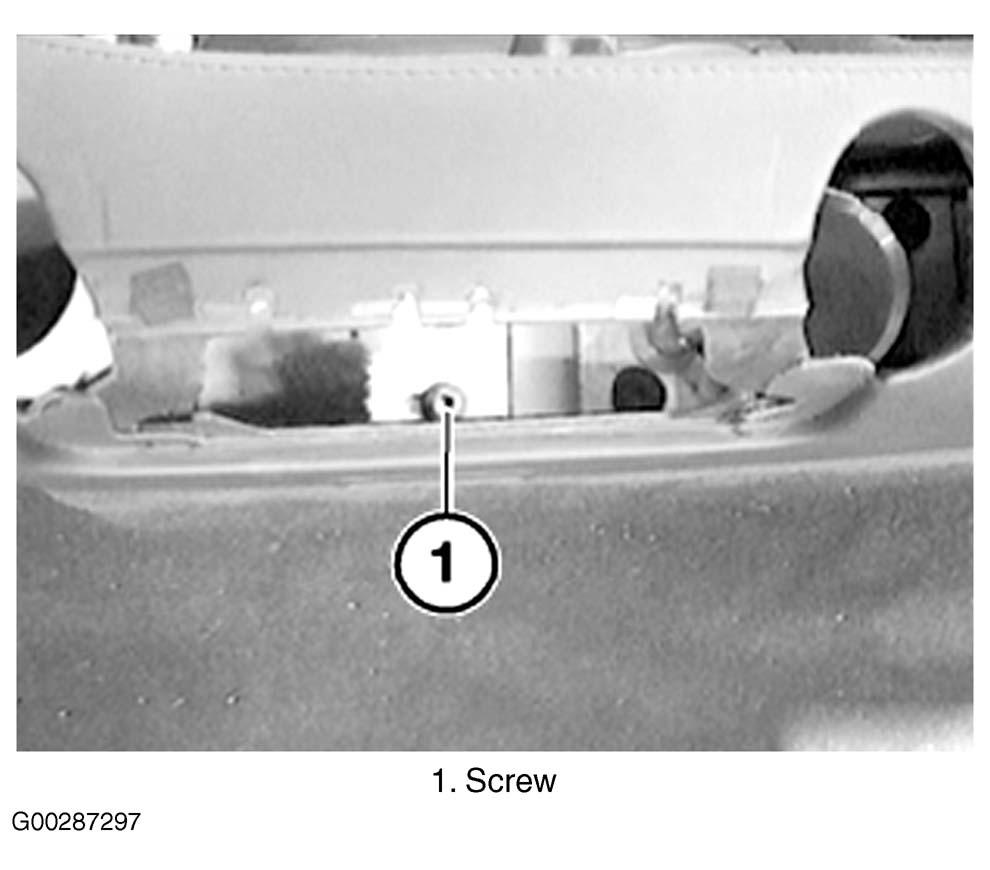

Remove complete front seat. Remove rear storage compartment. Remove trim on panel for rollover protection. Remove side trim panel at rear left or right. Remove rollover bar on left or right. Release screws behind cover. Release screw. See Fig 1 and Fig 2 . Detach cover and tilt forward. To install, reverse removal procedure.
