Removal & Installation

WARNING: This page is about a different car, the 2003 BMW 760Li, 2003 BMW 745i, and 2003 BMW 745Li. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS  . Disable air bag system. See DISABLING SYSTEM  under DISABLING & ACTIVATING AIR BAG SYSTEM.
  2. Unclip and remove front seat forward rail trim panel. See Fig 1 . Disconnect front seat harness connectors. Unhook catches on side of front seat sensor. Lift front seat sensor up and slide out from under front seat.
  3. To install, reverse removal procedure. Activate air bag system. See ACTIVATING SYSTEM  under DISABLING & ACTIVATING AIR BAG SYSTEM.

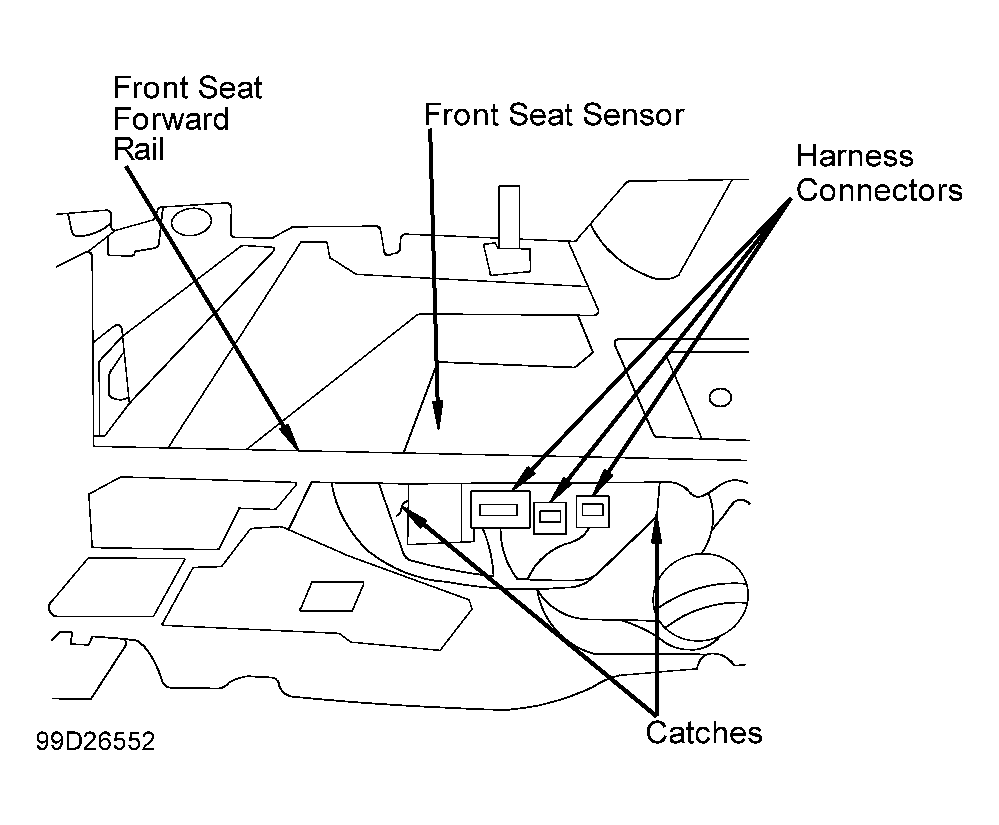

Fig 1: Identifying Front Seat Sensor
G99D26552Courtesy of BMW OF NORTH AMERICA, INC.
