12 14 524 Replacing pulse generator on exhaust camshaft (M52TU, M54, M56)

Necessary preliminary tasks:

Location:

On cylinder head at front on exhaust side.

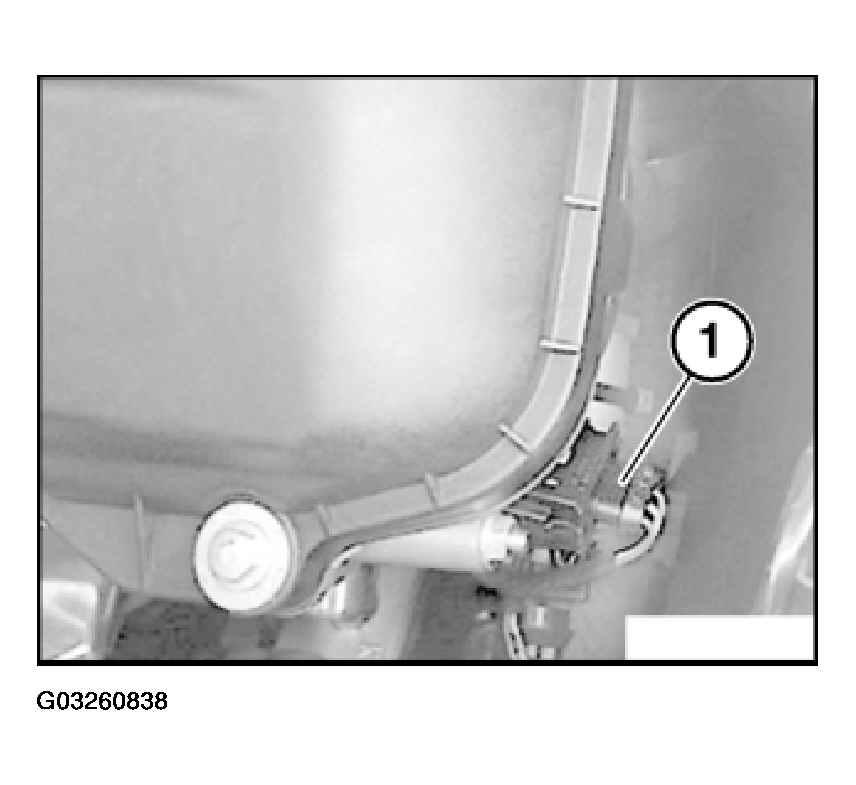

Unlock plug (1) and detach from pulse generator.

Fig 1: Unlocking Plug And Detaching From Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

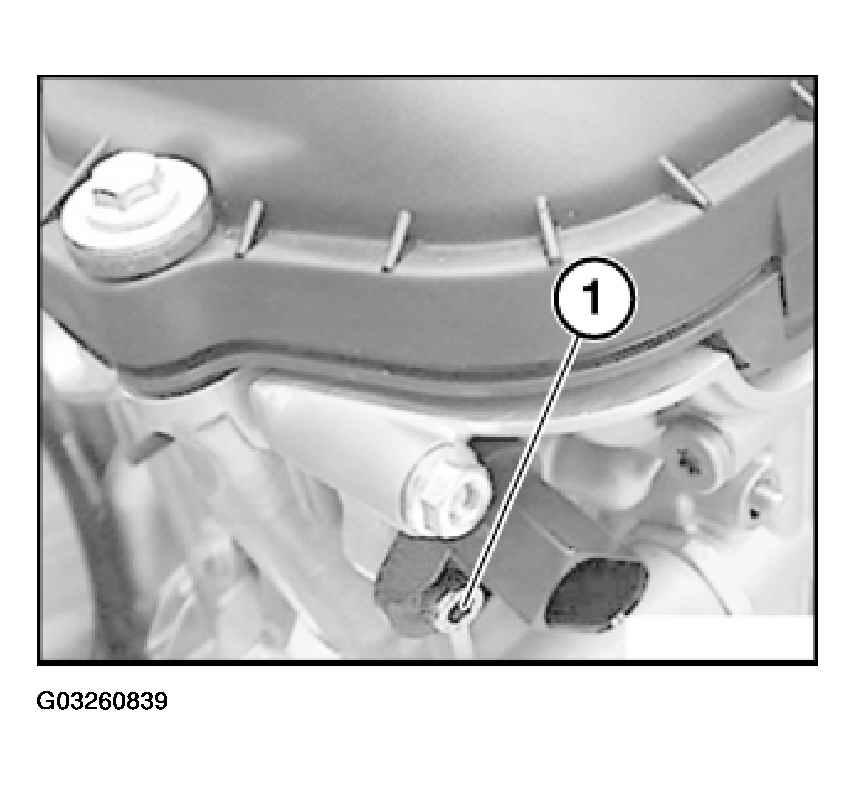

Release screw (1) on cylinder head.

Remove pulse generator.

Installation:

Check sealing ring for possible damage, replace if necessary.

Fig 2: Removing Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit.

Rectify faults.

Now clear the fault memory.
