51 34 000 Removing and installing/replacing window crank, rear left or right: Installation:

Guide (1) and catch (2) if finisher (3) must not be damaged.

If necessary, replace faulty finisher (3).

Fig 1: Identifying Guide, Catch & Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (1).

Remove window crank (2) and rosette (3).

1. Fit window crank (2) in this position with door window glass closed.

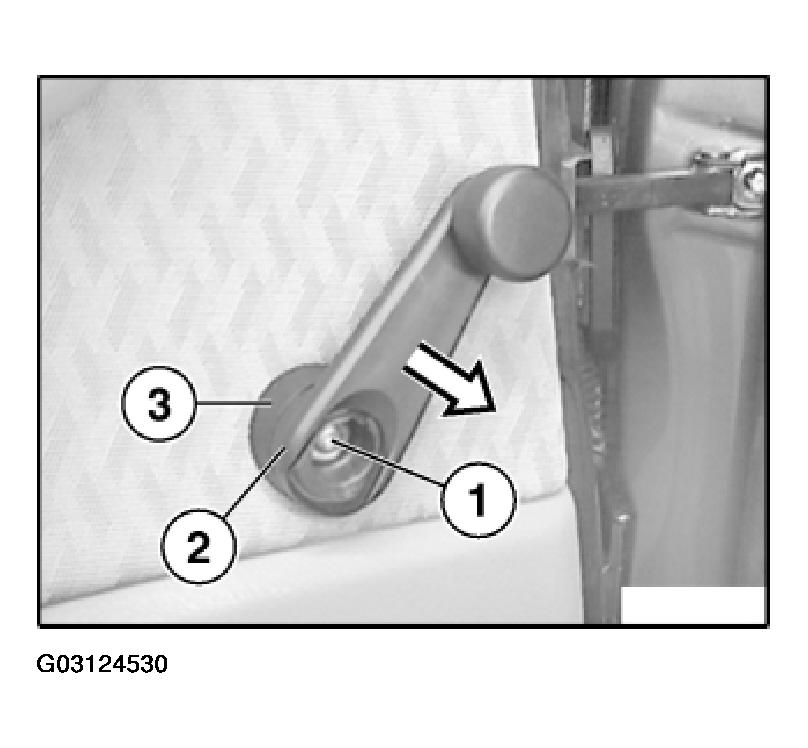

   Fig 1: Removing Window Crank & Rosette

   Courtesy of BMW OF NORTH AMERICA, INC.

1. Insert rosette (1) with turning lock (2) in opening (3) of door trim panel.

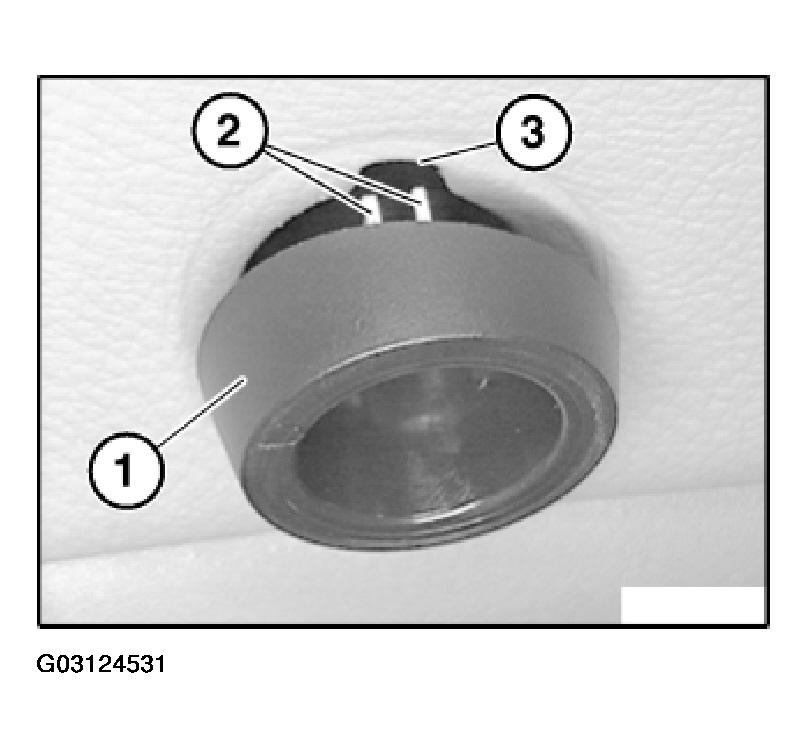

   Fig 1: Inserting Rosette With Turning Lock In Opening Of Door Trim Panel

   Courtesy of BMW OF NORTH AMERICA, INC.
