Necessary preliminary tasks:

NOTE: The impact absorber shown in the illustration is for viewing purposes only and may differ from the removed impact absorber.

Check dimension (A).

Dimension (A) is measured from center of pin boss up to mounting face for body (without gasket).

Replace impact absorber (1) if measurement drops below dimension (A).

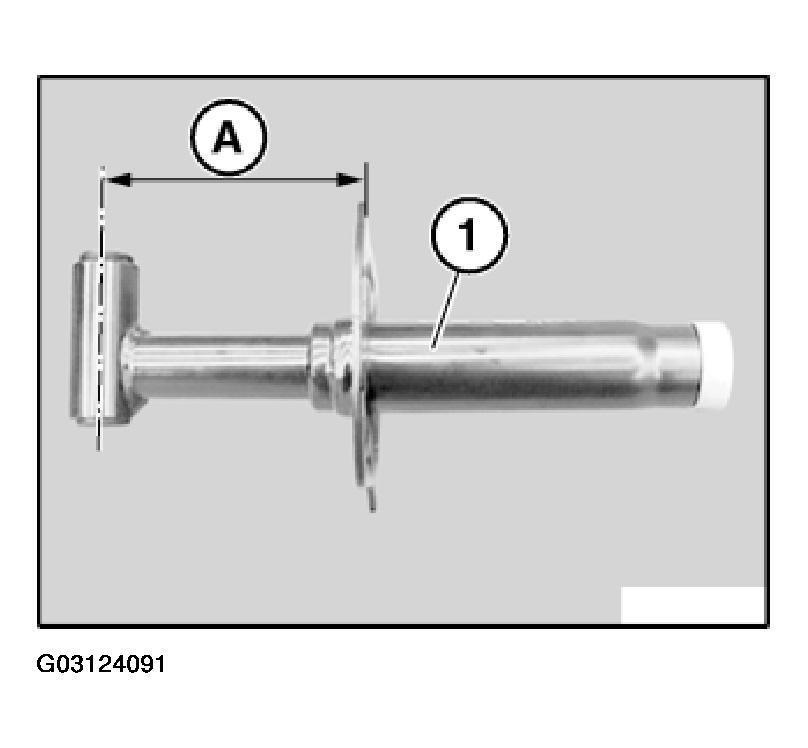

Fig 1: Replacing Impact Absorber
G03124091Courtesy of BMW OF NORTH AMERICA, INC.
