65 52 013 Removing and installing complete on-board monitor (widescreen)

Special Tools Required:

65 1 110

Remove center fresh air grill (with decorative strip), refer to 64 22 161 REMOVING AND INSTALLING/REPLACING CENTER FRESH AIR GRILL (HEATING) or 64 22 162 REMOVING AND INSTALLING/REPLACING CENTER FRESH AIR GRILL (AIR CONDITIONING) .

NOTE: Use of special tool 65 1 110 shown on left side with complete on-board monitor removed (same procedure applies for use on right side):

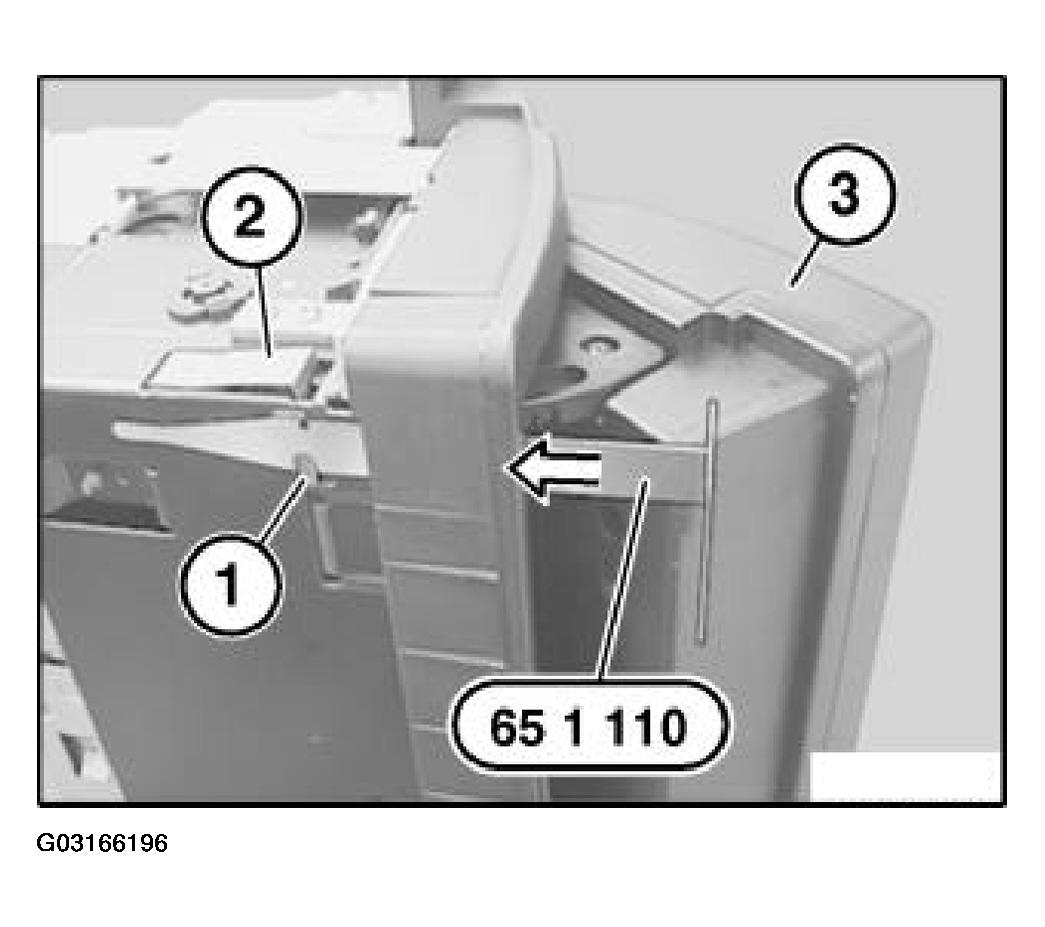

Feed in special tool 65 1 110 for extended trim for on-board monitor (3) as illustrated until pawl (1) of catch (2) snaps into place. After removing complete on-board monitor, press catch (2) and feed out special tool 65 1 110 again.

Fig 1: Feeding Special Tool For Extended Trim For On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

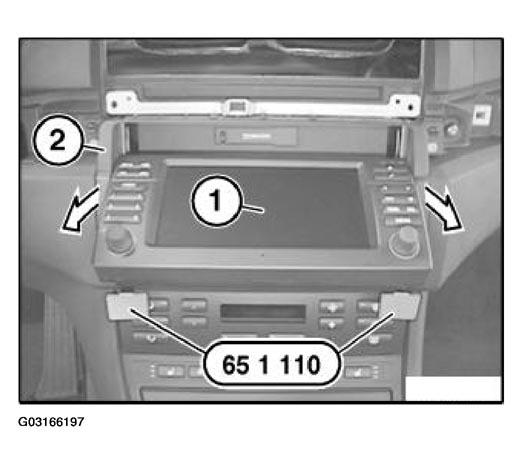

Extend trim for on-board monitor (1) as illustrated.

NOTE: Trim for on-board monitor (1) returns after approx. 15 seconds to its initial position.

Using special tool 65 1 110, unlock complete on-board monitor (2) at bottom left and right and pull out in direction of arrow.

Fig 2: Extending Trim For On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure complete on-board monitor (2) against falling out.

Unlock side plug connections and disconnect.

Remove complete on-board monitor (2).

Fig 3: Removing Complete On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

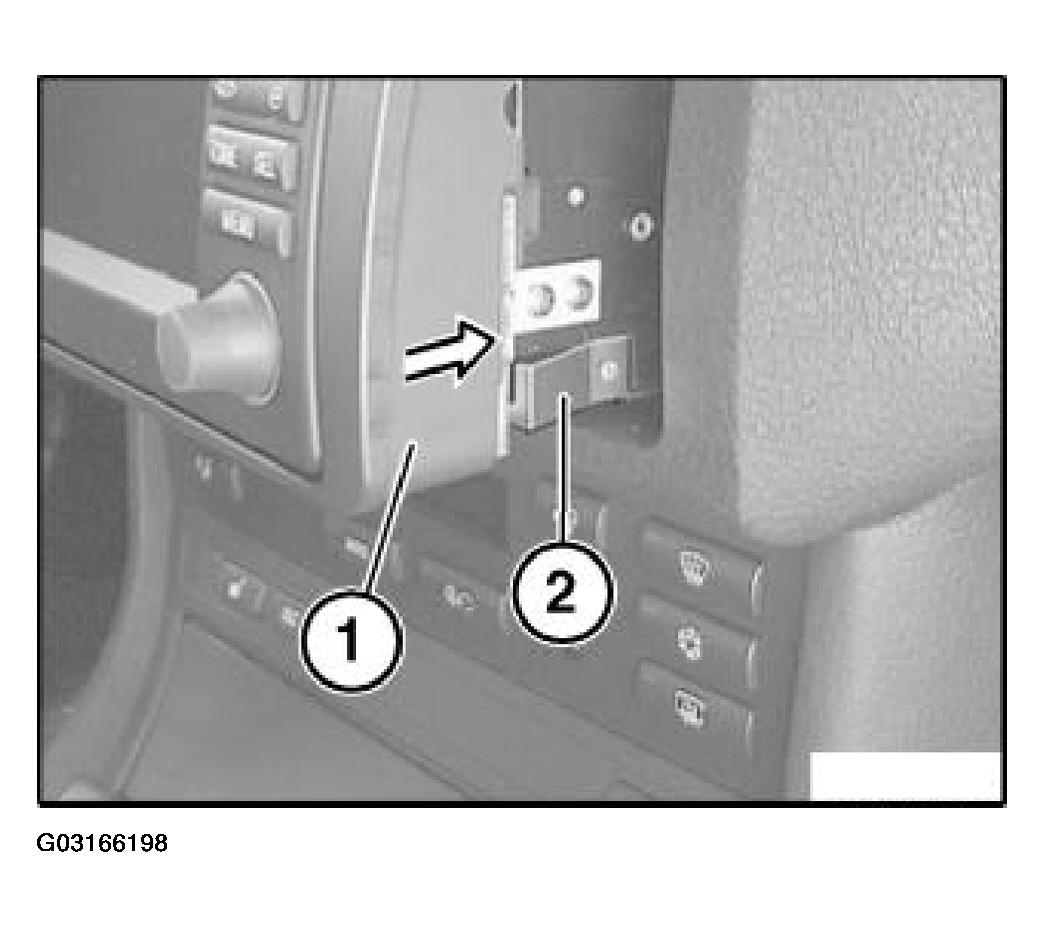

When sliding in complete on-board monitor (1), make sure catches (2) on both sides are correctly seated.
