Special tools required:

• 61 3 300

Necessary preliminary tasks:

• Remove upper section of steering column trim. See STEERING COLUMN UPPER TRIM
• E46 only: Remove lower section of steering column trim. See STEERING COLUMN LOWER TRIM

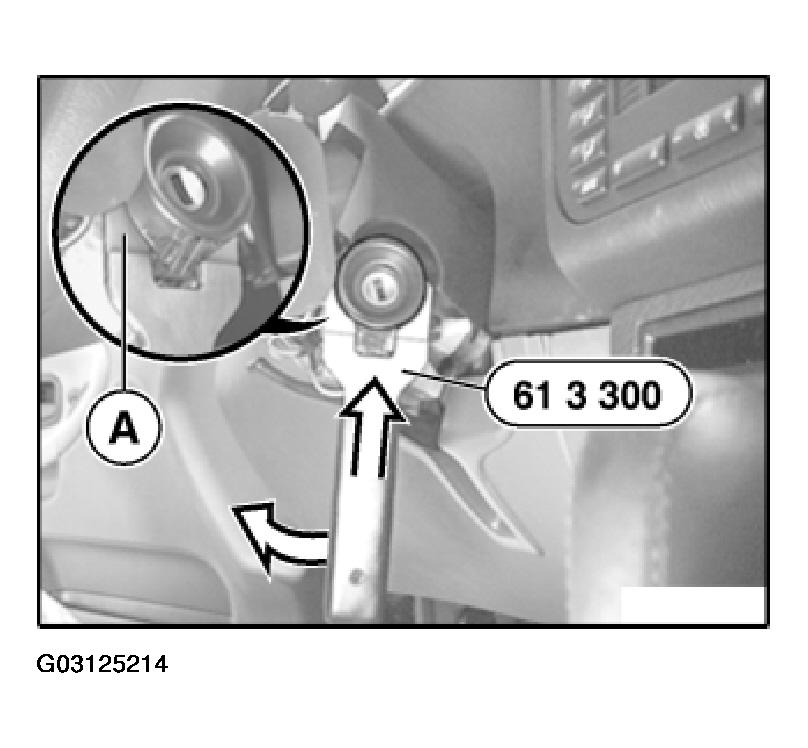

Slide in special tool 61 3 300 with flattened end (A) facing ring antenna and lever out ring antenna.

Fig 1: Removing & Installing/Replacing Ring Antenna Of Electronic Immobilizer

Courtesy of BMW OF NORTH AMERICA, INC.
