61 31 255 Replacing switch for door mirror

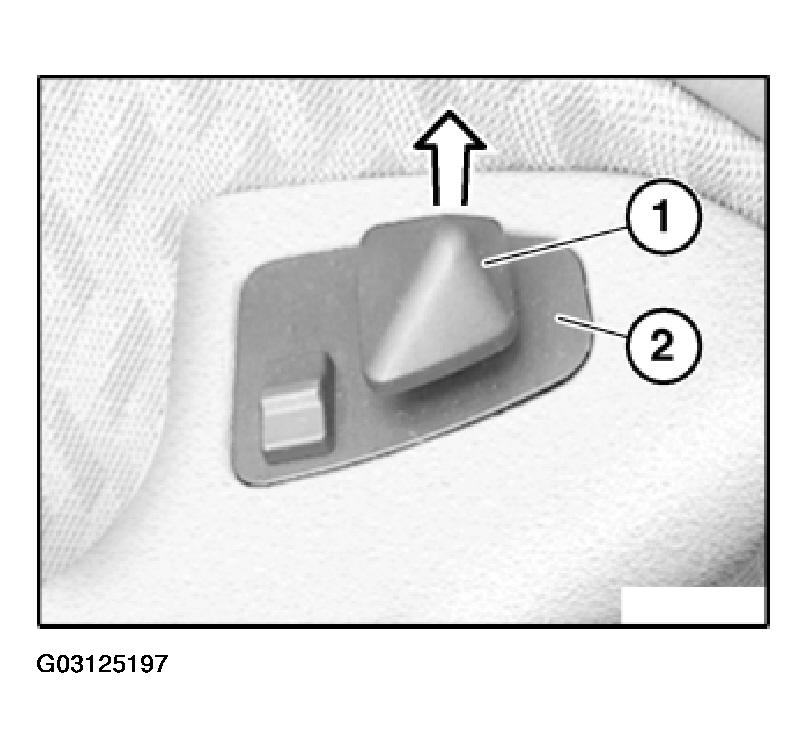

Detach control knob (1) upwards from switch for door mirror (2).

Fig 1: Detaching Control Knob

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When detaching switch for door mirror (2): Pull upwards only, do not press sideways.

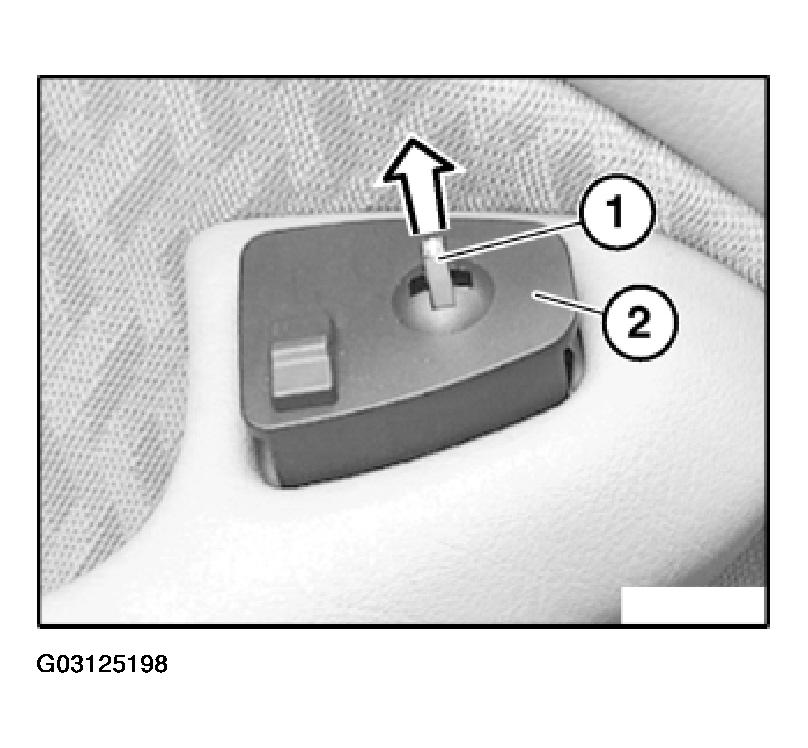

Using a pair of pointed pliers, pull door mirror switch (2) upwards slightly at rod (1) and lift out completely by hand.

Fig 2: Pulling Door Mirror Switch

Courtesy of BMW OF NORTH AMERICA, INC.

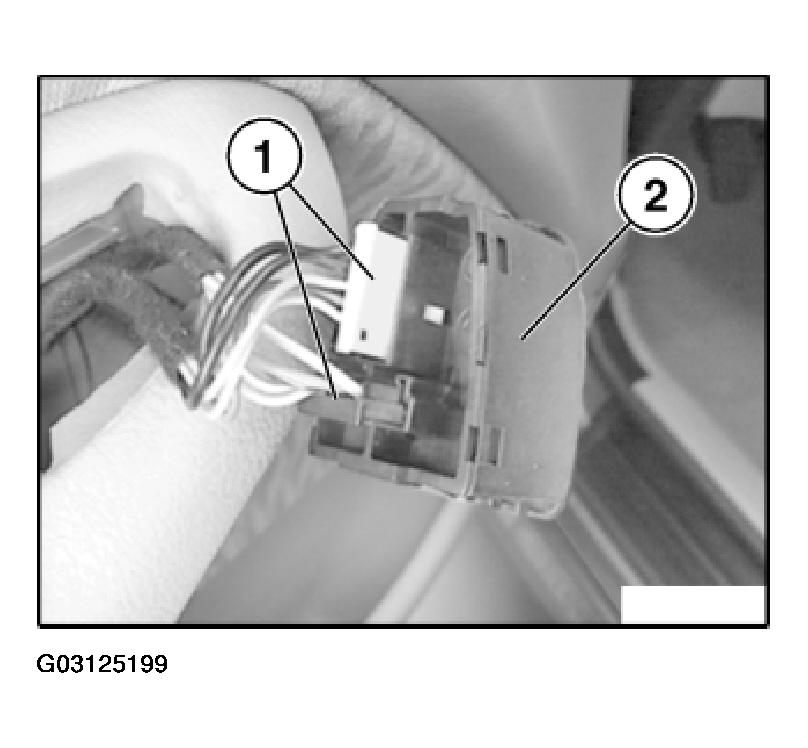

Disconnect plug connections (1) and remove switch for door mirror (2).

Fig 3: Removing Door Mirror Switch

Courtesy of BMW OF NORTH AMERICA, INC.
