51 14... Instructions for attaching number/letter designation combination: Removing:

Coat nylon string or strong yarn with tensides (e.g. washing-up liquid).

Cut through adhesive layer and remove model designation (1) from rear lid (2).

Remove remainder of adhesive layer with adhesive remover (sourcing reference: BMW Parts Service).

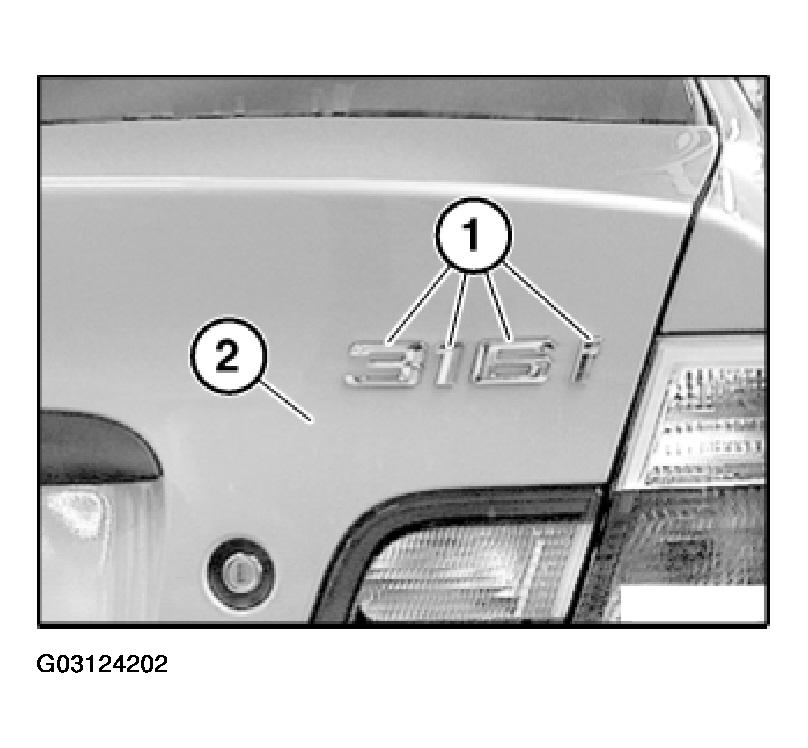

Fig 1: Removing Model Designation
G03124202Courtesy of BMW OF NORTH AMERICA, INC.
