65 52 010 Removing and installing on-board monitor

Remove center fresh air grill (with decorative strip), refer to 64 22 161 REMOVING AND INSTALLING/REPLACING CENTER FRESH AIR GRILL (HEATING) or 64 22 162 REMOVING AND INSTALLING/REPLACING CENTER FRESH AIR GRILL (AIR CONDITIONING) .

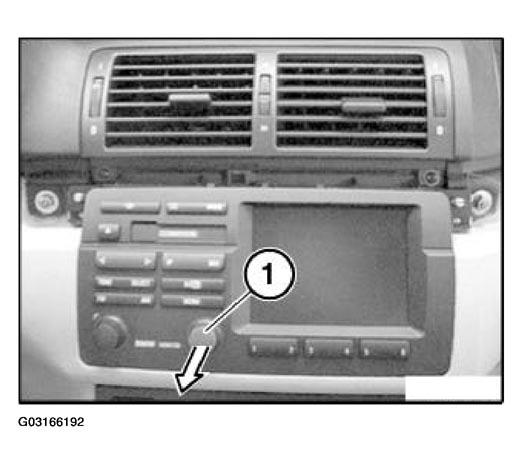

Pull off molded menu button (1) in direction of arrow.

Fig 1: Pulling Off Molded Menu Button

Courtesy of BMW OF NORTH AMERICA, INC.

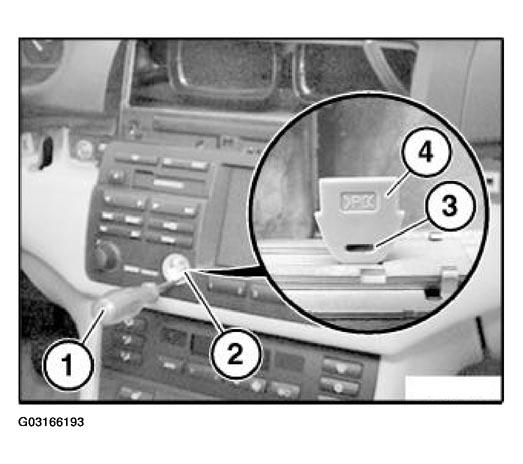

Insert screwdriver (1) in opening (3) of lock (4).

Fig 2: Inserting Screwdriver In Opening Of Lock

Courtesy of BMW OF NORTH AMERICA, INC.

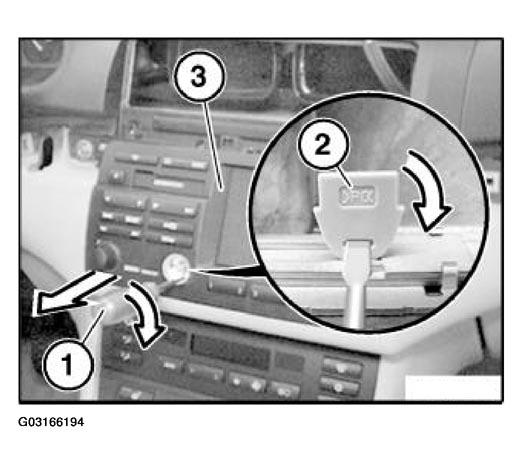

Using screwdriver (1), turn lock (2) as far as it will go in direction of arrow and pull out complete on-board monitor (3) on left towards rear.

Then, using screwdriver (1), turn lock (2) as far as it will go to left and pull out complete on-board monitor (3) on right towards rear.

Fig 3: Identifying Lock

Courtesy of BMW OF NORTH AMERICA, INC.

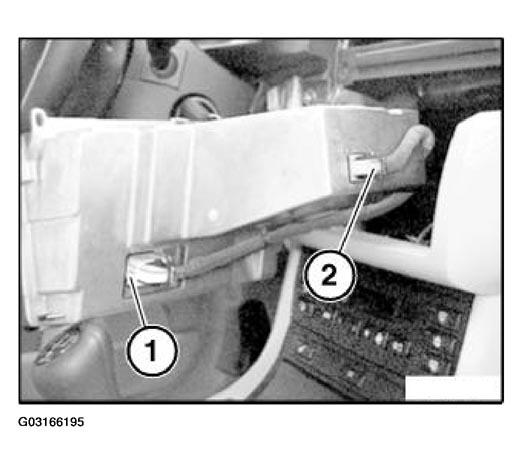

Disconnect plug connections (1) and (2) and remove complete on-board monitor.

Fig 4: Disconnecting Plug Connections (1) And (2)

Courtesy of BMW OF NORTH AMERICA, INC.
